Place of Origin:Guangdong, China (Mainland)

Brand Name:Unionwell

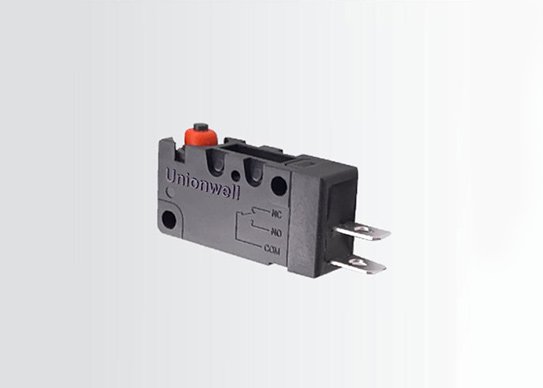

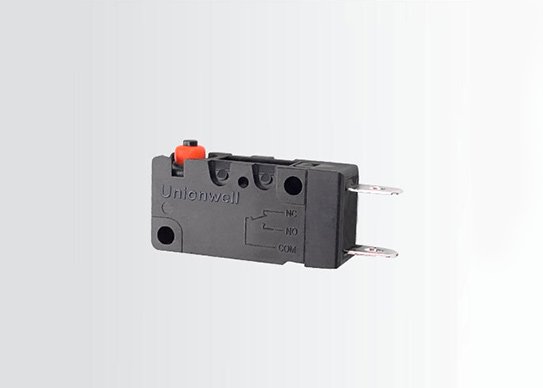

Model Number:G5W11 Series

Max Operating Force (at pin plunger):15gf/25gf/50gf/100gf/200gf

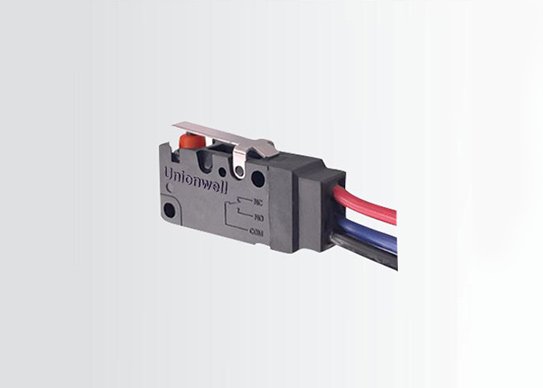

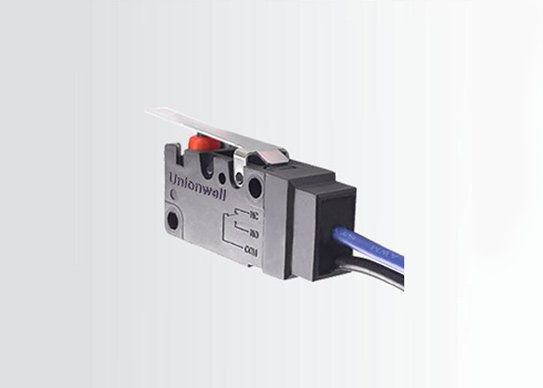

Terminal Type:Quick Connect/Lead Wires

Lever Type:Quick Connect/Lead Wires

Circuit Code:SPDT/SPST-NO/SPST-NC

Certifications:ENEC, UL/cUL, CQC

OEM/ODM:Available

Rating
W1：ENEC:0.1A,125/250VAC; 0.1A 48VDC 40T85 5E4μ
UL: 0.1A,125/250VAC; 0.1A 48VDC T85
W2：ENEC: 0.1A,125/250VAC; 5A 48VDC 40T85 5E4μ
UL: 5A 125/250VAC,5A 30VDC T85
W3：ENEC: 10(2)A 125/250VAC,0.5A 125VDC, 0. 25A 250VDC, 40T85, μ, 2E4
UL: 10.1A 1/10HP 125/25OVAC, 0.5A 125VDC, 0.25A 250VDC,T85

Operating Frequency
Electrical：10~30 cycles/minute
Mechanical：60 cycles/minute

Contact Resistance(Initiative)
with Terminals：50 mΩ Max (without wire type)
with Wires：100 mΩ Max (up to the wire length)

Insulation Resistance (at 500VDC)：100mΩ Min

Dielectric Strength
Between Terminals：AC, 1,000V 50-60Hz 1 min
Between Terminals and Housing：AC, 1,500V 50-60Hz 1 min

Operating Temperature：-40°C~+125°C

Operating Humidity：85% RH Max

Protection Level
No Lead Wires：IEC IP67(expect terminal)
with Lead Wires：1EC IP67

Protection Level Against Electric Shock：Class II

Life Expectancy
Electrical:20,000 cycles ~ 100,000 cycles (up to the model selected)
Mechanical:Over 500,000 cycles or 1,000,000 cycles (60 cycles/min)

Unit Net Weight:Approx. 7g
