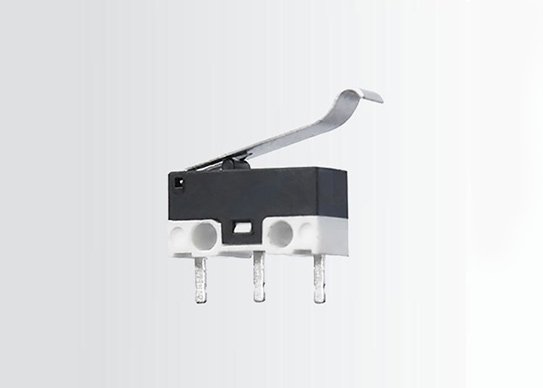

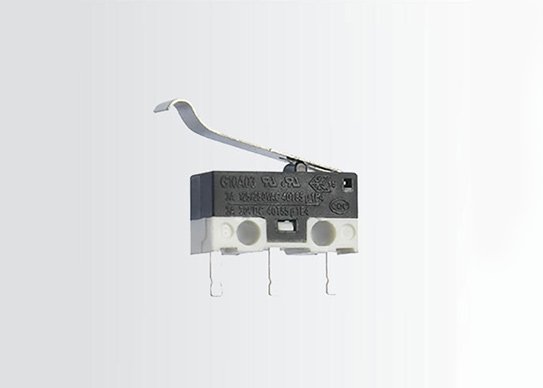

Small Micro Switch G10A

  • Considerate design in size and structure
  • Long life and high reliability
  • Multiple choices of levers and terminals
  • Mainly used in home appliances and  industry control
Inquiry
PDF download

Specifications of Small Micro Switch G10A

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:G10A Series

  • Max Operating Force (at pin plunger):150gf Max

  • Terminal Type: Mold Lead Wires/Solder/PCB

  • Lever Type:No Lever/Hinge/Leaf

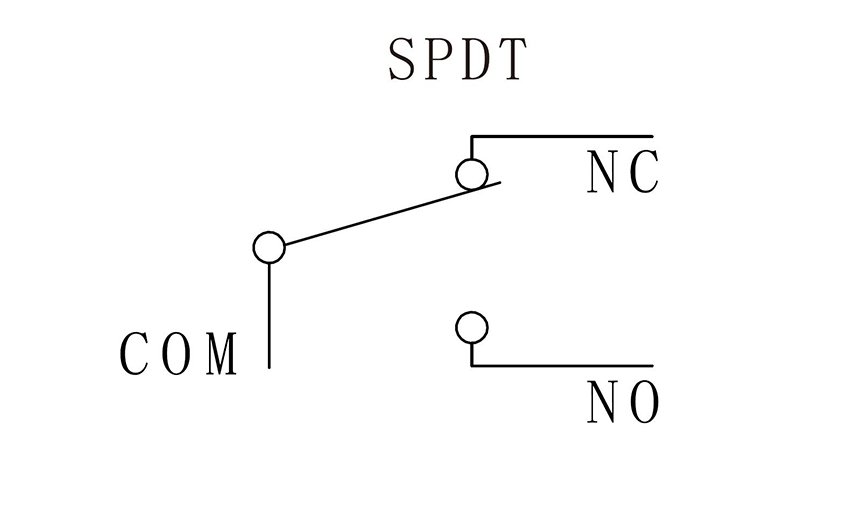

  • Circuit Code:SPDT/SPST-NO/SPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Rating
    P1:0.1A-120cycles/minute; 3A-10~30 cycles/minute
    03:120 Cycles/minute
  • Operating Frequency
    Electrical:10~30 cycles/minute
    Mechanical:120 cycles/minute
  • Contact Resistance(Initial Value):100mΩ Max (Depends on P/Ns)
  • Insulation Resistance (at 500VDC):At 500VDC, 100MΩ Min
  • Dielectric strength:AC 600V RMS (50-60HZ)
  • Storage Temperature:”-40℃-+85℃
  • Storage Humidity:85%RH Max
  • Life Expectancy
    Electrical:10,000 cycles
    Mechanical:1,000,000 cycles

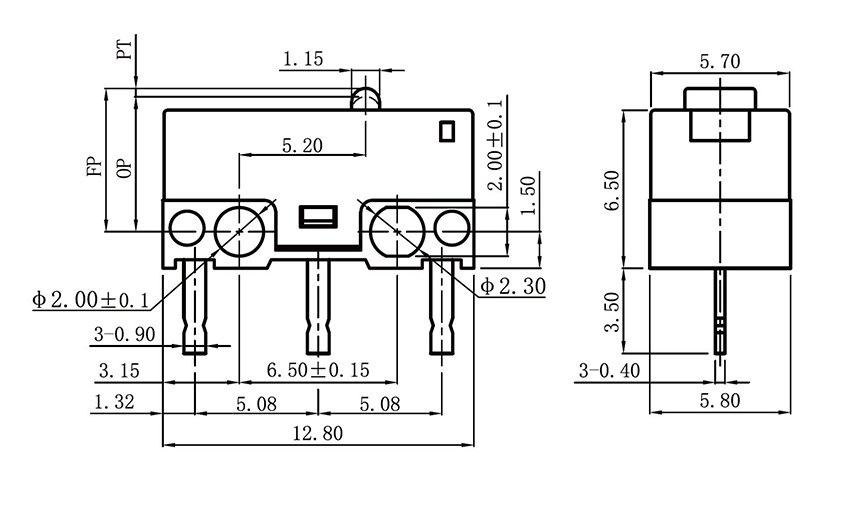

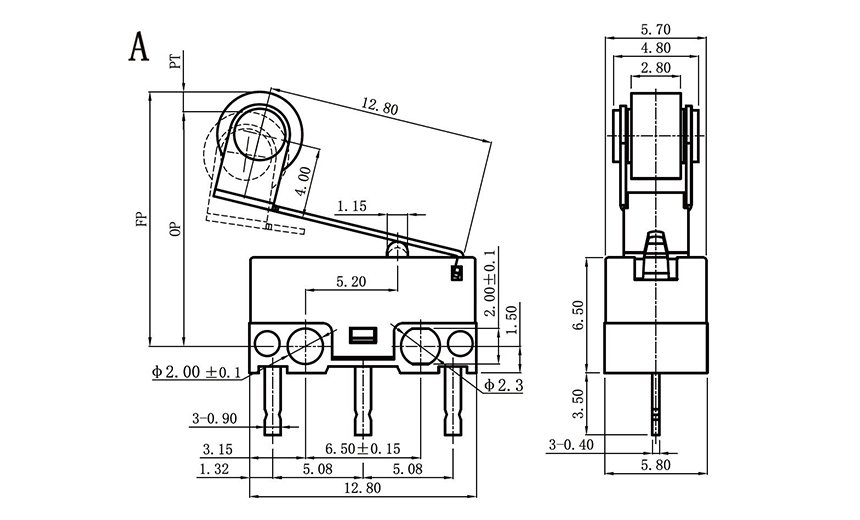

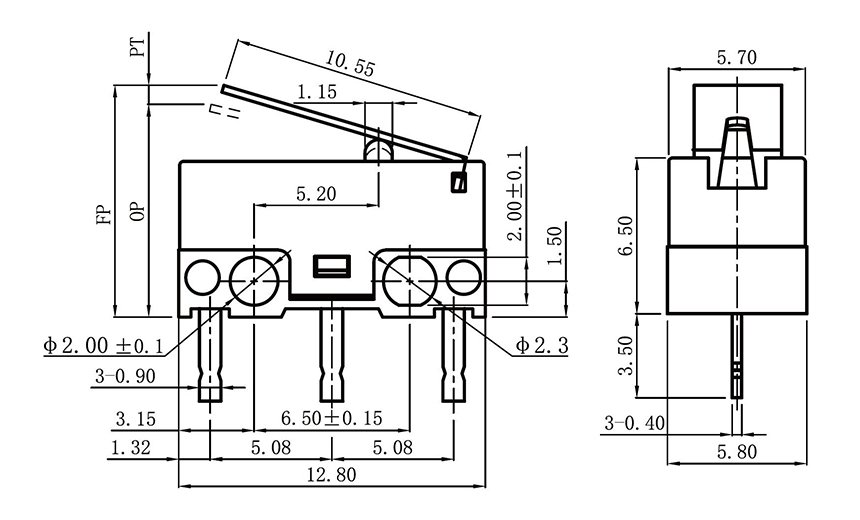

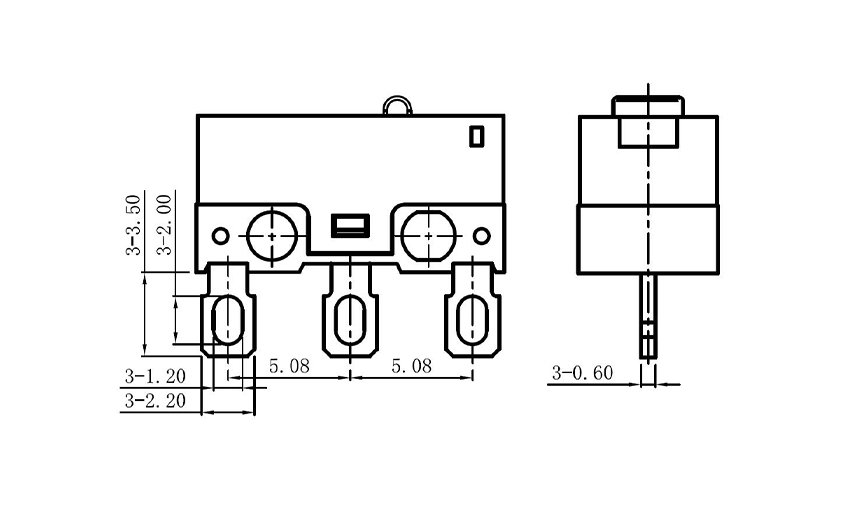

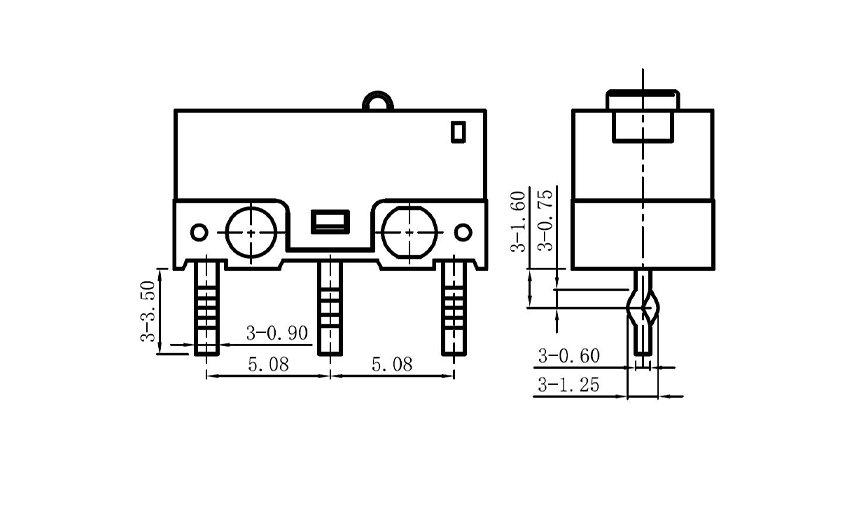

Product Drawing of Small Micro Switch G10A

Small Micro Switch G10A Related Applications
