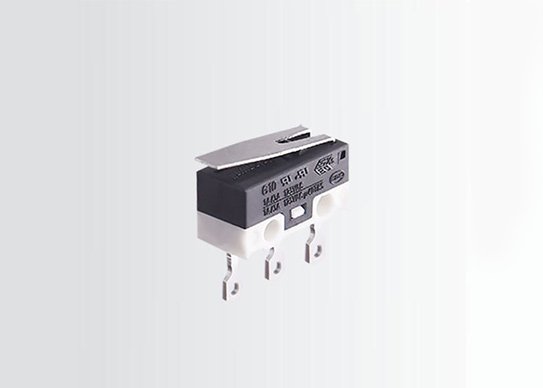

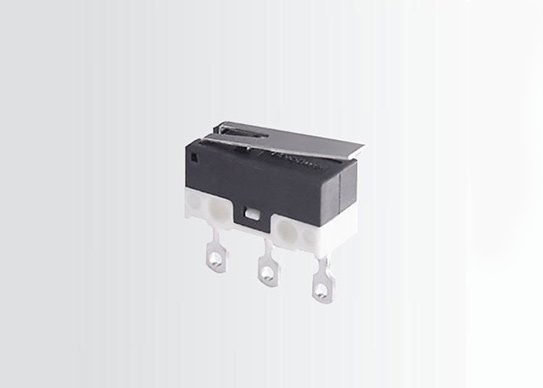

Small Micro Switch G10

  • Small size and compact structure
  • Long service life and high reliability
  • Optional levers and terminals
  • Generally applicated in home appliances, gaming control, and industry control
Inquiry
PDF download

Specifications of Small Micro Switch G10

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:G10 Series

  • Max Operating Force (at pin plunger):150gf Max

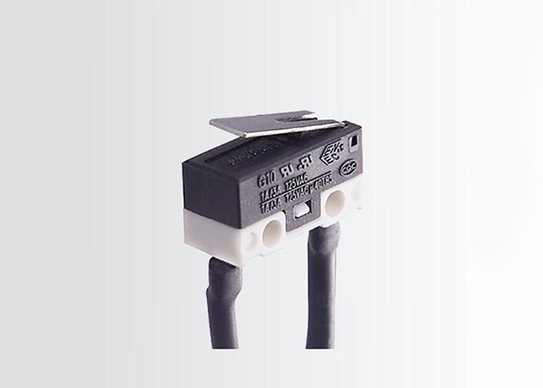

  • Terminal Type:Mold Lead Wires/Solder/PCB

  • Lever Type:No Lever/Hinge/Leaf

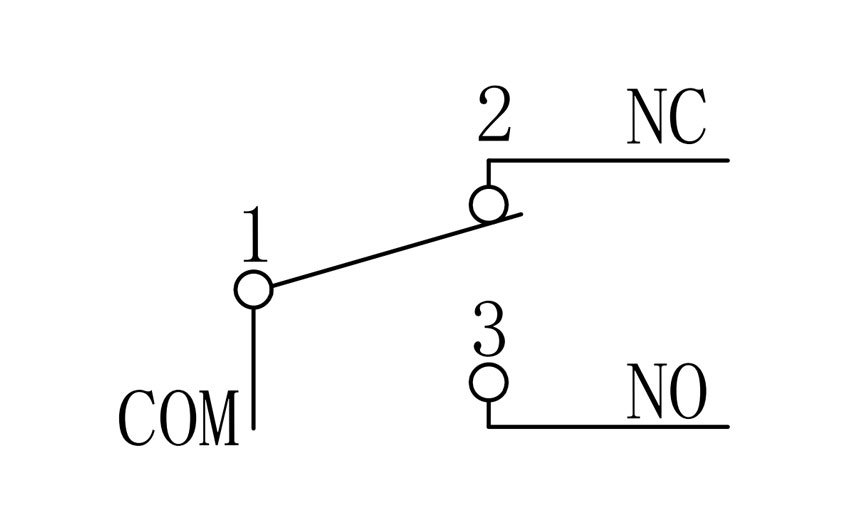

  • Circuit Code:SPDT/SPST-NO/SPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Rating
    P1:0.1A 48VDC/VAC (Gold plated optional)
    03:1A/3A 125VAC

  • Operating Frequency
    Electrical:10~30 cycles/minute
    Mechanical:120 cycles/minute

  • Contact Resistance(Initial Value):100mΩ Max (Depends on P/Ns)

  • Insulation Resistance (at 500VDC):At 500VDC,100MΩ Min

  • Dielectric strength:AC 600V RMS (50-60HZ)

  • Storage Temperature:-40℃-+85℃

  • Storage Humidity:85%RH Max

  • Life Expectancy
    Electrical:6,000~100,000 cycles (Depends on P/Ns)
    Mechanical:1,000,000 cycles (5,000,000 cycles Optional)
  • Unit Net Weight:About 0.5g (Straight PCB type without lever)

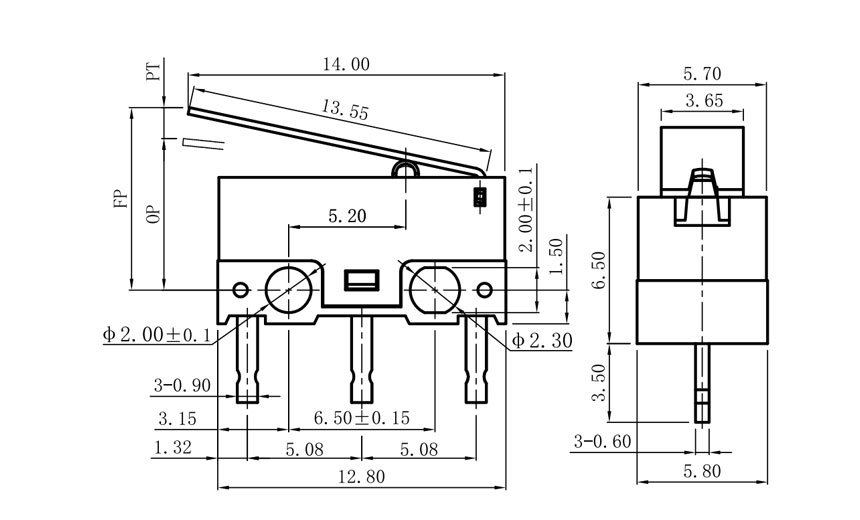

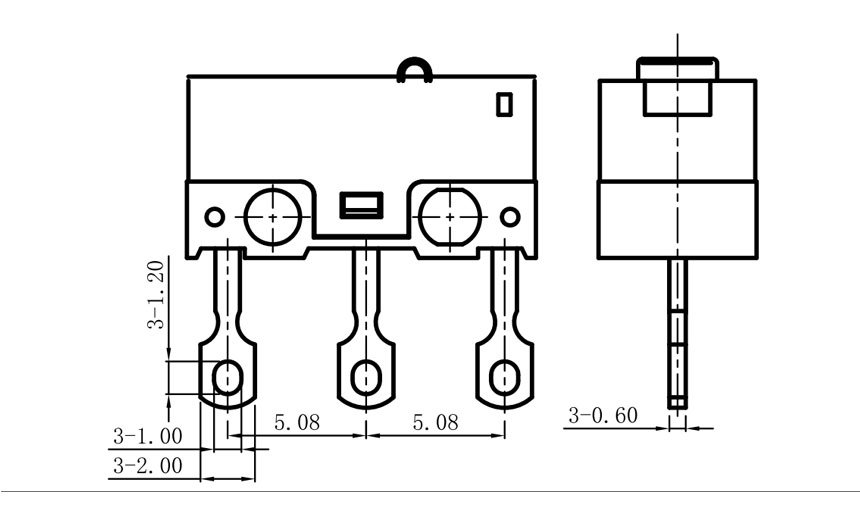

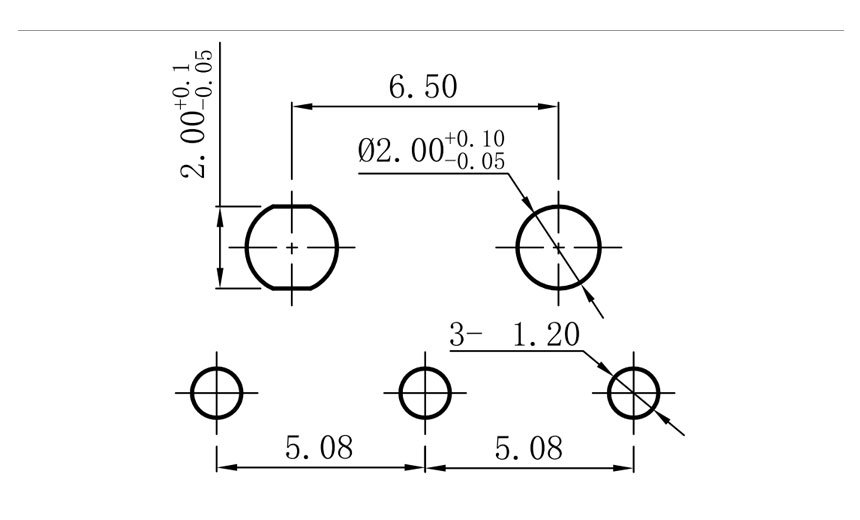

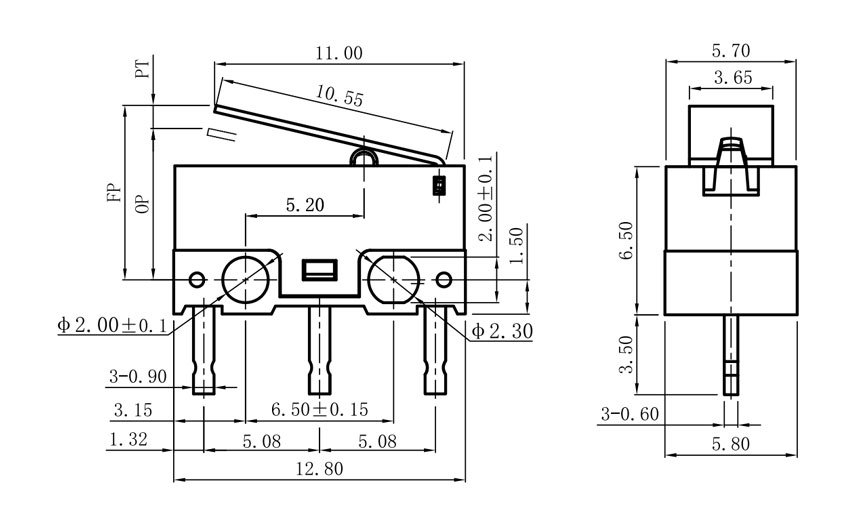

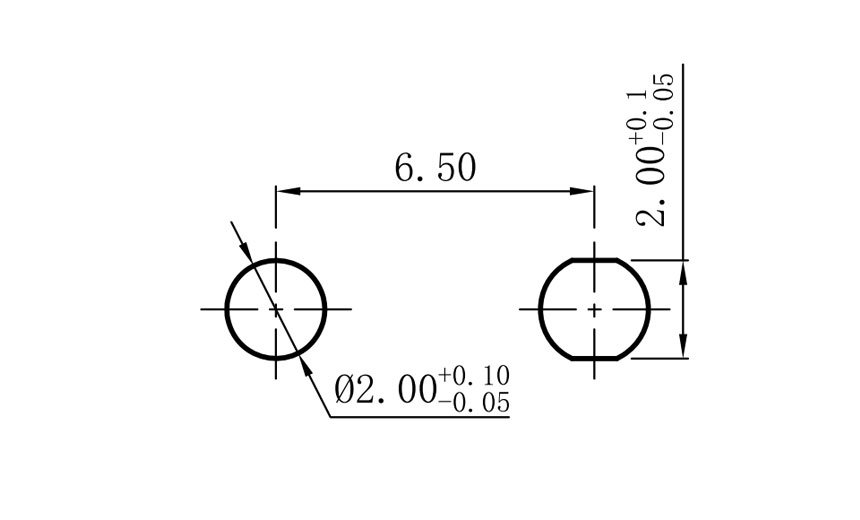

Product Drawing of Small Micro Switch G10
