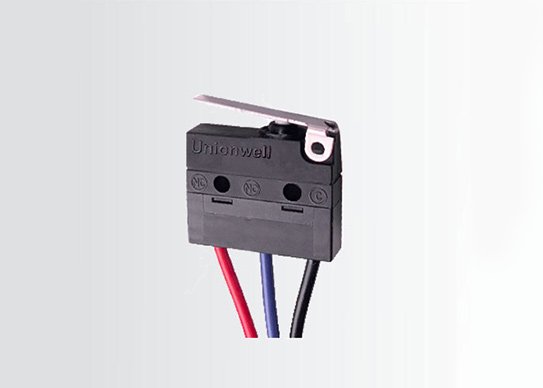

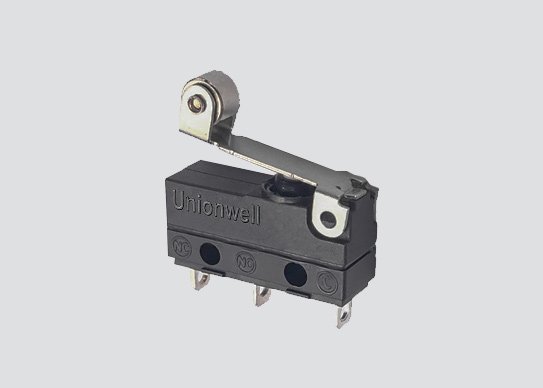

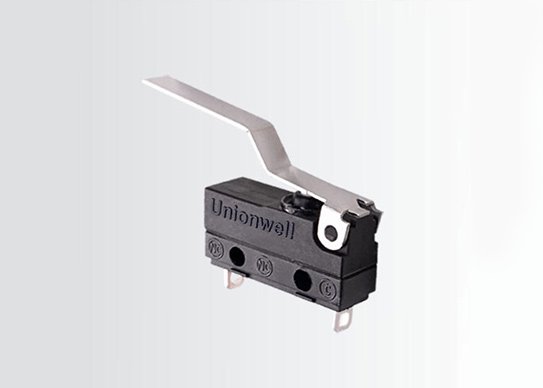

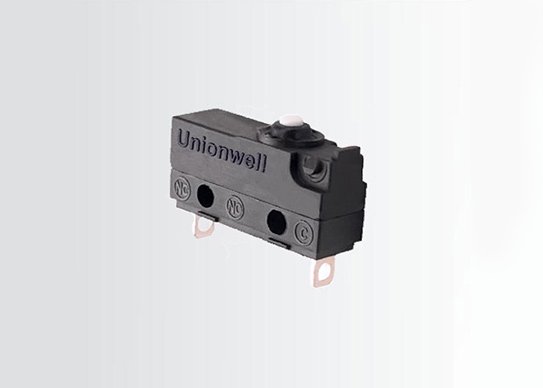

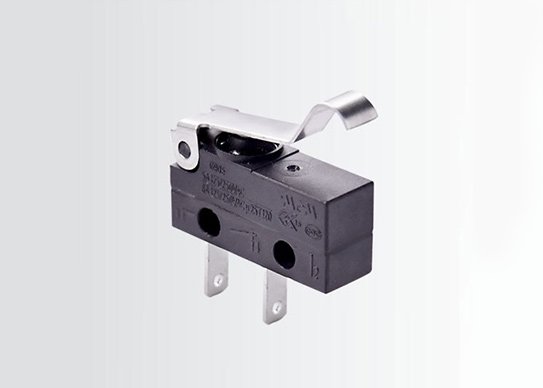

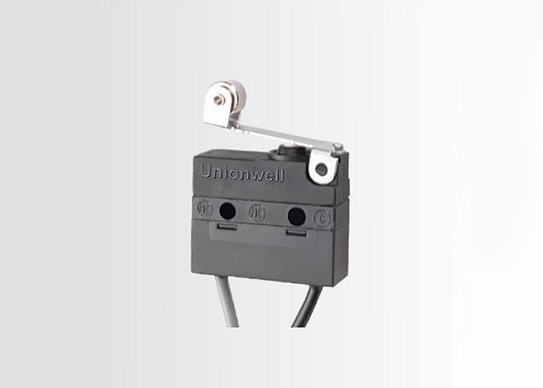

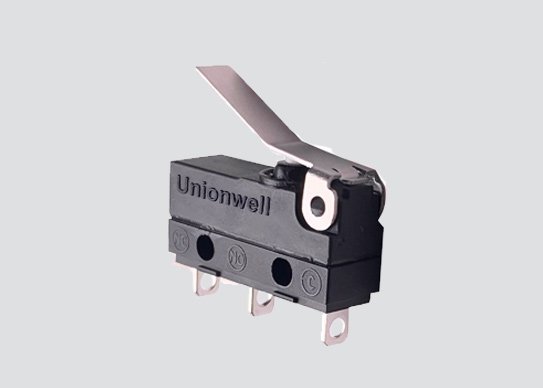

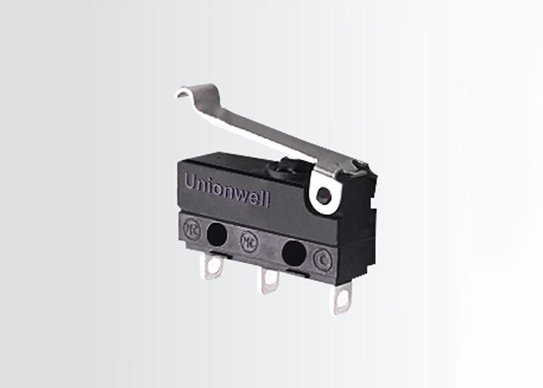

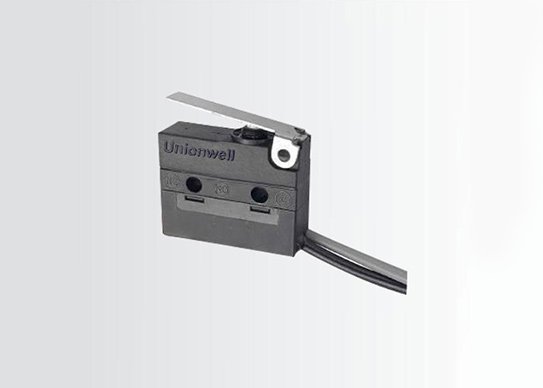

Sealed Micro Switch G9

  • Designed for water and dust-tight (IP67)
  • Small compact size
  • Long life and high reliability
  • Variety of levers and terminals
  • Widely used in auto control, appliance, and industry control
Inquiry
PDF download

Specifications of Sealed Micro Switch G9

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:G9 Series

  • Operation Force: 50gf/200gf/300gf
  • Terminal Type: Solder/PCB/Quick Connect/Lead Wires
  • Lever Type: No Lever/Hinge/Simulated Roller/Roller

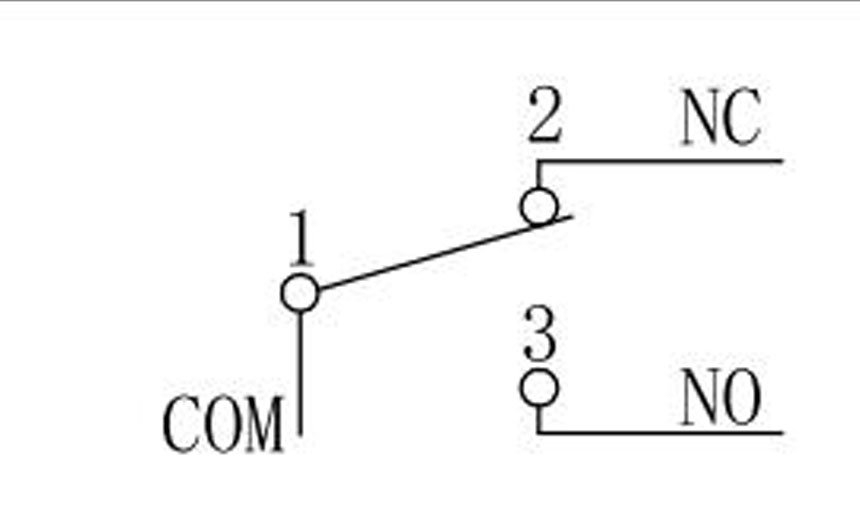

  • Circuit Code: SPDT/SPST-NO/SPST-NC
  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Rating
    P1: 0.1A,125/250V 48VDC
    Gold Plated Contact Optional
    05:UL: 5A 125/250VAC
    ENEC: 6A 125/250VAC 1E4; 3A 125/250VAC 30VDC 5E4 μ25T120
  • Operating Frequency
    Electrical: 10~30 cycles/minute
    Mechanical: 120 cycles/minute
  • Contact Resistance(Initiative): 100mΩ Max (without wire type)
  • Insulation Resistance (at 500VDC): 100mΩ Min
  • Dielectric strength: AC, 1,000RMS(50-60Hz)

  • Operating Temperature:-25°C~+120°C

  • Operating Humidity: 85% RH Max
  • Life Expectancy
    Electrical: 10,000-10,000 cycles (depending on specific model selection)
    Mechanical: 500,000 cycles

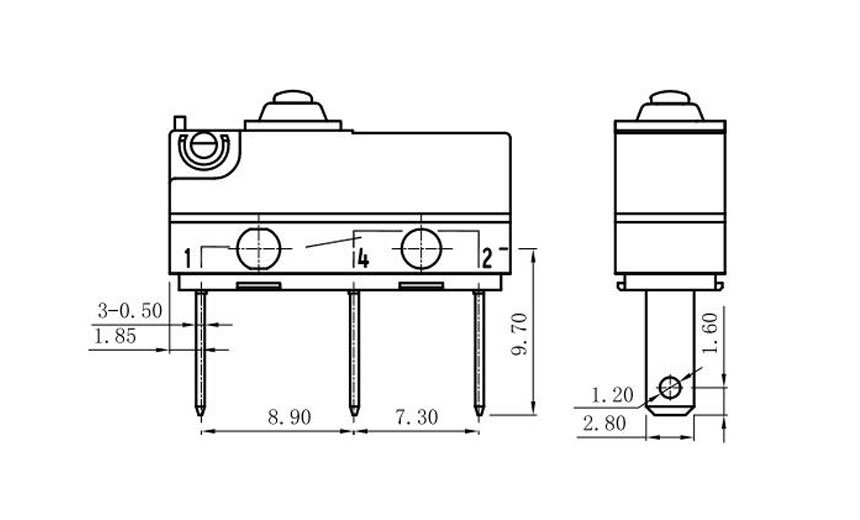

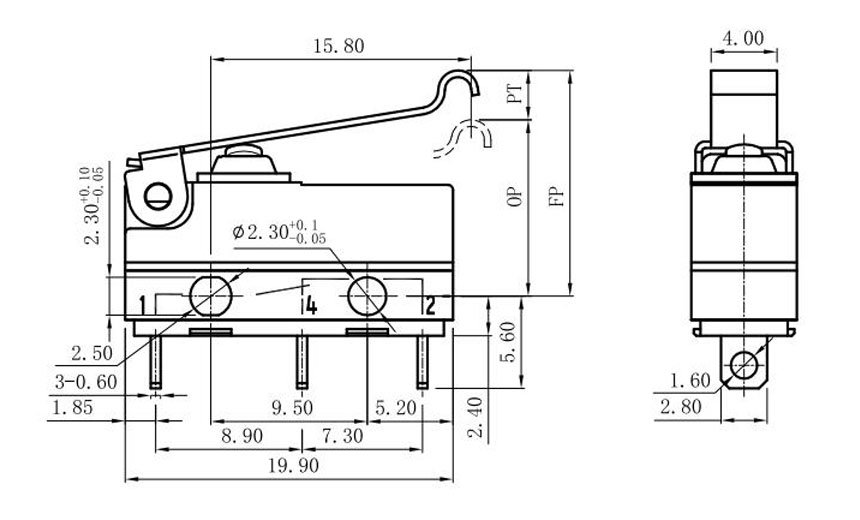

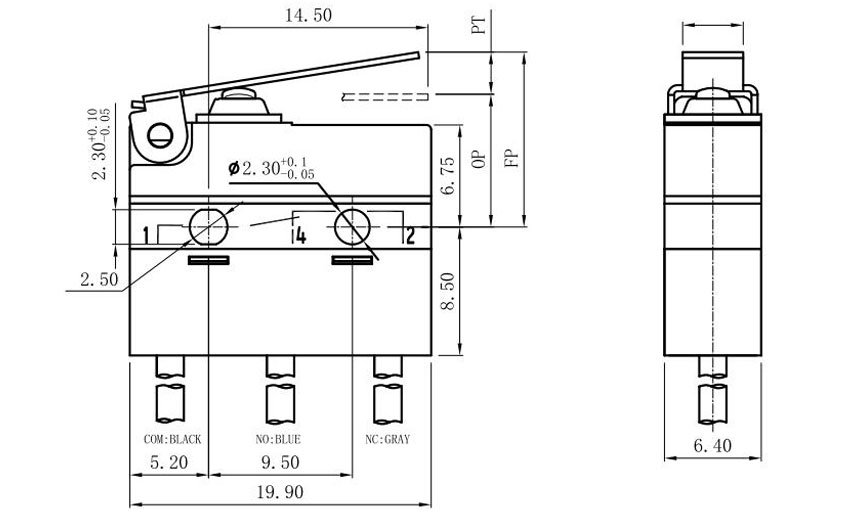

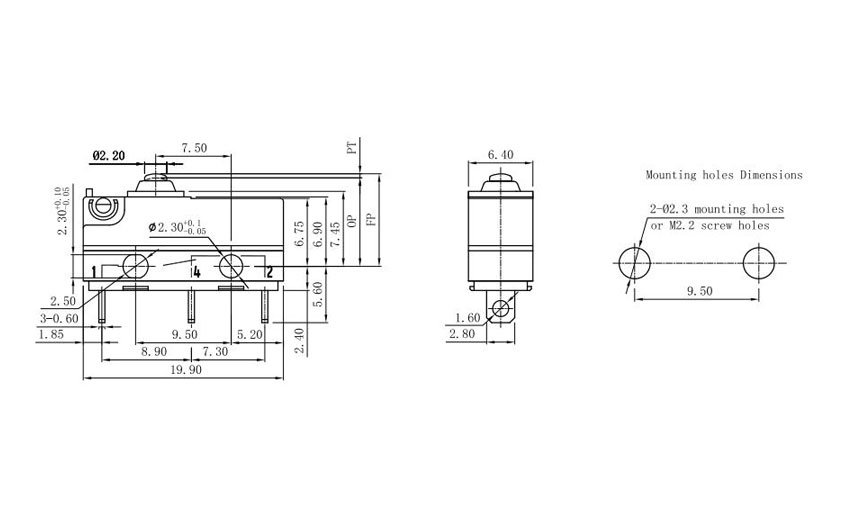

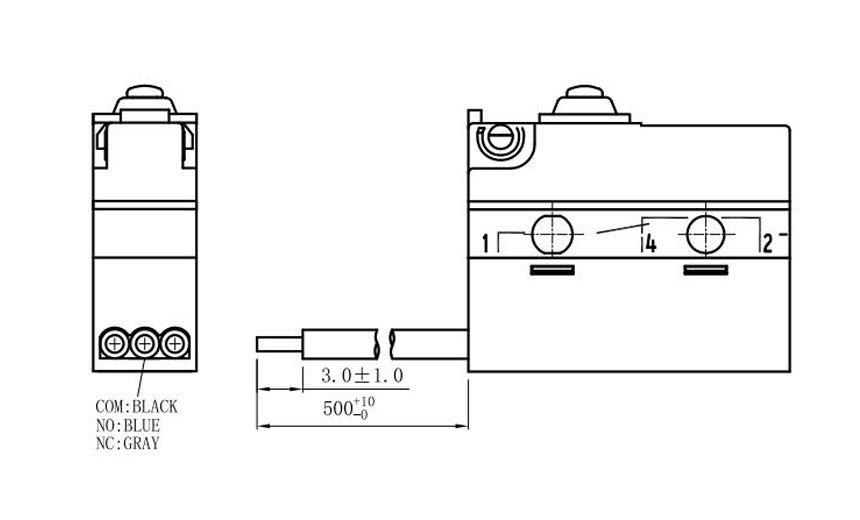

Product Drawing of Sealed Micro Switch G9

Sealed Micro Switch G9 Related Applications
