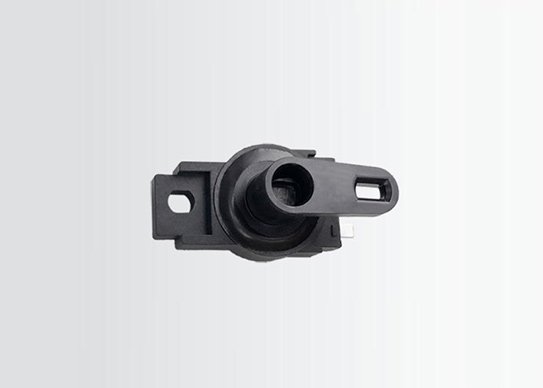

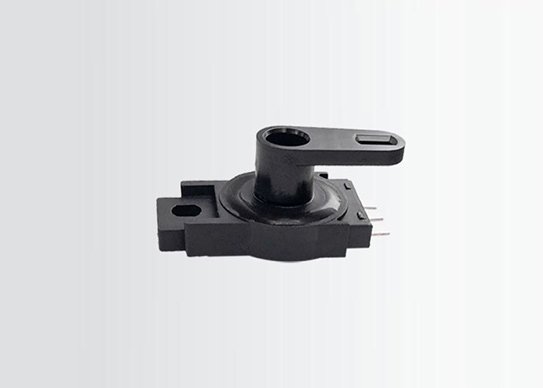

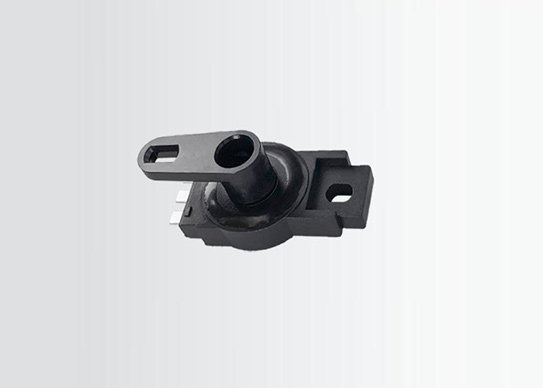

Rotary Micro Switch G2

  • IP64 level waterproof design
  • Small Compact Size
  • Long Life and High Reliability
  • Widely used in automotive electronics, home appliances, industrial control, etc.
Inquiry
PDF download

Specifications of Rotary Micro Switch G2

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:G2

  • Operating Frequency
    Electrical:10~30 cycles/minute
    Mechanical:120 cycles/minute
  • Contact Resistance (Initial Value):100mΩ Max.
  • Insulation Resistance (at 500VDC):100mΩ Min.
  • Vibration Durability:10～55Hz, move 0.75mm (p-p)
  • Dielectric Strength:500VAC (50~60Hz)
  • Storage Temperature:-30°C～+85°C
  • Storage Humidity:85%RH MAX.
  • Service Life
    Electrical:100,o00 cycles
    Mechanical:100,000 cycles Min.

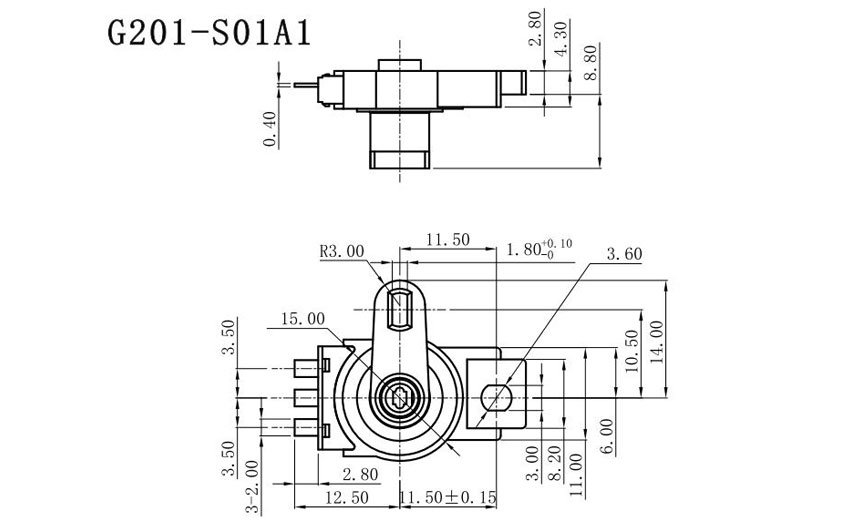

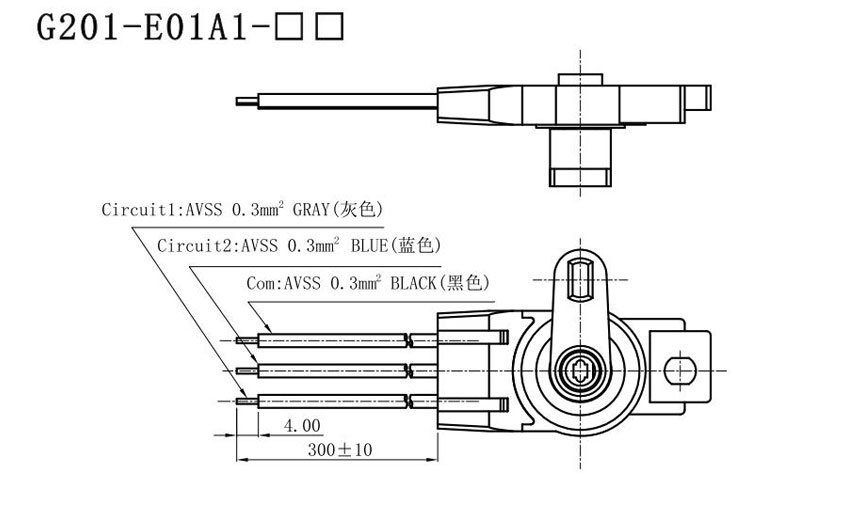

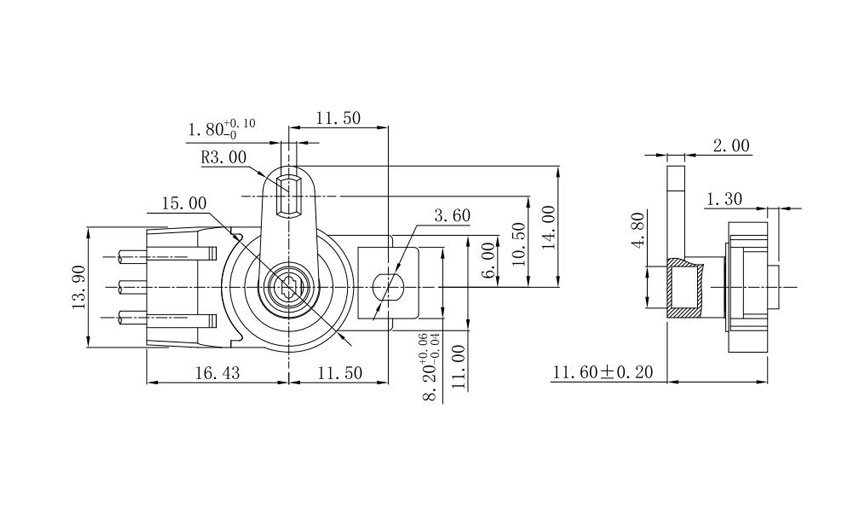

Product Drawing of Rotary Micro Switch G2
