Place of Origin:Guangdong, China (Mainland)
- Brand Name:Unionwell

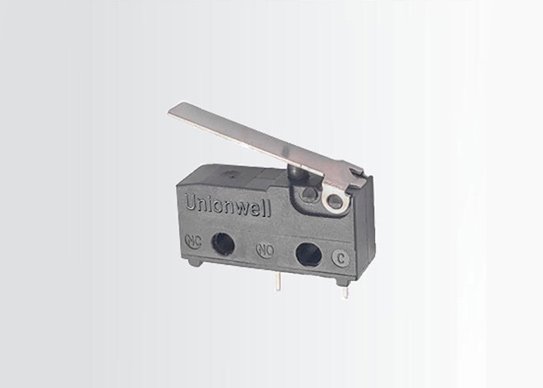

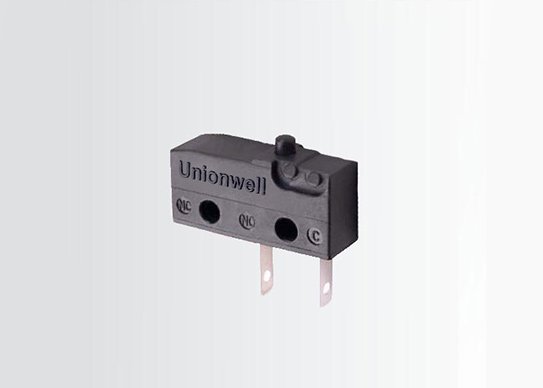

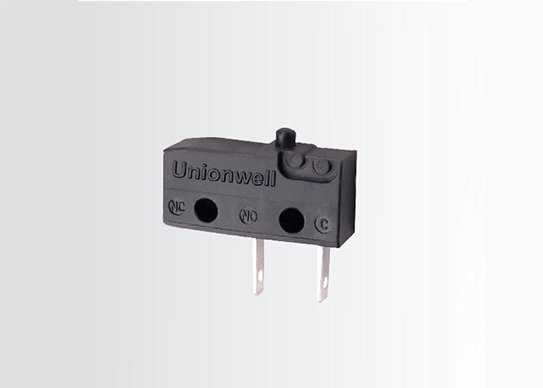

- Model Number: Refrigerator Micro Switch G91P1
Operation Force:100gf/150gf/250gf/300gf
- Terminal Type:Solder/PCB/Quick Connect

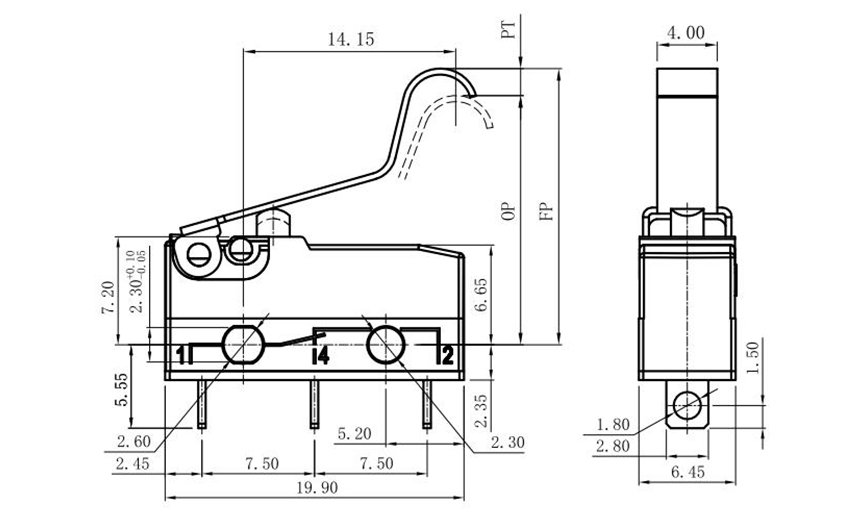

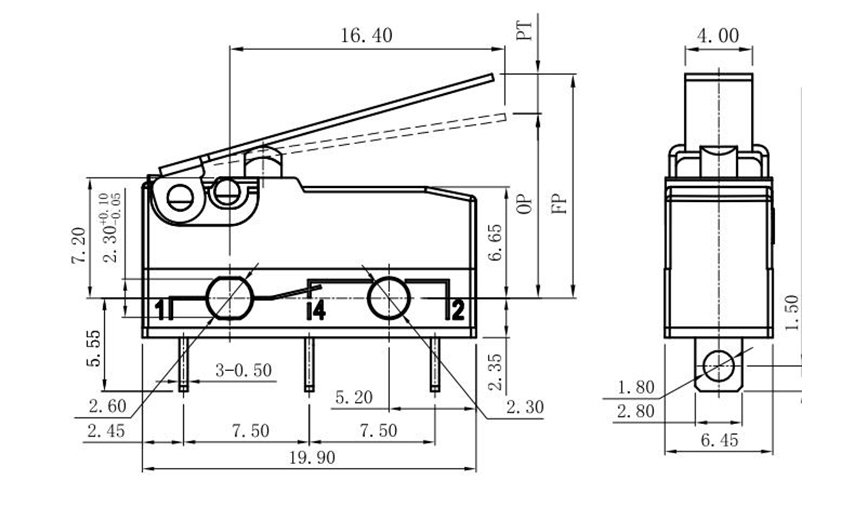

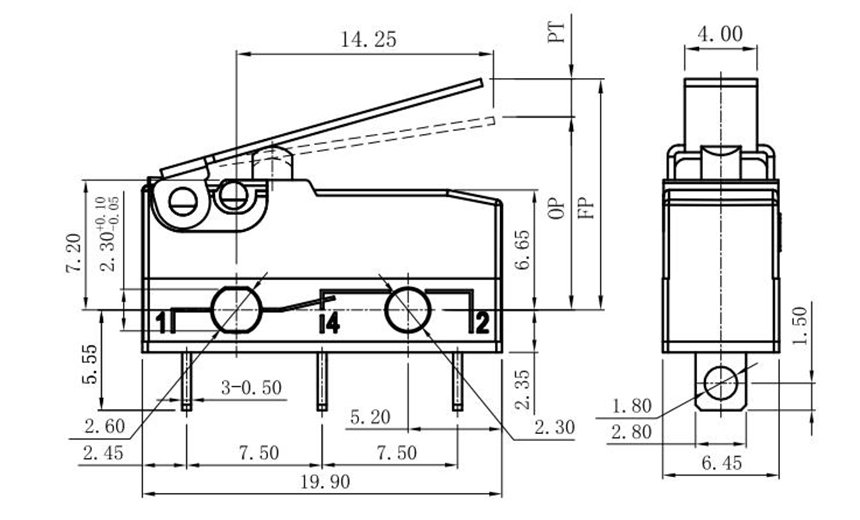

- Lever Type:No Lever/Pin Plunger/Cambered Surface/Straight/Simulated Roller/Roller
- Circuit Code:SPDT/SPST-NO/SPST-NC
- Certifications:ENEC, UL/cUL, CQC
OEM/ODM:Available
- Rating
P1:0.1A,125/250V 48VDC Gold Plated Contact Optional
05:ENEC: 5A 125/250VAC; 5A 1/8HP, 125/250VAC
10:ENEC: 10 (1.5A) 125/250VAC;UL:10A 1/4HP 125/250VAC - Operating Frequency
Electrical:10~30 cycles/minute
Mechanical:120 cycles/minute - Contact Resistance(Initiative):100mΩ Max
- Insulation Resistance (at 500VDC):100mΩ Min
- Dielectric strength:AC, 1,000RMS (50-60Hz)
- Operating Temperature:-40°C~+125°C or -40°C~+85°C
- Operating Humidity:85% RH Max
- Life Expectancy
Electrical:10,000-100,000 cycles (depending on specific model selection)
Mechanical:500,000 cycles
