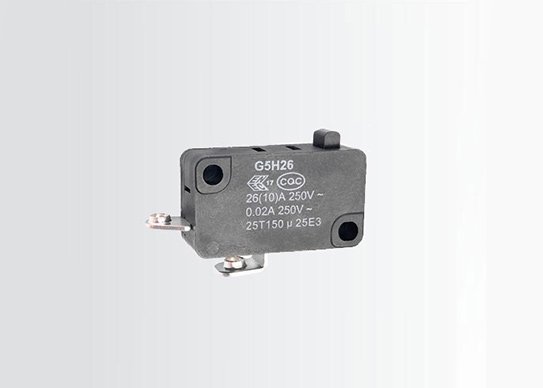

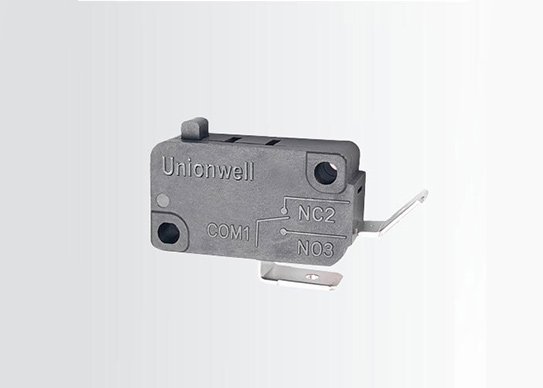

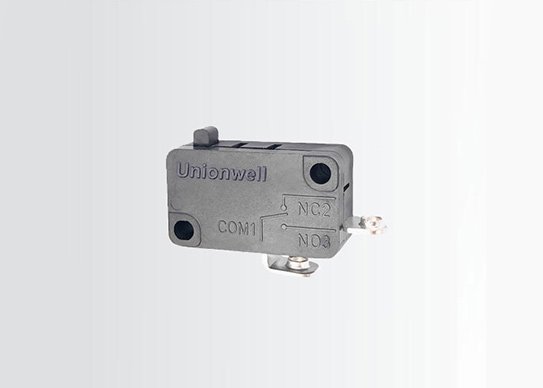

Oven Micro Switch G5H26

  • Tight configuration, small contact distance, snap action, high sensitivity, and short operating travel

  • Long life, high reliability

  • Global safety approvals

  • Variety of terminals.

  • Optional operating force varies from 100gf to 400gf

  • Wide range of operating temperatures (-25° C~+150° C)

  • With optional PT I grades (175V, 250V, 600V)

  • Variety of levers

  • Customized design with high-temperature grade to be used in electric ovens.

Inquiry

Specifications of Oven Micro Switch G5H26

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:Oven Micro Switch G5H26

  • Max Operating Force (at pin plunger):100gf/200gf/300gf/400gf

  • Operating Temperature:-25°C~+150°C
  • Terminal Type:Quick Connect/PCB/Solder/Screw/Rast-5/Rast-2.5
  • Lever Type:No Lever/Hinge/Simulated Roller/Roller/Special

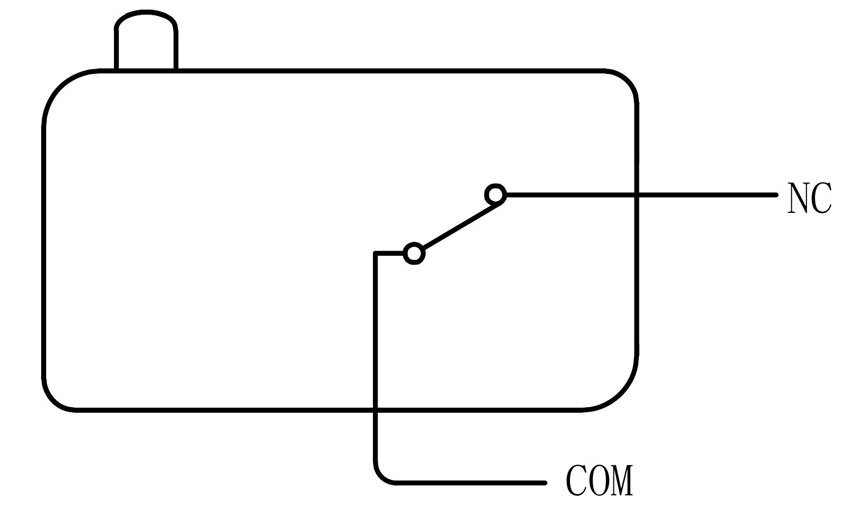

  • Circuit Code:SPDT/SPST-NO/SPST-NC
  • Certifications:ENEC, UL/cUL, CQC
  • OEM/ODM:Available
  • Operating Linear Speed:0.1~1m/s (up to the actuating method)
  • Operating Frequency:Mechanical 60 cycles/min; Electrical 15 cycles/min
  • Insulation Resistance:≥100MΩ（500 VDC）
  • Contact Resistance (Initial Value):≤100mΩ
  • Voltage Resistance
    between terminals:AC1000V,50/60Hz,1min.
    Between electrified metal parts and housing, and between terminals and unelectrified metal parts:AC1500V,50/60Hz,1min.
  • Vibration Durability:10-55Hz Double amplitude 1.5mm
  • Shock Resistance
    Destruction: OF＞1.0N: 1000m/s2 (approx. 100G) max.
    OF≤1.0N: 400m/s2 (approx. 40G) max.
    Destruction: OF＞1.0N: 200m/s2 (approx. 20G) max.
    OF≤1.0N: 100m/s2 (approx. 10G) max.
  • Service Life
    Mechanical:≥ 10,000,000 cycles or 1,000,000 cycles
    Electrical:≥50,000 cycles or 100,000 cycles
  • Unit Net Weight:Approx. 6.2g (No Lever)

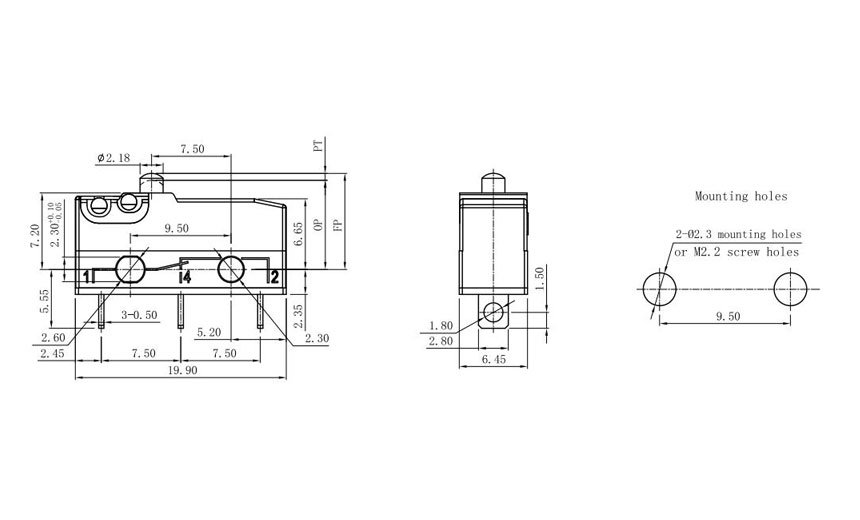

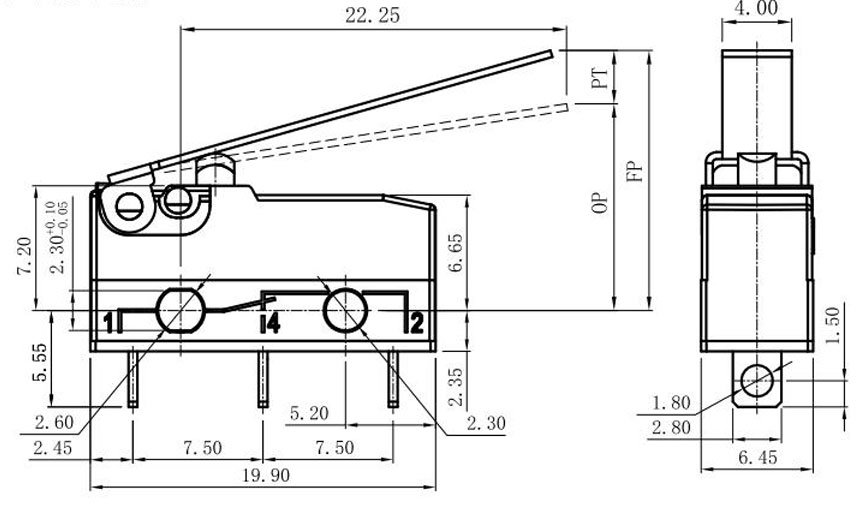

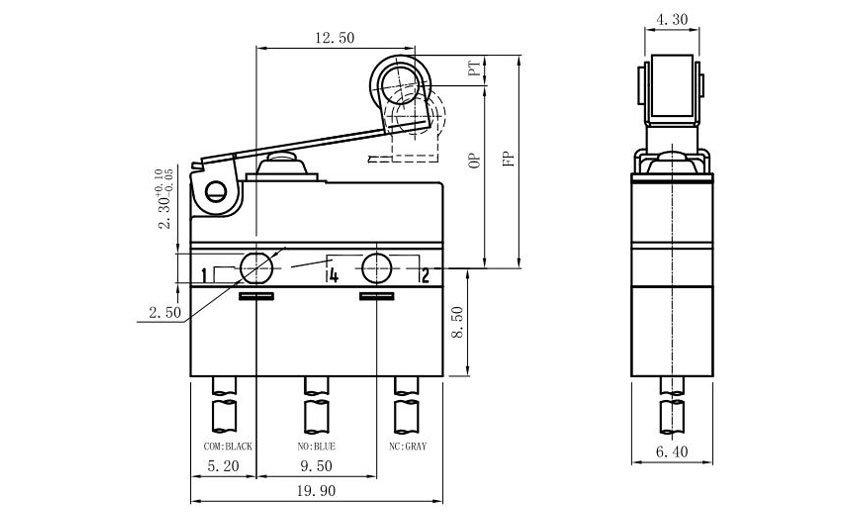

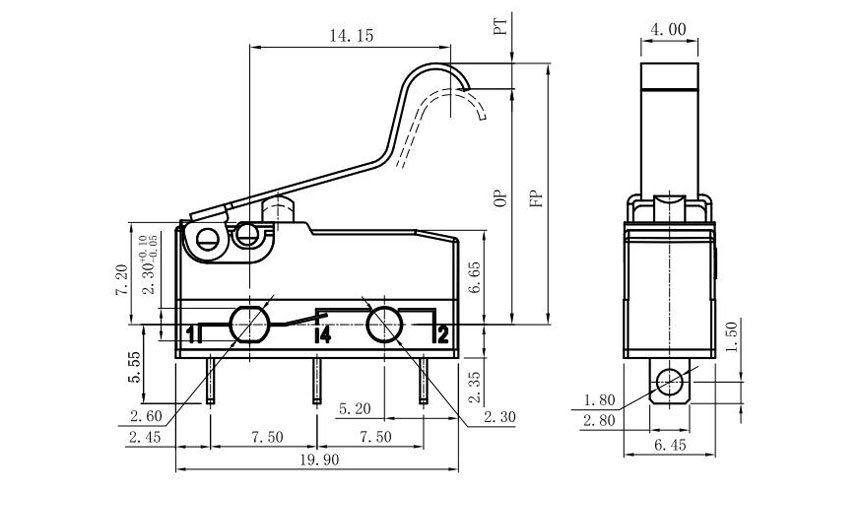

Product Drawing of Oven Micro Switch G5H26

Oven Micro Switch G5H26 Related Applications
