Non Sealed Door Micro Switch SWD01B/SWD06B

  • Fully sealed, explosion-proof with ATEX certification
  • Two options of electrical load–high current load for light control, and signal current load for signal control.
  • Universal quick installation setting
  • Various shapes of operation buttons
  • Widely used in refrigeration appliances and equipment such as heat pumps, air conditioners, dehumidifiers, refrigerators, etc.
Inquiry

Specifications of Non-Sealed Door Switch SWD01B/SWD06B

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:SWD01B/ SWD06B

  • Max Operating Force (at pin plunger):150gf/Others

  • Terminal Type:Wires/Solder/PCB/Others

  • Lever Type:No Lever/Leaf Lever/Hinge Lever/Simulated Roller

  • Circuit Code:SPDT/SPST-NO/SPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Operating Linear Speed:7.5~500mm/s
  • Operating Frequency
    Mechanical:60 cycles/min
    Electrical:20 cycles/min

  • Insulation Resistance:≥100MΩ (500VDC Insulation Resistance Meter)

  • Contact Resistance (Initial Value)
    with terminals:≤100mΩ
  • Voltage Resistance
    between terminals:AC1000V, 50/60Hz, 1min.
    between terminals and unelectrified metal parts:AC1500V, 50/60Hz, 1min.
  • Vibration Durability:10-55Hz Double amplitude 1.5mm
  • Service Life
    Electrical:2.5A 125/250VAC 25T85 μ 5E4
    6A 125/250VAC 25T85 μ 1E4
    0.1A 125/250VAC 0.1A 30VDC 25T85 μ 5E4
    Mechanical:300,000 cycles (60 cycles/min)
  • ATEX Proof and Certificate Number:S 20 ATEX 107202 0001U
    3 G EX nC II C Gc
  • PTI:450V
  • Your Content Goes Here
  • Operating Temperature:-25~+85°C
  • Operating Humidity:95% RH Max

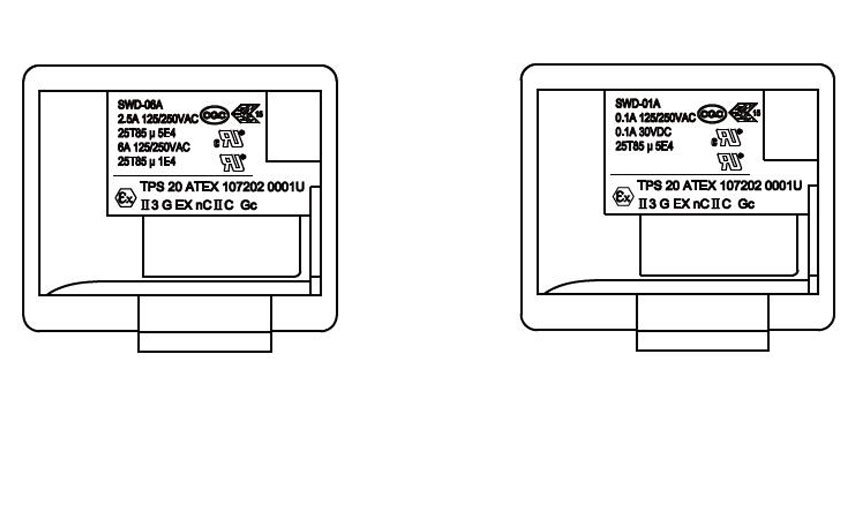

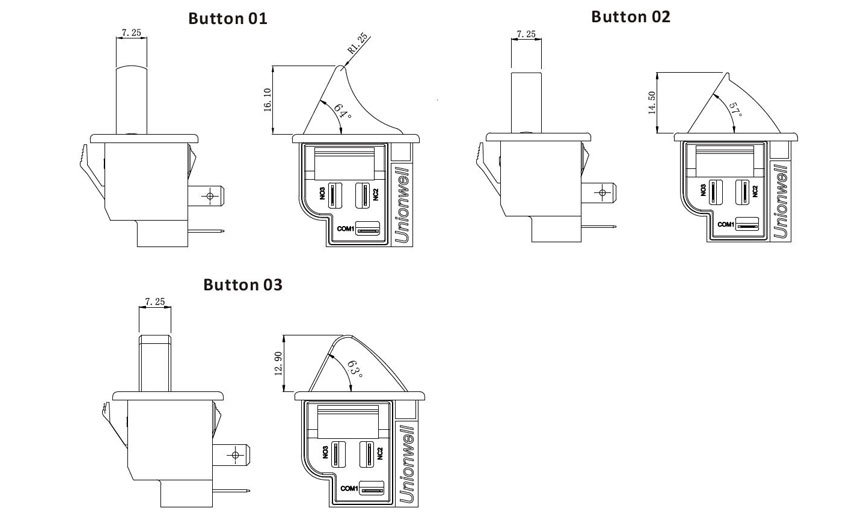

Product Drawing of Non Sealed Door Micro Switch SWD01B/SWD06B
