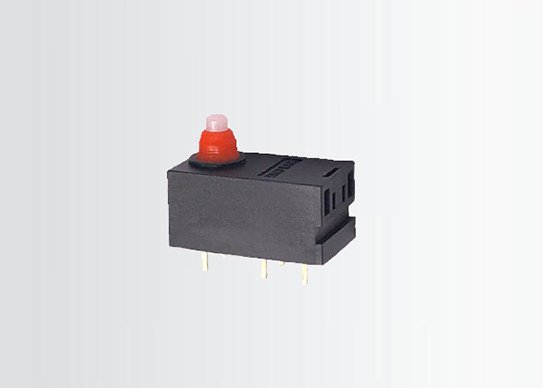

Mini Waterproof Micro Switch G307

  • Highly reliable and capable of withstanding challenging operational conditions
  • Mute structure with double sliding connections
  • With high-temperature resistance (+85 °C) and a waterproof design, it can be used in a variety of situations and provides IP67-level protection (except terminals)
  • Widely used in industrial control, household appliances, and vehicle electronics, among other things
Inquiry
PDF download

Specifications of Mini Sealed Micro Switch G307

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:G307

  • Max Operating Force (at pin plunger):80gf/150gf

  • Terminal Type:PCB/Surface Mounted Terminals

  • Lever Type:No Lever/#1 Lever

  • Circuit Code:DPDT/DPST-NO/DPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Operating Linear Speed:1~500mm/s (depending on the actuating method)

  • Operating Frequency: 120 cycles/min

  • Insulation Resistance:≥100MΩ (500VDC Insulation Resistance Meter)

  • Contact Resistance (Initial Value)
    with terminals: ≤100mΩ
    with wires: ≤500mΩ（Wire length 300mm）
  • Voltage Resistance
    between terminals:AC500V, 50/60Hz, 1min.
    between terminals and unelectrified metal parts :AC1000V, 50/60Hz, 1min.
  • Vibration Durability:10~55Hz, move 1.50mm(p-p)
  • Service Life
    Electrical:300,000cycles（20 cycles/min）0.1A 12VDC; 50μA 5VDC
    Mechanical:300,000cycles（30 cycles/min）

  • Operating Temperature:-40～+85°C

  • Operating Humidity:85%RH Max

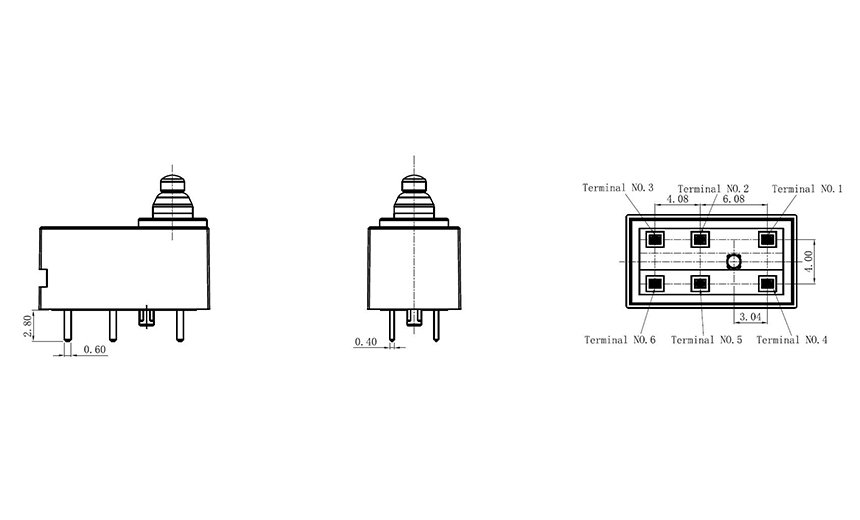

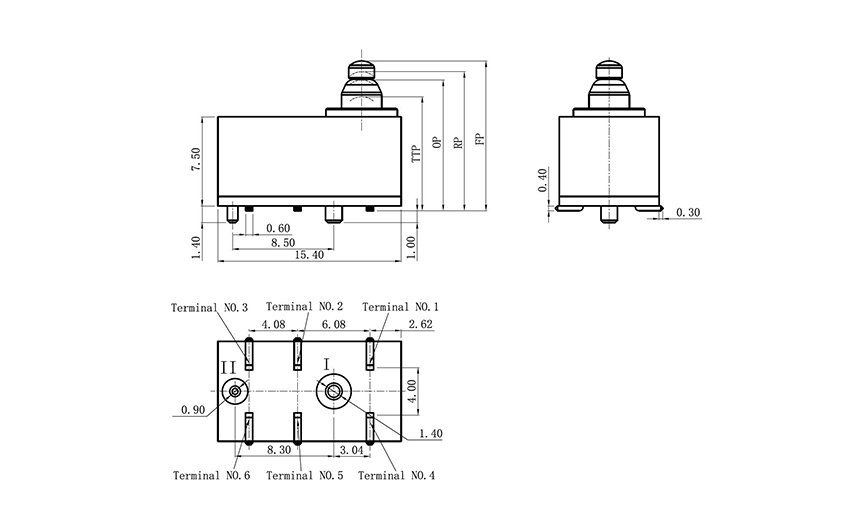

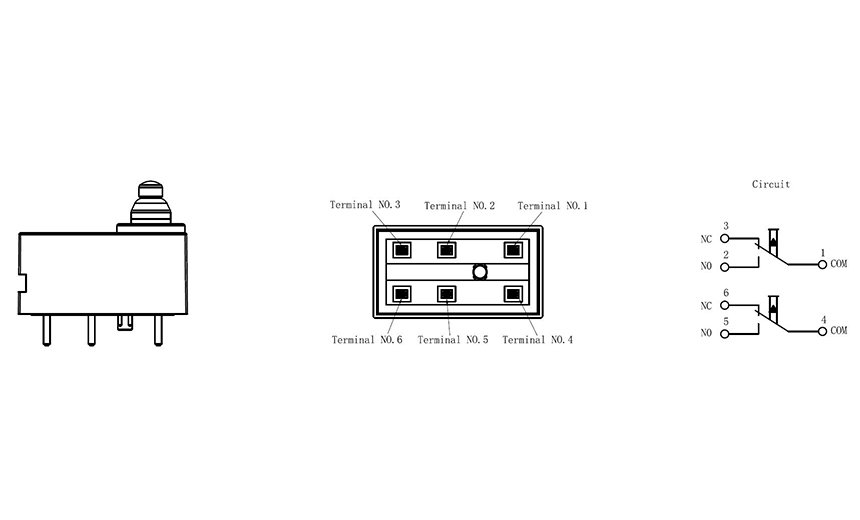

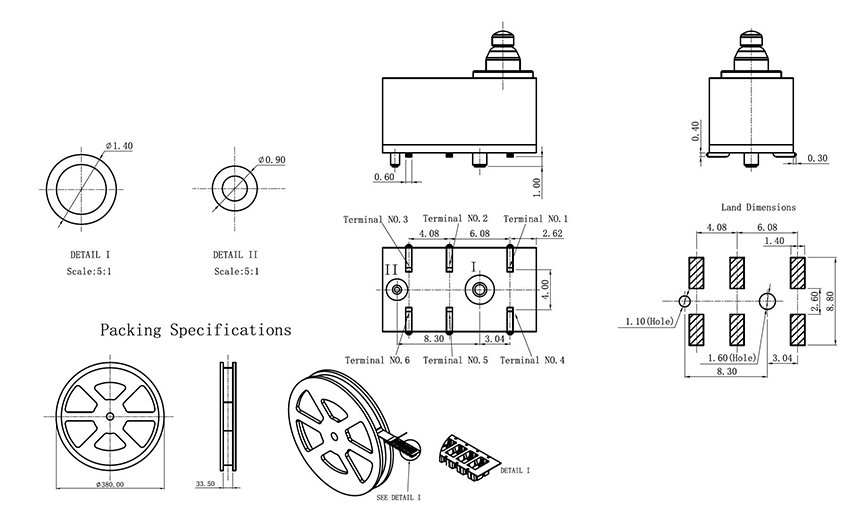

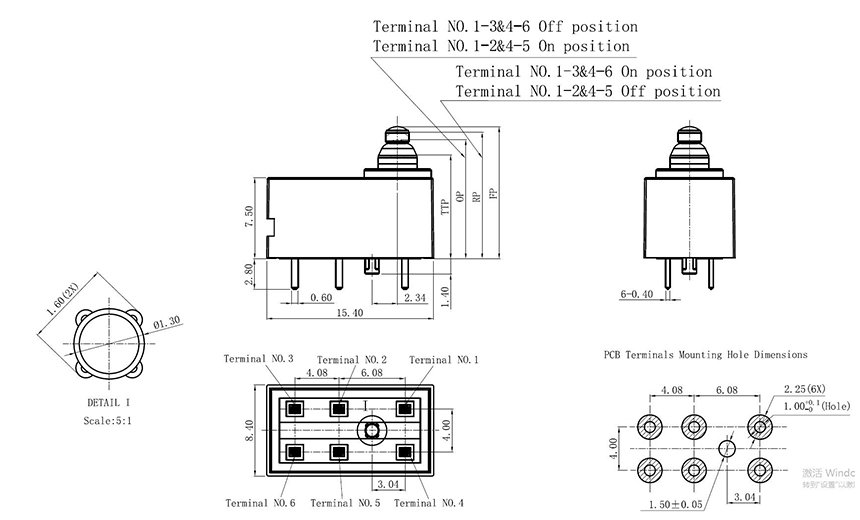

Product Drawing of Mini Waterproof Micro Switch G307
