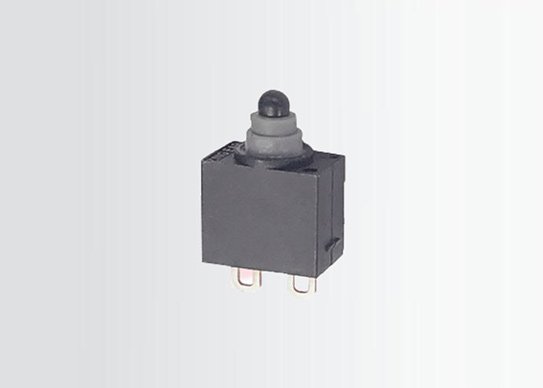

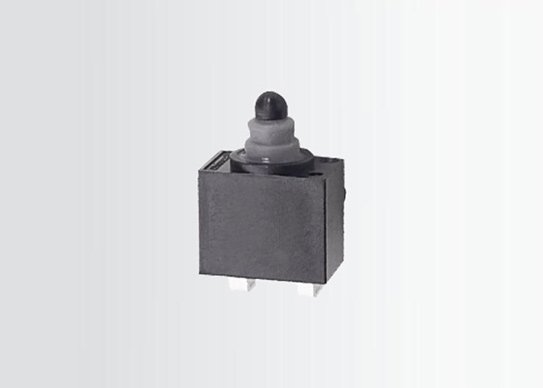

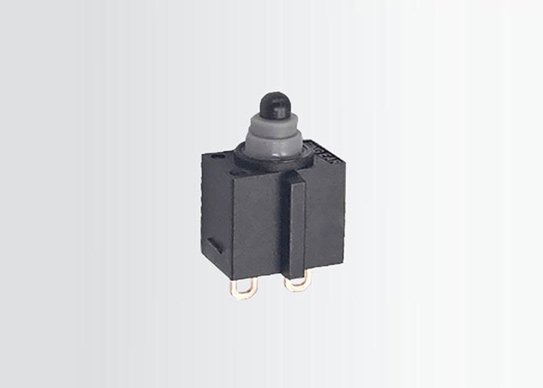

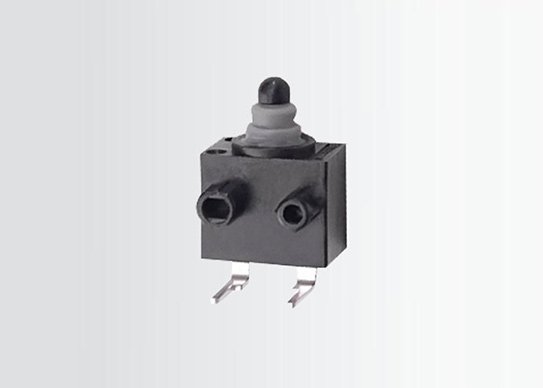

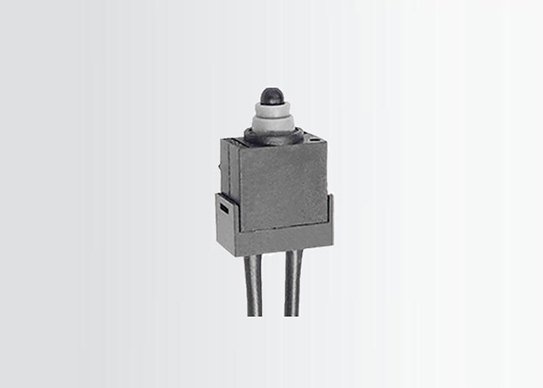

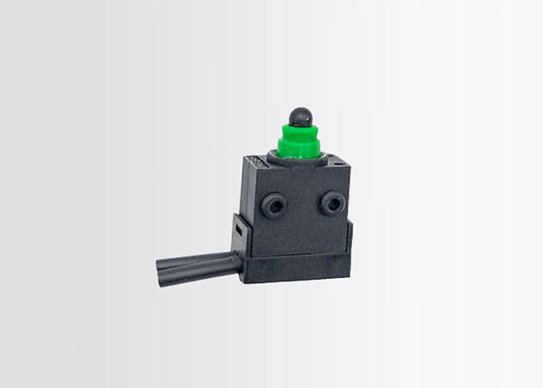

Mini Waterproof Micro Switch G304G
- Made to be dust and water tight (IP67)
- Compact small size
- High reliability and long lifespan
- Micro switch without lever & Multiple levers
- Broad selection of wire terminals
- Commonly used in appliance and automobile electronics including industrial control
- Personalized designs
- Slide design
- Non-short circuit conversion
Place of Origin:Guangdong, China (Mainland)
- Brand Name:Unionwell
- Model Number:G304G
Max Operating Force (at pin plunger):80gf/150gf
Terminal Type:Solder/Others
Lever Type:V Shape Leaf Lever/Straight Leaf Lever/Micro Switch Without Lever

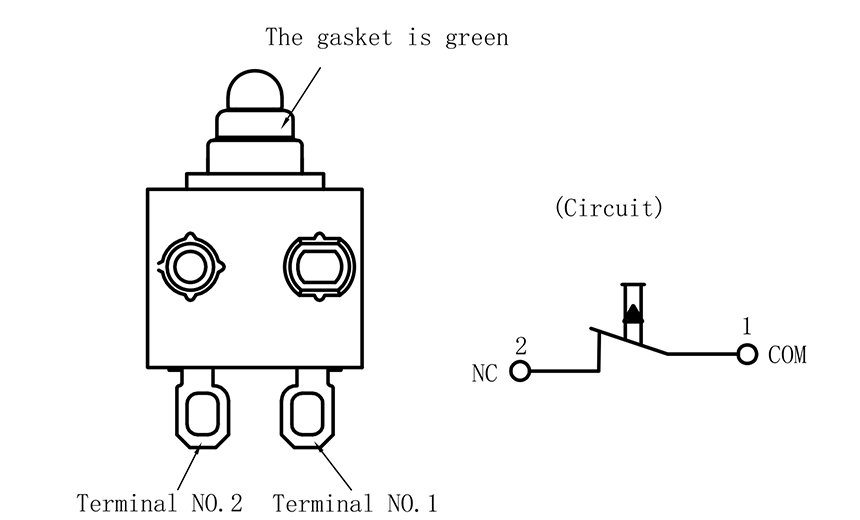

Circuit Code:SPST-NO/SPST-NC
Certifications:ENEC, UL/cUL, CQC
OEM/ODM:Available
- Operating Linear Speed:1~500mm/s
- Operating Frequency: 120 cycles/min
- Insulation Resistance:≥100MΩ（DC 500V by insulating-resistance meter）
Contact Resistance (Initial Value)
with terminals: ≤100mΩ

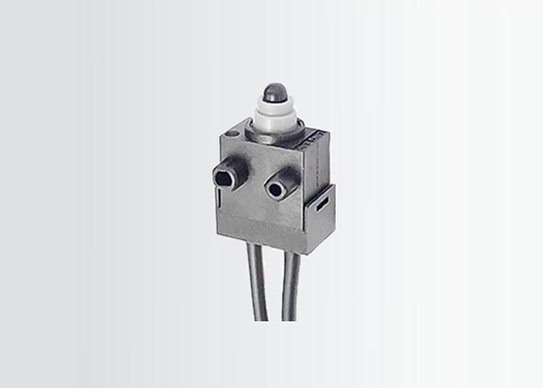

with wires: ≤500mΩ(300mm)- Dielectric Strength
between terminals:AC500V, 50/60Hz, 1min.
between terminals and unelectrified metal parts:AC1000V, 50/60Hz, 1min. Vibration Durability:10~55Hz
- Service Life
Electrical:300000 cycles(20 cycles/min) DC12V 0.1A DC3V 50μA
Mechanical:300,000 cycles (30cycles/min) Protection Level:IEC IP67
Operating Temperature:-40~+85°C 60%RH
Operating Humidity:95%RH(+5~+35°℃)
Mini waterproof micro switches are widely used in the automotive industry due to their durability, compact size, and ability to function reliably in challenging environments. As an automotive micro switch, it is designed to be resistant to water, dust, vibrations, and other harsh conditions commonly encountered in automotive applications. They play a crucial role in various electrical systems within vehicles.
