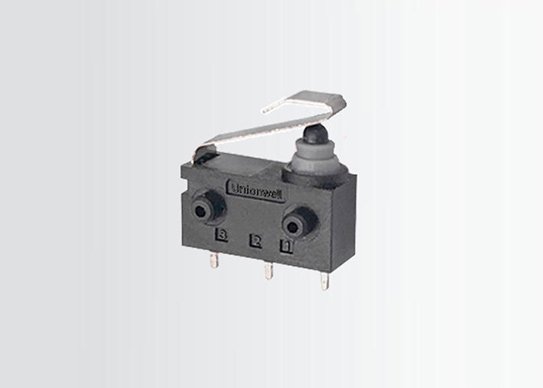

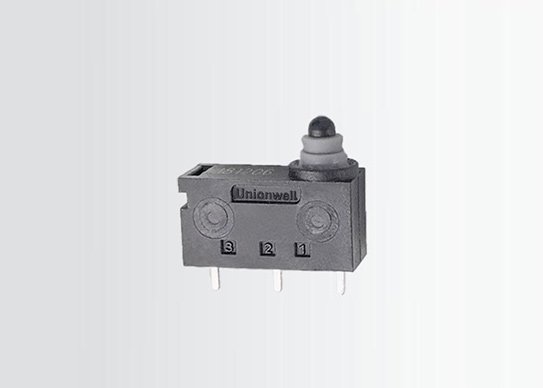

Mini Waterproof Micro Switch G304F

  • Designed for water and dust tight (IP67)
  • Small compact size
  • Long life and high reliability
  • Variety of levers
  • Wide range of wiring terminals
  • Widely used in automotive electronics, appliances, industrial control, etc.
  • Customized designs
  • Slide structure
  • Non-short circuit conversion
Inquiry
PDF download

Specifications of Mini Sealed Micro Switch G304F

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell
  • Model Number:G304F

  • Max Operating Force (at pin plunger):80gf/150gf

  • Terminal Type:Solder/PCB

  • Lever Type:No Lever/Others

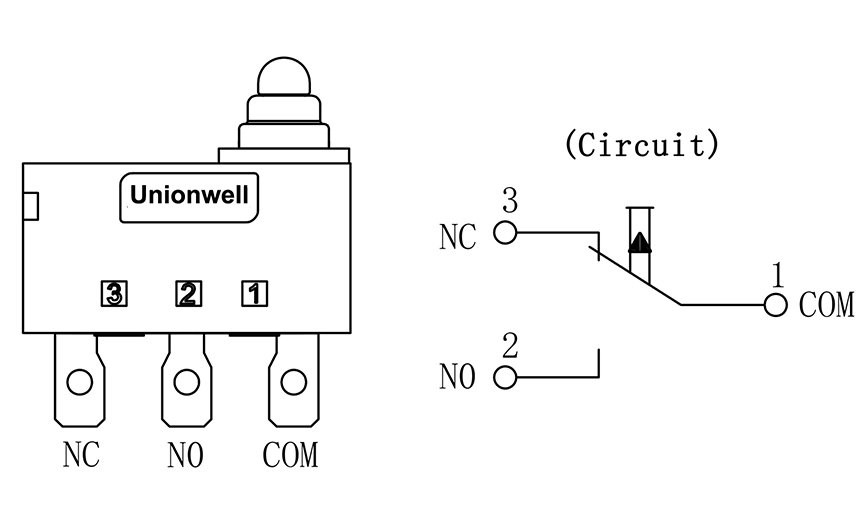

  • Circuit Code:SPST-NO/SPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Operating Linear Speed:1~500mm/s
  • Operating Frequency: 120 cycles/min
  • Insulation Resistance:≥100MΩ（DC 500V by insulating-resistance meter）
  • Contact Resistance (Initial Value)
    with terminals: ≤100mΩ
    with wires: ≤500mΩ（Wire length 300mm）
  • Voltage Resistance
    between terminals:AC500V, 50/60Hz, 1min.
    between terminals and unelectrified metal parts :AC1000V, 50/60Hz, 1min.
  • Vibration Durability:10~55Hz, move 1.50mm(p-p)

  • Service Life
    Electrical:300,000 cycles (20 cycles/min)DC12V 0.1A 50μA 3VDC
    Mechanical:300,000 cycles (30 cycles/min)

  • Protection Level:IEC IP67 (Except for terminals)
  • Operating Temperature:-40～+85°C

  • Operating Humidity:95%RH Max（+5～+35°C）

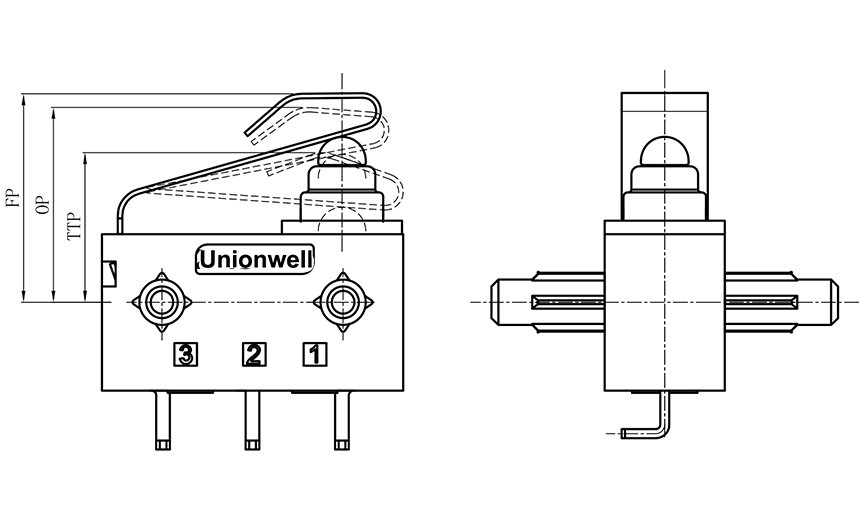

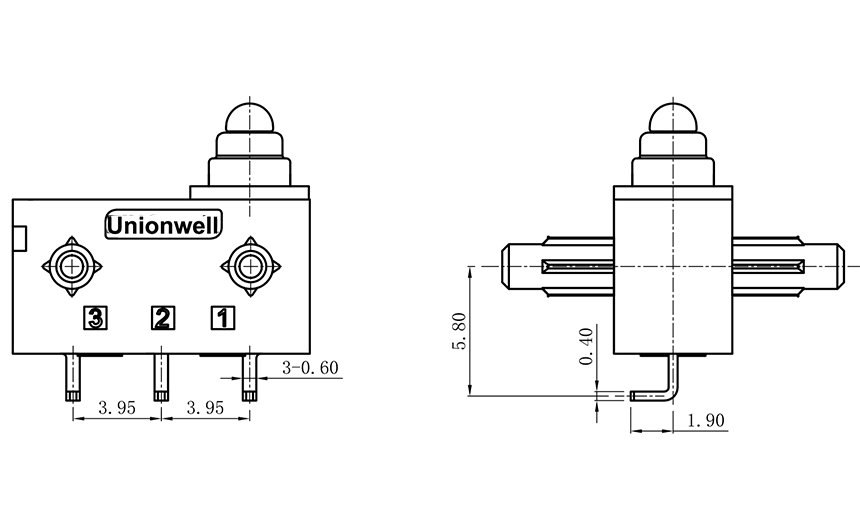

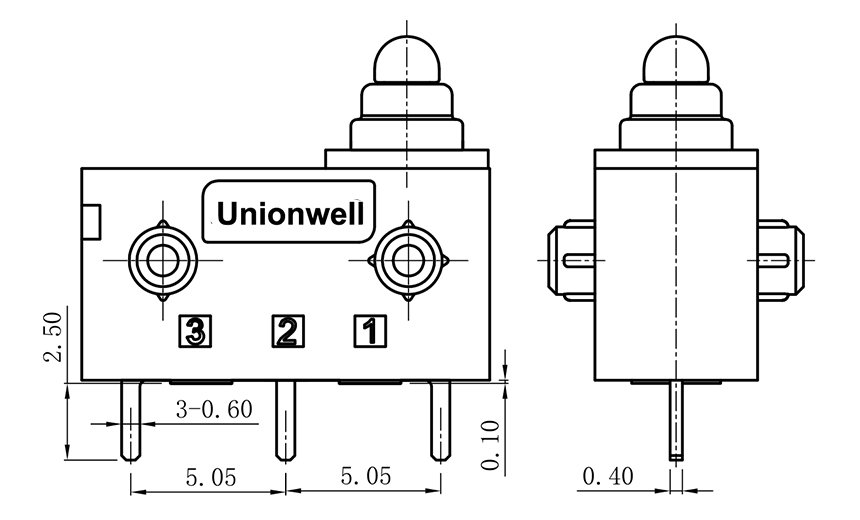

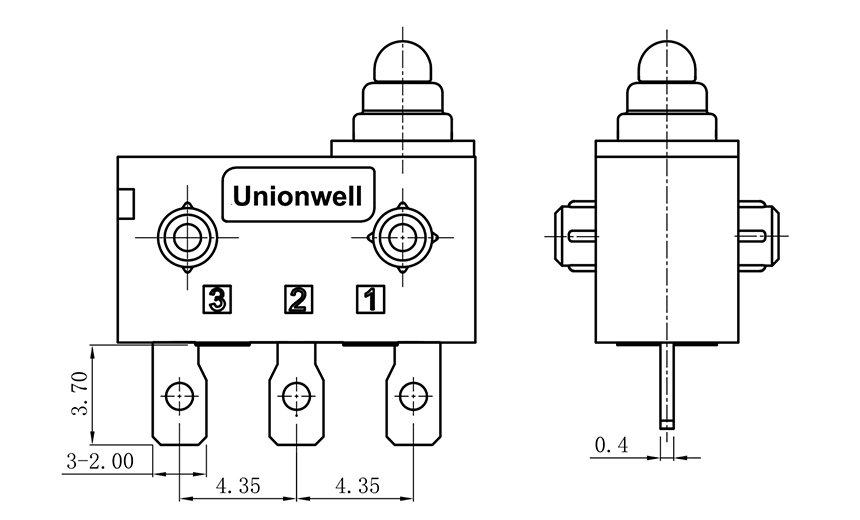

Product Drawing of Mini Waterproof Micro Switch G304F
