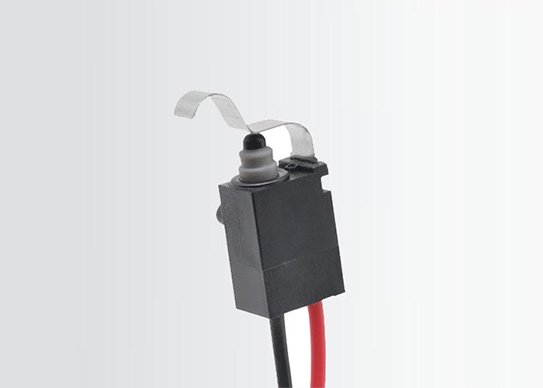

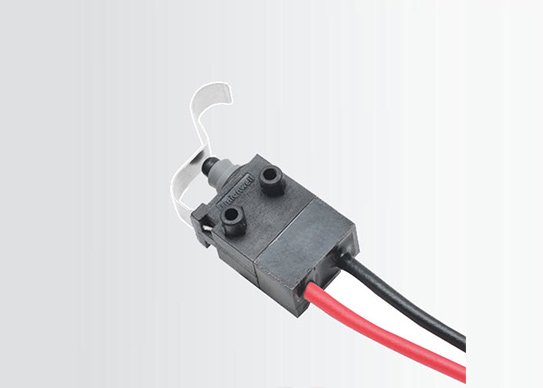

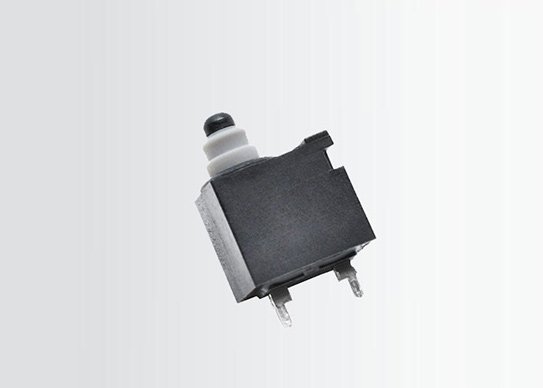

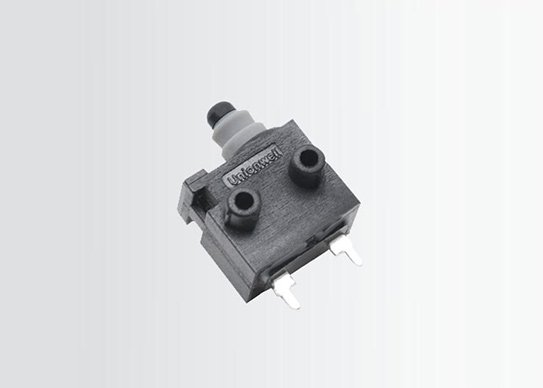

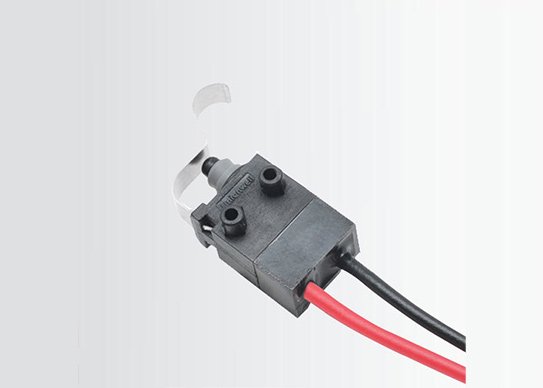

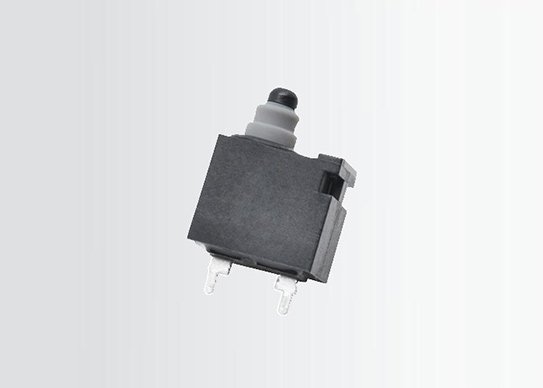

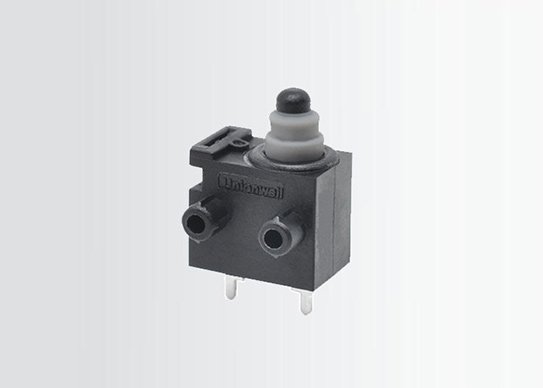

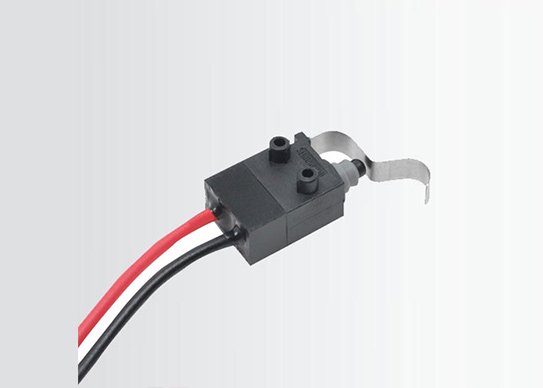

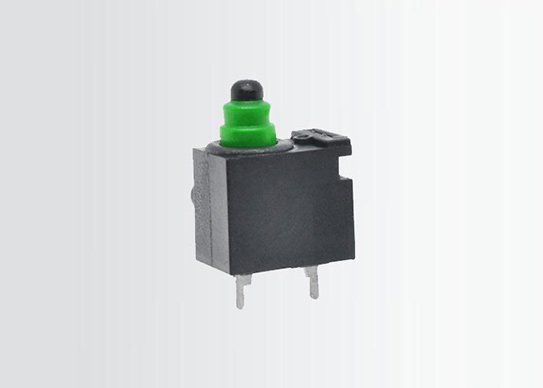

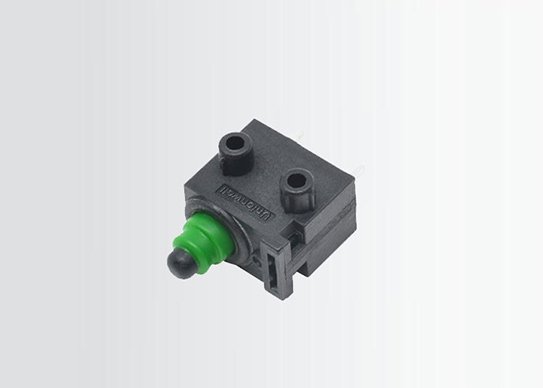

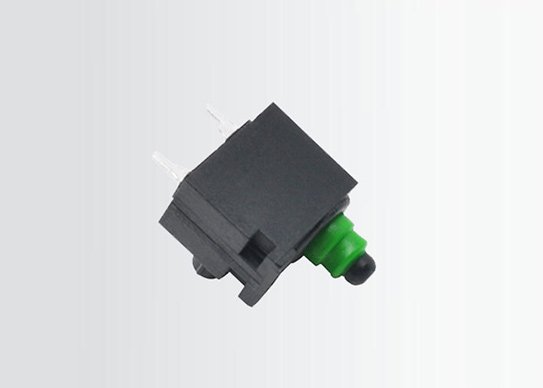

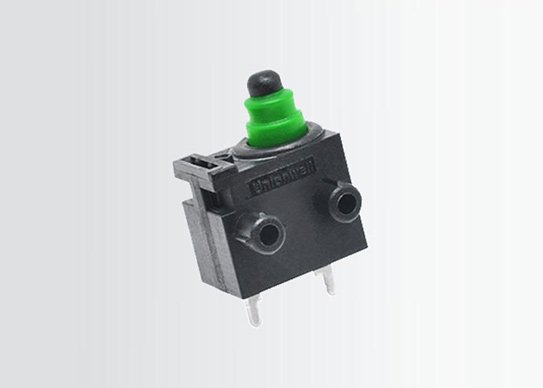

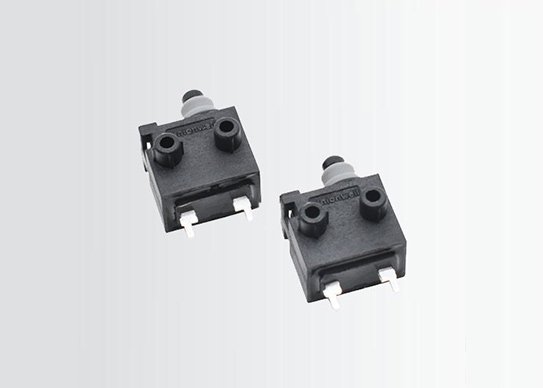

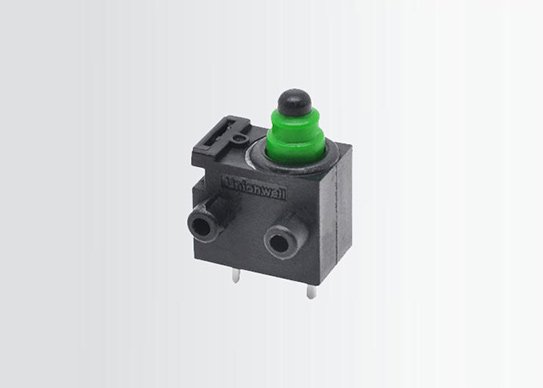

Mini Waterproof Micro Switch G304D

Mini Sealed 2 PIN Micro Switch with long travel and slide double clipping contact structure.

  • 2-pin compact size, levers optional
  • Though small in size, it could be installed with a locking cover and operated on different objects.
  • Independent contact force from travel
  • High contact reliability complied with low load
  • High leakproof ability and resistance against extreme environments（IP67）
  • Mute structure with sliding contact
Inquiry

Specifications of Mini Sealed Micro Switch G304D

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:G304D Series

  • Max Operating Force (at pin plunger)： 150gf

  • Terminal Type:Solder/Straight PCB/Left angle PCB/Right angle PCB

  • Lever Type: No Lever/Hinge/Simulated Roller/Roller/Special

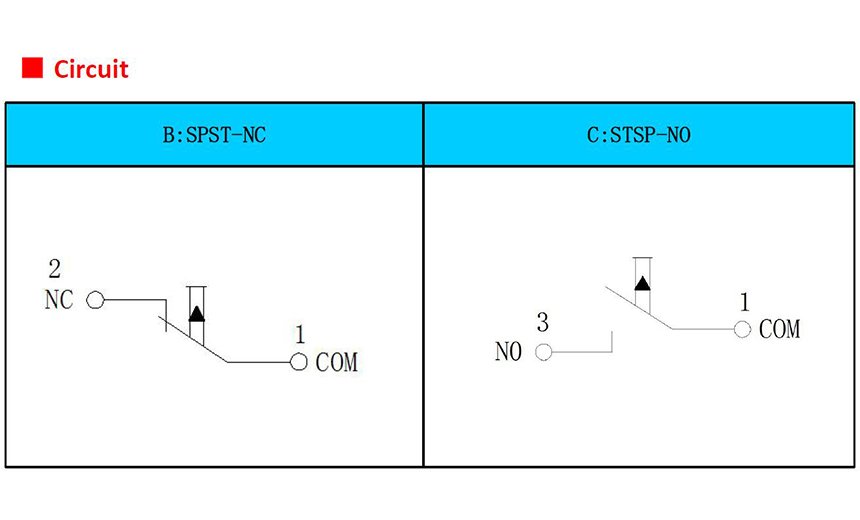

  • Circuit Code:SPST-NO/SPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Operating Linear Speed: 30~500mm/s

  • Operating Frequency: 120 cycles/min

  • Insulation Resistance: ≥100MΩ（DC 500V by insulating-resistance meter）

  • Contact Resistance (Initial Value)
    with terminals:≤500mΩ
    with wires:≤800mΩ（Wire length 300mm）
  • Voltage Resistance
    between terminals:AC500V, 50/60Hz, 1min.
    between terminals and unelectrified metal parts:AC1500V, 50/60Hz, 1min.
  • Service Life
    Electrical:300,000 cycles (30 cycles/min) DC12V 0.1A 50μA 5VDC
    Mechanical:300,000 cycles (60 cycles/min)
  • Protection Level:IEC IP67 (Except for terminals)
  • Operating Temperature:-40～+85°C

  • Operating Humidity:95%RH Max（+5～+35°C）

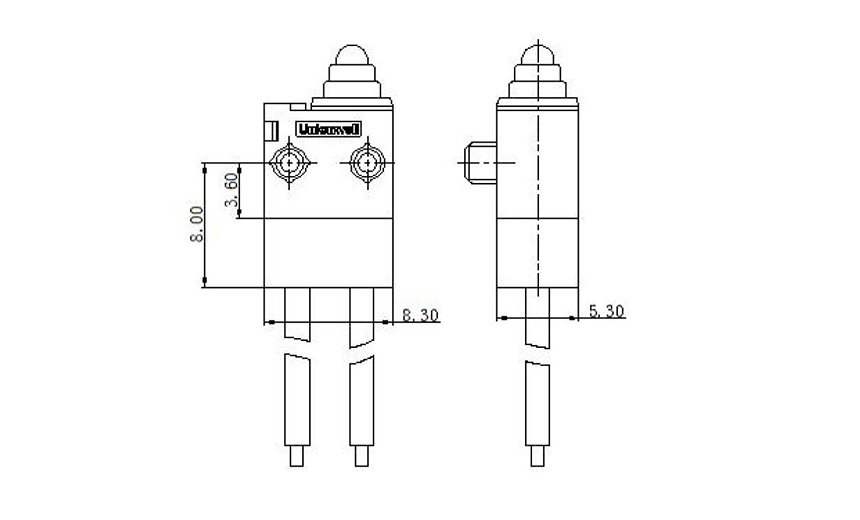

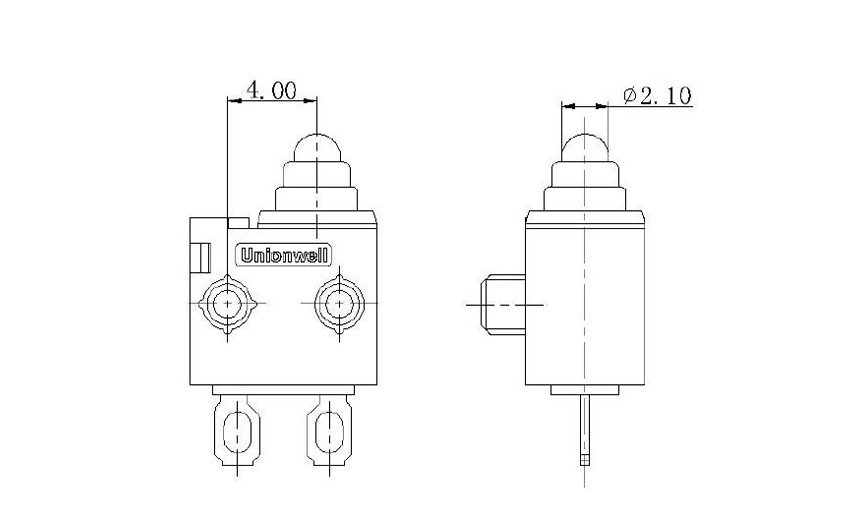

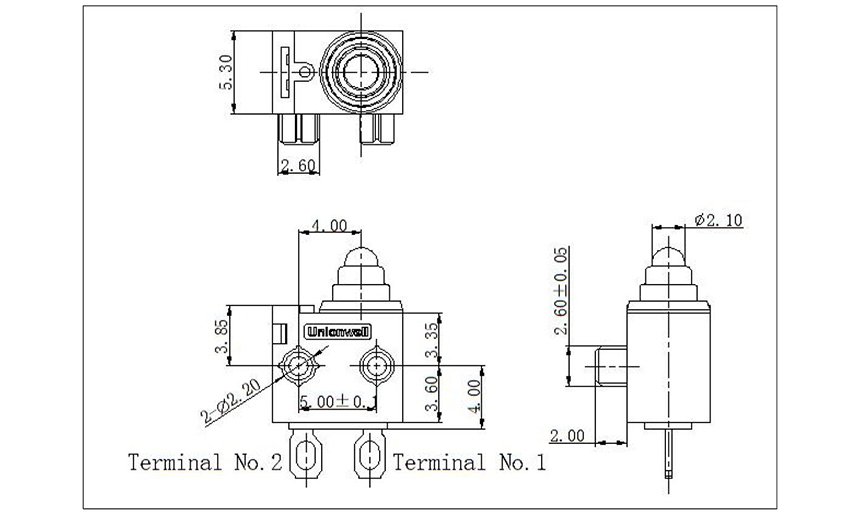

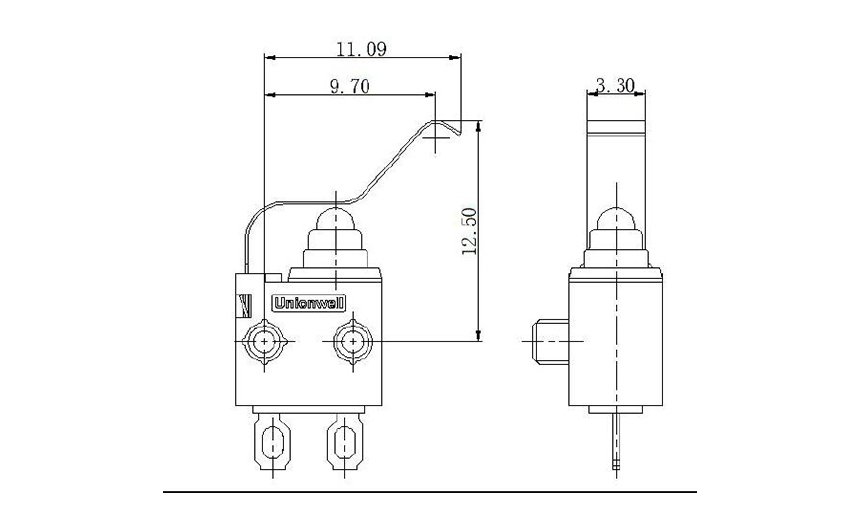

Product Drawing of Mini Waterproof Micro Switch G304D
