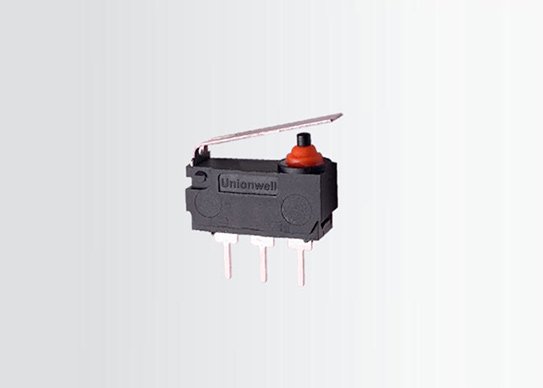

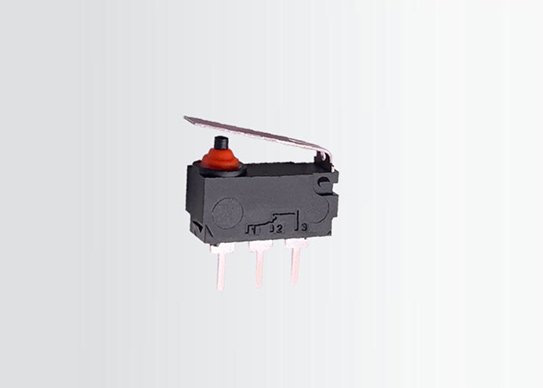

Mini Waterproof Micro Switch G304A

  • Widely used in home appliances, electronic equipment, Automatic machines, communication equipment, Auto electronics, apparatus and instruments, power tools, etc.
  • Can be widely applied in different environments, IP67 rated
  • Small electrical rating and high contact reliability switch
  • Sliding contacts and mute structure
Inquiry
PDF download

Specifications of Mini Sealed Micro Switch G304A

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:G304A

  • Max Operating Force (at pin plunger):150gf/Others

  • Terminal Type:Solder/PCB

  • Lever Type:No Lever/Straight Leaf Lever

  • Circuit Code:SPDT/SPST-NO/SPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Operating Linear Speed:1~500mm/s
  • Operating Frequency: 120 cycles/min

  • Insulation Resistance:≥100MΩ

  • Contact Resistance (Initial Value)
    with terminals: ≤100mΩ
    with wires: ≤500mΩ(Standard Wire Length 300mm)

  • Voltage Resistance
    between terminals:AC600V, 50/60Hz, 1min.
    between terminals and unelectrified metal parts:AC1500V, 50/60Hz, 1min.

  • Vibration Durability:10-55Hz 1.5mm(double amplitude)

  • Service Life
    Electrical:300,000 cycles(20 cycles/minute) DC12V 0.1A 50μA 3VDC
    Mechanical:300,000 cycles(30 cycles/min)
  • Protection Level:IEC IP67 (Except for terminals)

  • Operating Temperature:-40～+85°C

  • Operating Humidity:85%RH Max

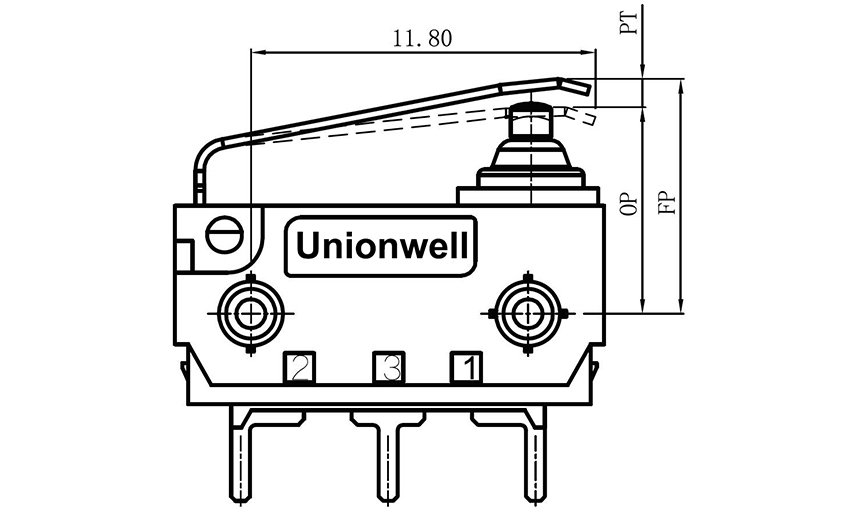

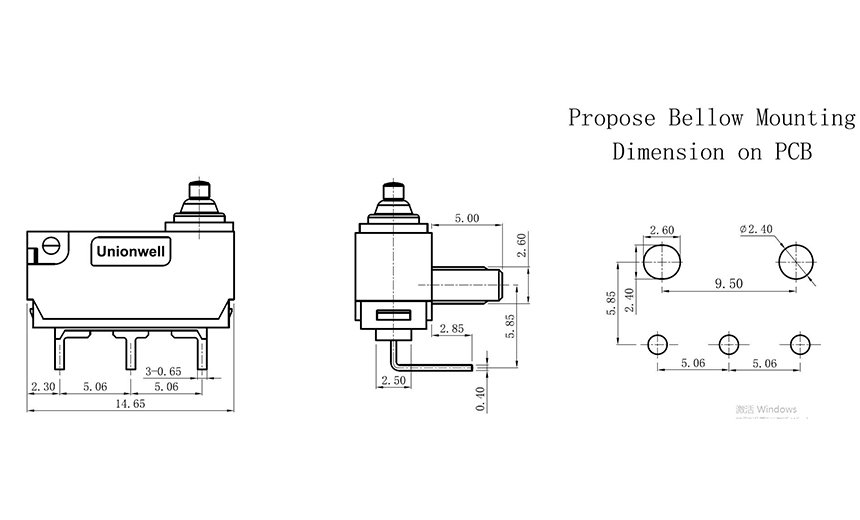

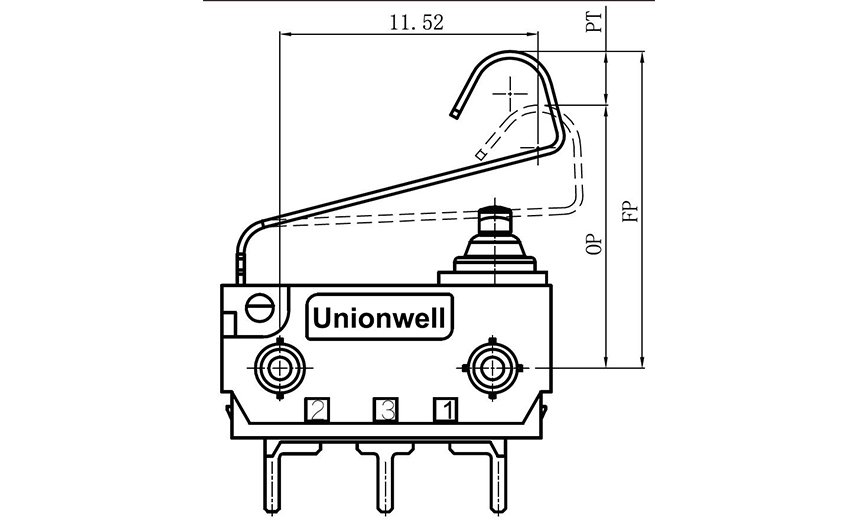

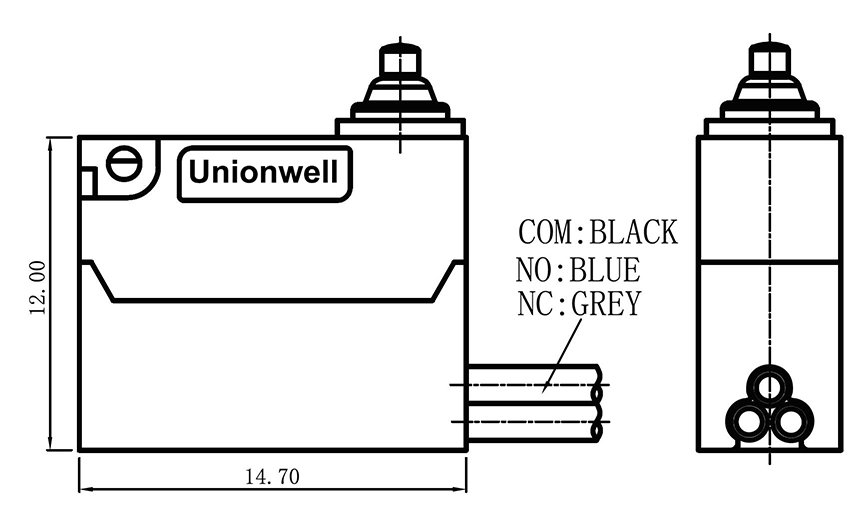

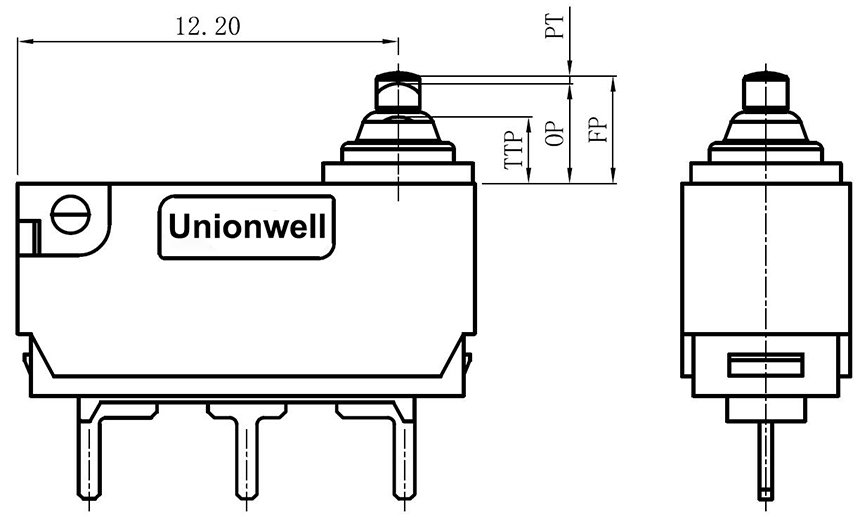

Product Drawing of Mini Waterproof Micro Switch G304A

Mini Waterproof Micro Switch G304A Related Applications
