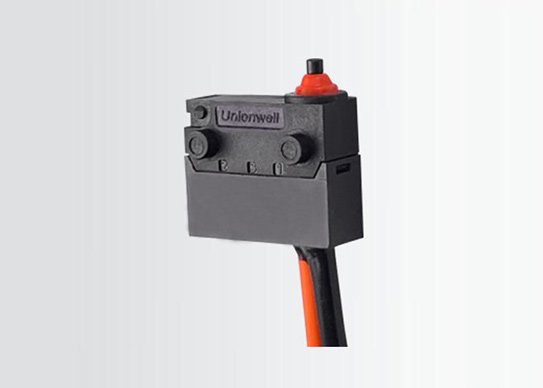

Mini Waterproof Micro Switch G303R

Mini Sealed Micro Switch G303R with Internal Resistor and PCB Board

  • Small compact size; High durability and reliability; IP67 waterproof protection.
  • With an internal PCB board and resistor, the resistance value can be customized to satisfy customers in EV charging.

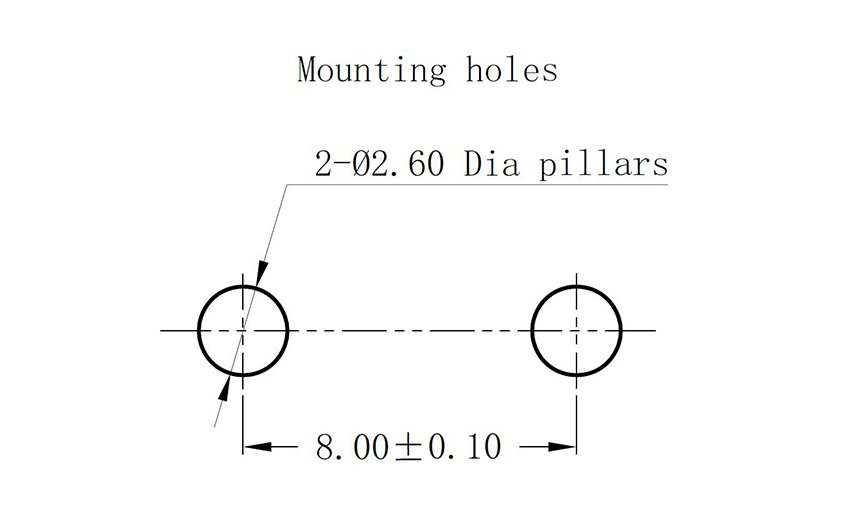

  • Multiple options for mounting posts.

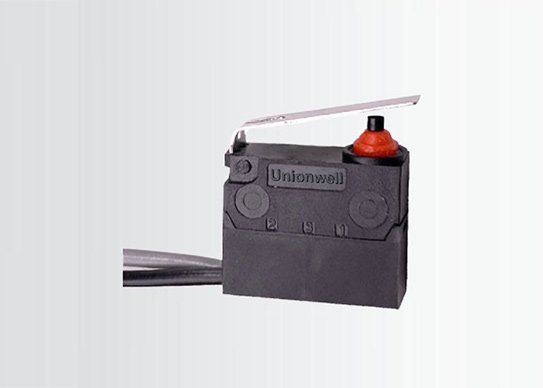

  • Small plunger, could be applicated to oblique pushing actuating when equipped with levers.
Inquiry

Specifications of Mini Sealed Micro Switch G303R

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell
  • Model Number:G303R

  • Max Operating Force (at pin plunger):130gf/200gf other options could be customized

  • Terminal Type:Lead Wires/Bracket

  • Lever Type:No Lever/Others

  • Circuit Code:SPST-NO/SPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

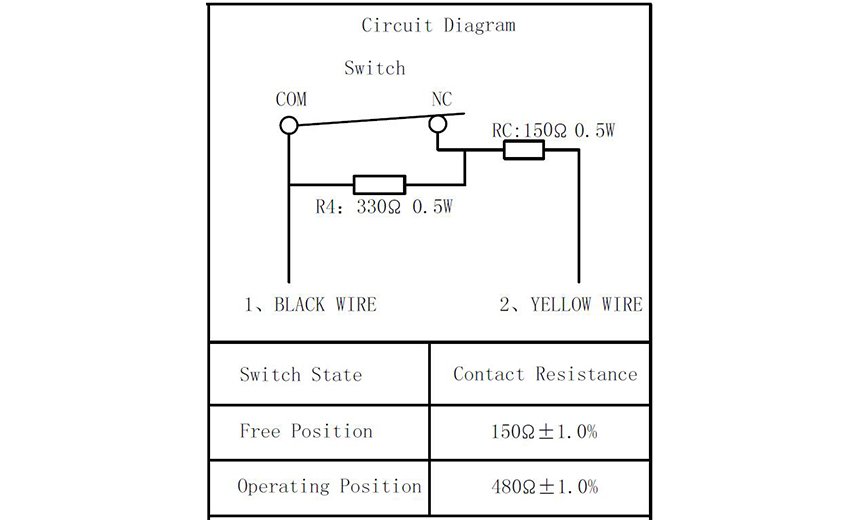

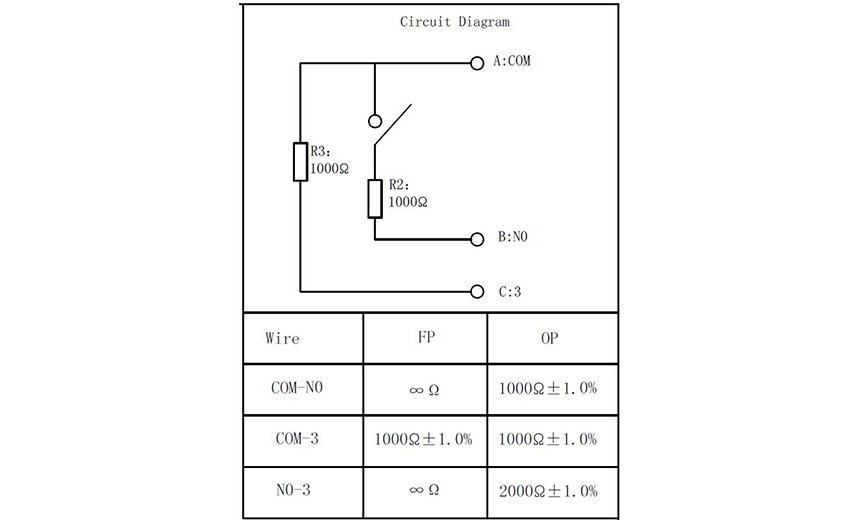

  • Contact Resistance
    at FP:150Ω/1000Ω Could be customized
    at OP:480Ω/1000Ω/2000Ω Could be customized
  • Rating and Electrical Service Life:10mA 12VDC μ40T85 1E5
  • Protection Level:IEC IP67
  • Your Content Goes Here

  • Operating Temperature:-40～+85°C

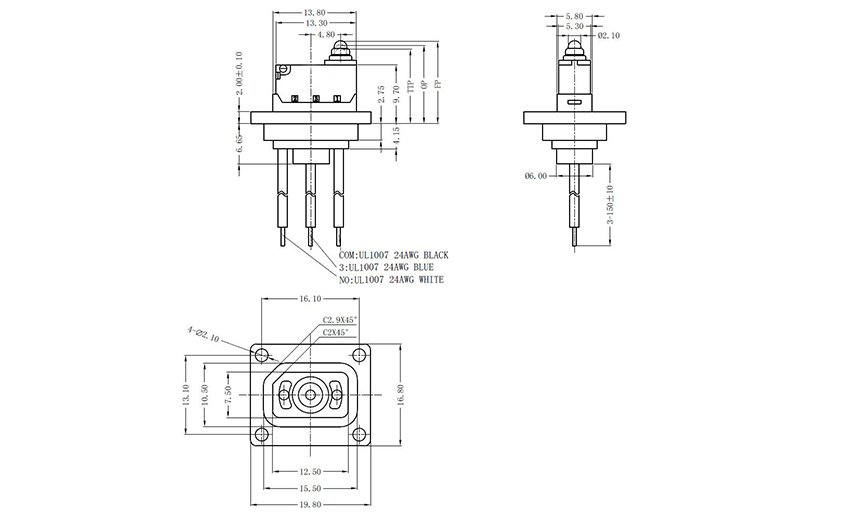

Product Drawing of Mini Waterproof Micro Switch G303R
