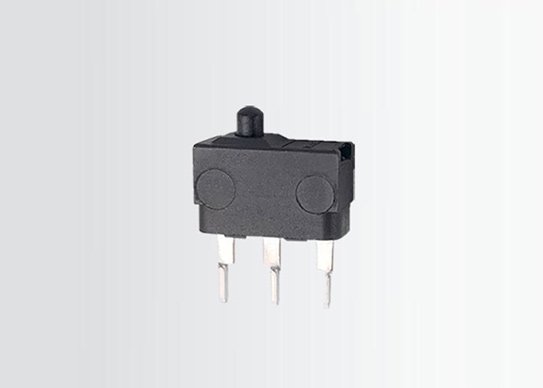

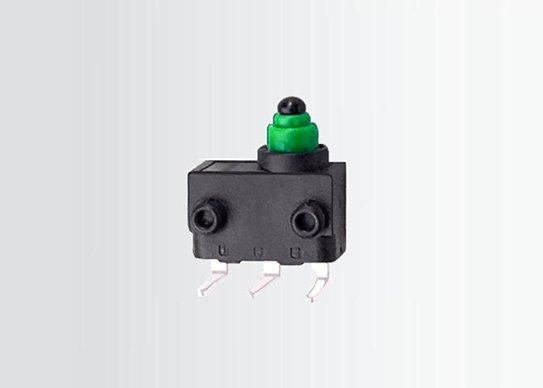

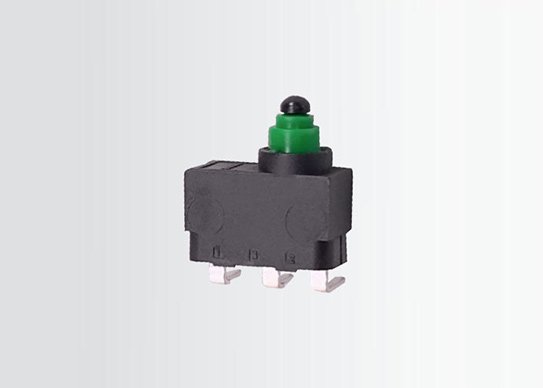

Mini Waterproof Micro Switch G303A/B

  • Waterproof and dustproof IP67/IP40 level protection
  • Small dimensions and compact structure
  • Global safety approvals
  • Long life and high reliability
  • Variety of levers and housings
  • Wide range of terminals with optional lead wires
  • Widely used in automotive electronics, appliances, and industrial control
Inquiry
PDF download

Specifications of Mini Sealed Micro Switch G303A/B

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:G303A/B Series

  • Max Operating Force (at pin plunger):180gf/130gf

  • Terminal Type:Mold Lead Wires/Solder/PCB

  • Lever Type:No Lever/Hinge/Leaf

  • Circuit Code:SPDT/SPST-NO/SPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Rating:0.1A, 125/250VAC; 3A/ 12VDC; 0.1A/48VDC; μ1E5
  • Operating Frequency
    Electrical:0.1A-120cycles/minute; 3A-10~30 cycles/minute
    Mechanical:120 Cycles/minute

  • Contact Resistance(Initiative):100mΩ Max

  • Insulation Resistance (at 500VDC):100mΩ Min
  • Vibration Durability:10~55Hz, move 0.75mm (p-p)
  • Dielectric strength:500VAC (50″60Hz)
  • Operating Temperature:-40° C”+85° C
  • Operating Humidity:85%RHMax
  • Life Expectancy
    Electrical:Min. 100,000 cycles
    Mechanical:Min. 500, 000 cycles

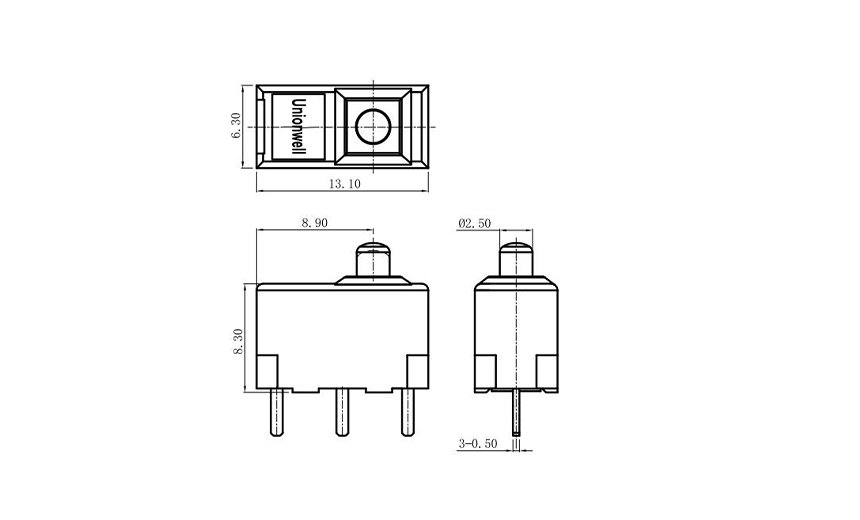

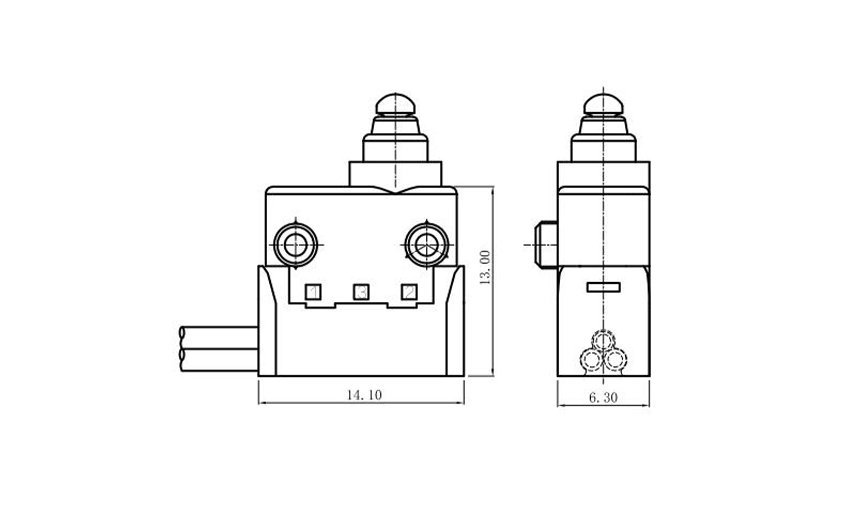

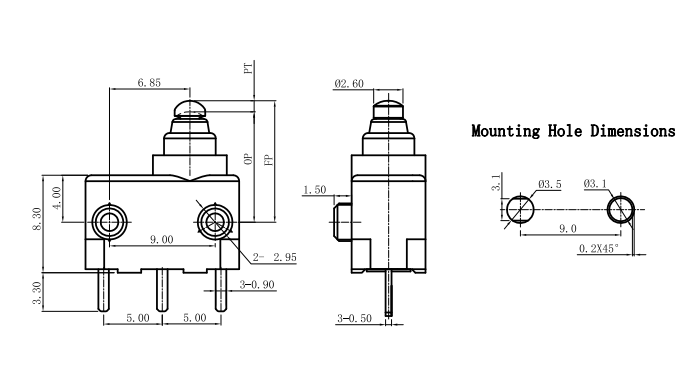

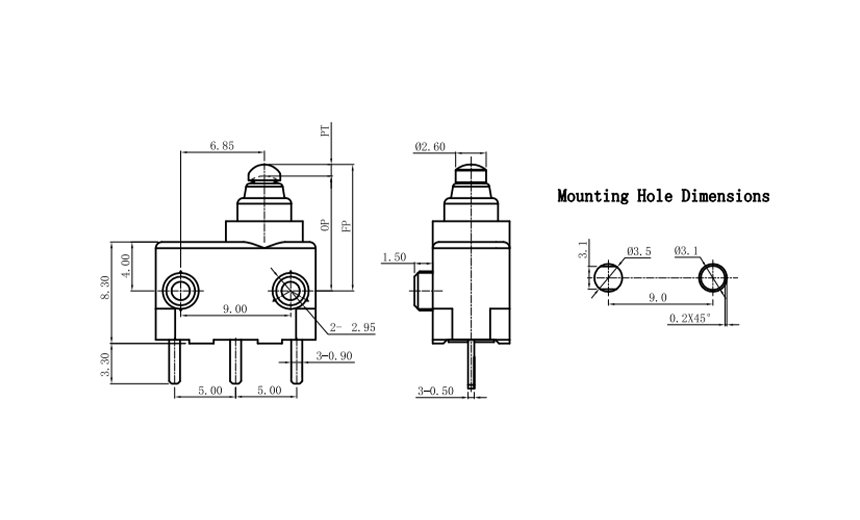

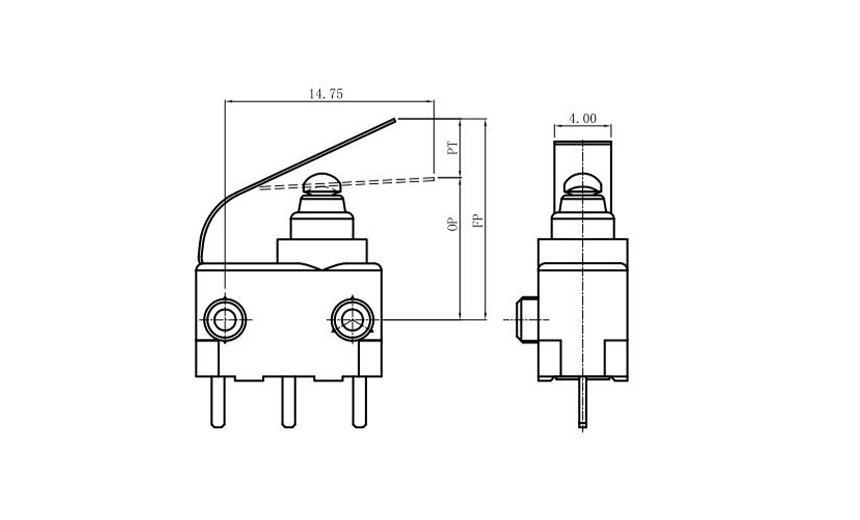

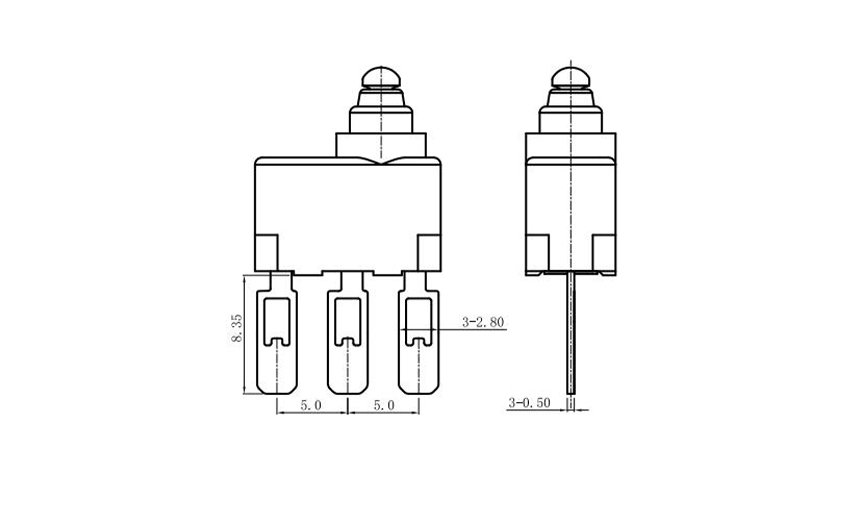

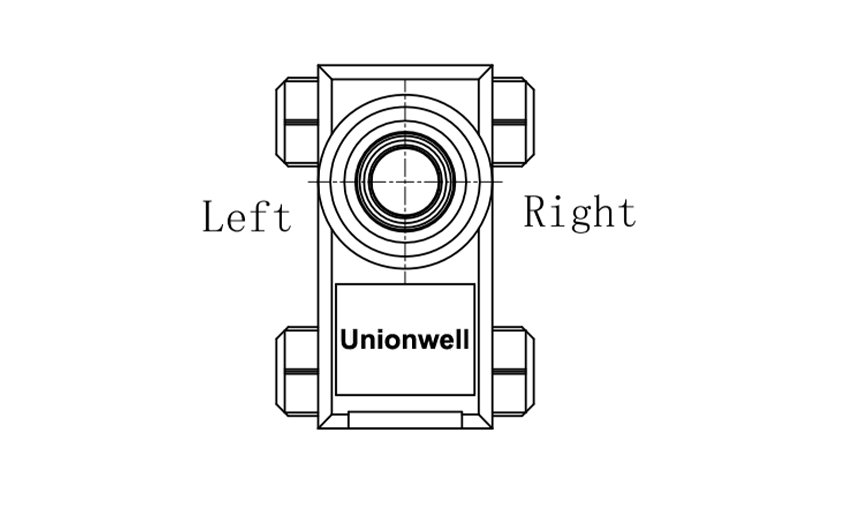

Product Drawing of Mini Waterproof Micro Switch G303A/B
