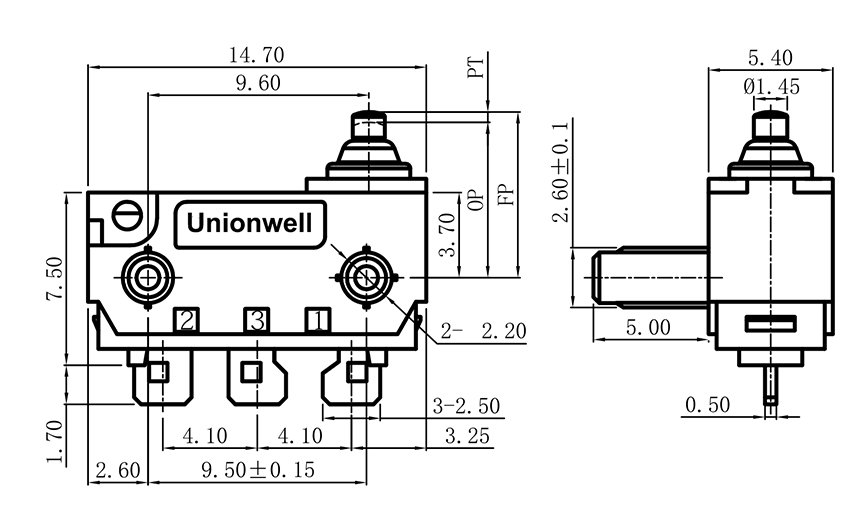

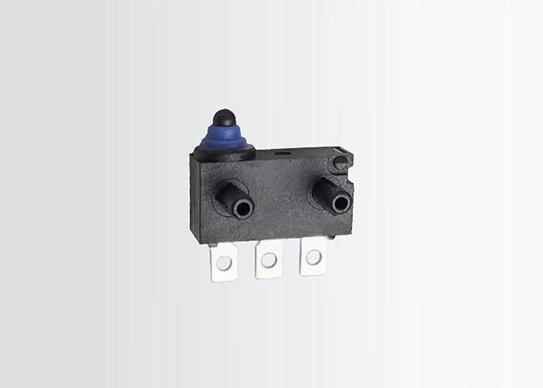

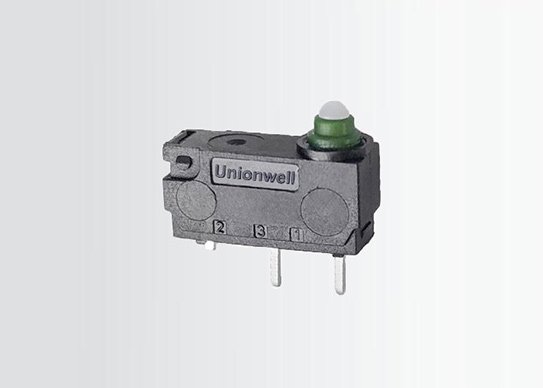

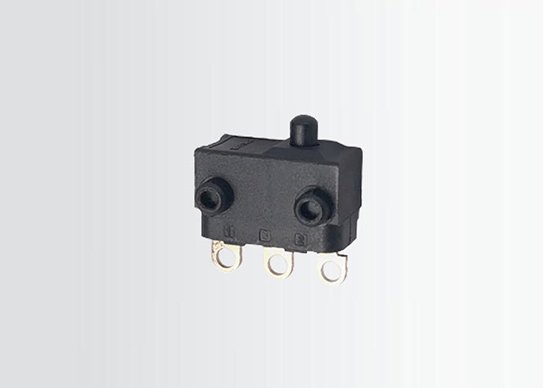

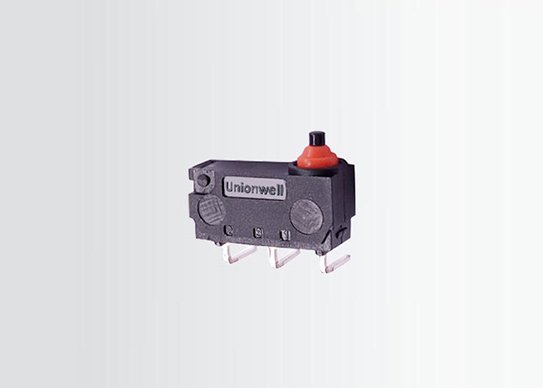

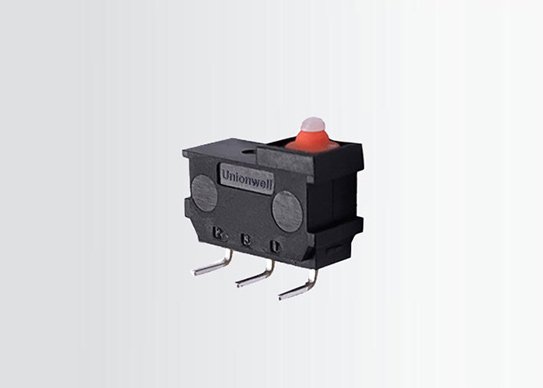

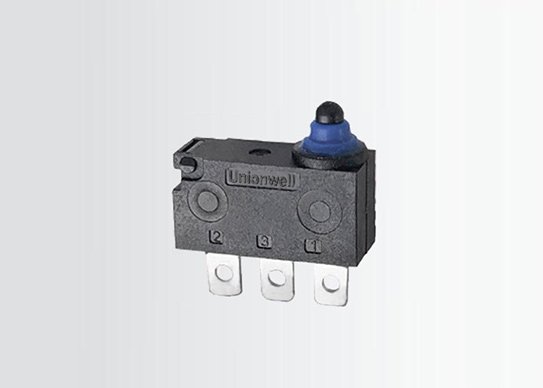

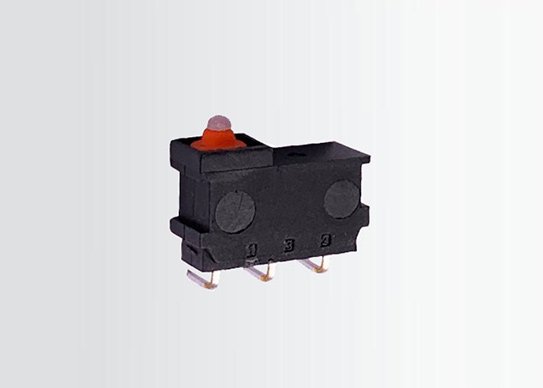

Mini Waterproof Micro Switch G303
- Well sealed with IP67 protection level
- Mini housing which matches various application environments.
- With worldwide access permit certifications
- High durability makes sure the stable performance
- Multiple lever options available

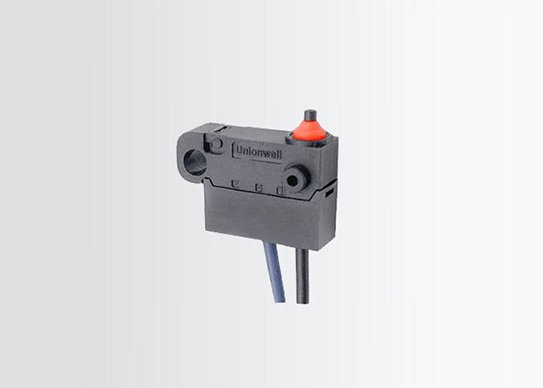

- Lead wires specially provided for connecting terminals and application positions.
- You could find it in automotive electronics, appliances, and industrial control designs
- Place of Origin:Guangdong, China micro switch 12v
- Brand Name:Unionwell
- Model Number:G303 Series
- Max Operating Force (at pin plunger): 130gf

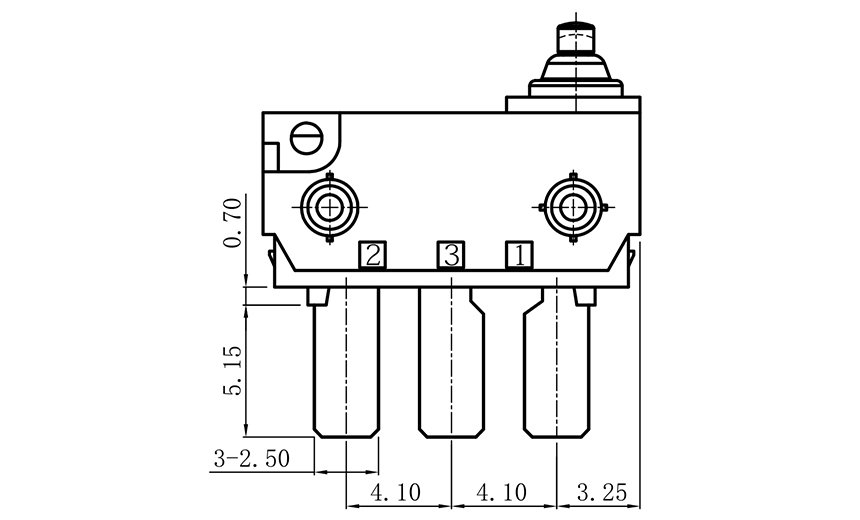

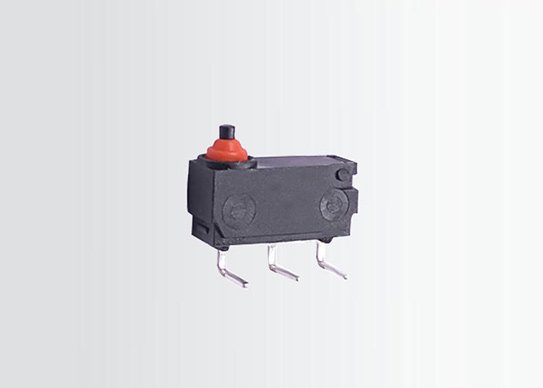

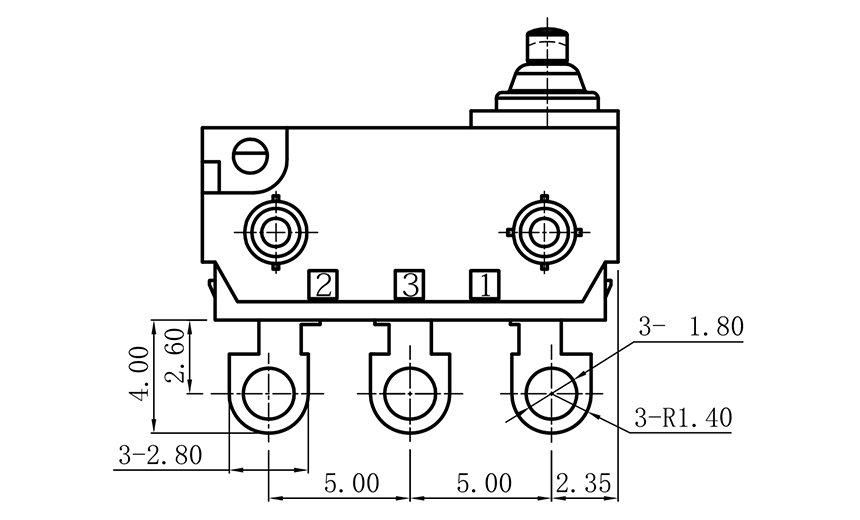

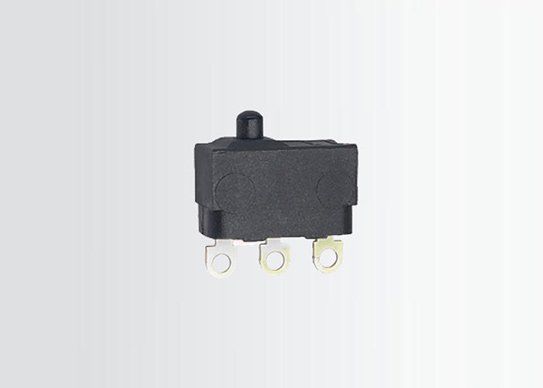

Terminal Type:Mold Lead Wires/Solder/PCB/Fork Shape

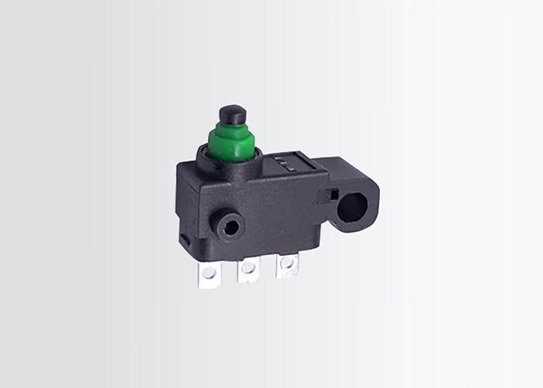

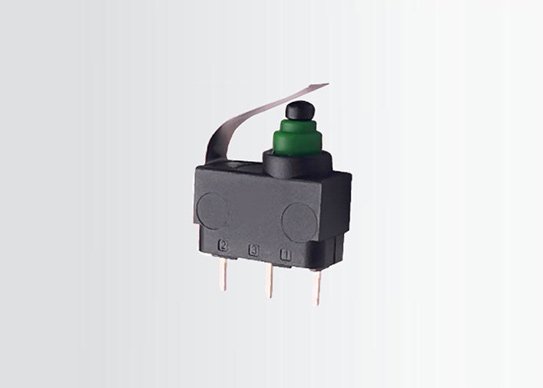

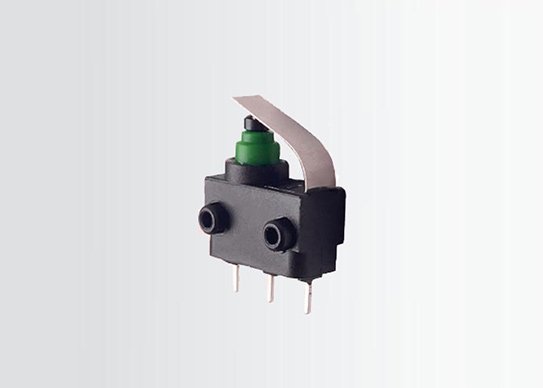

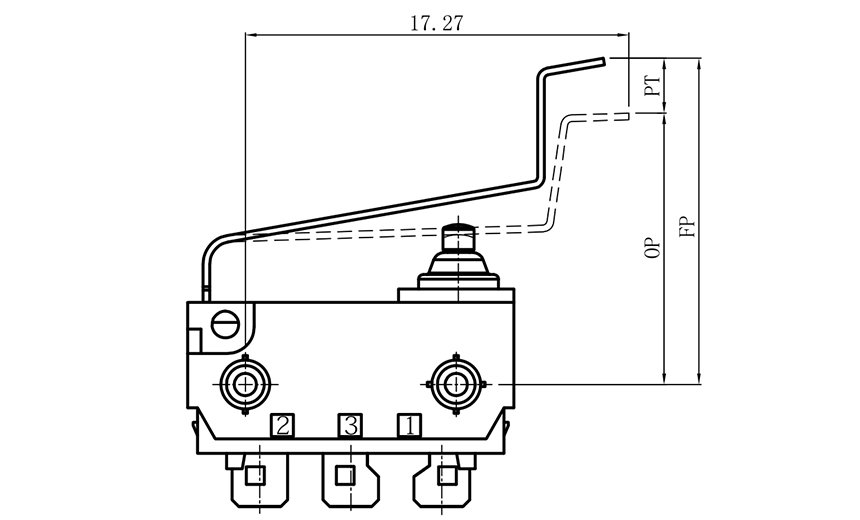

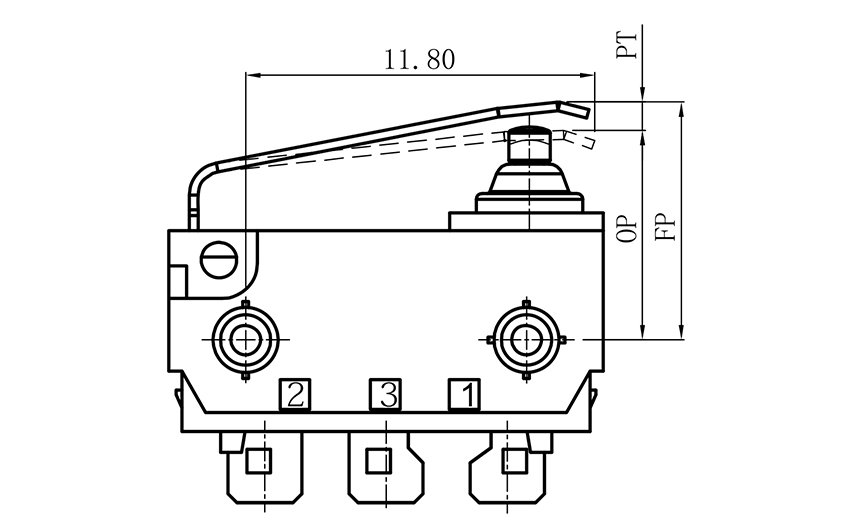

Lever Type: No Lever/Hinge/Leaf/Simulated Roller/Roller/Special Design

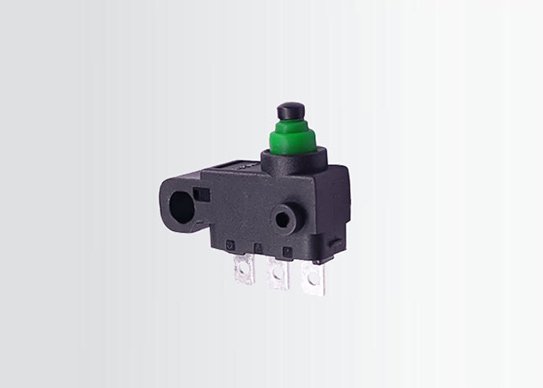

Circuit Code:SPDT/SPST-NO/SPST-NC
Certifications:ENEC, UL/cUL, CQC
OEM/ODM:Available
- Rating:0.1A, 125/250VAC; 3A/ 12VDC; 0.1A/48VDC; μ1E5
Contact Resistance(Initiative) :100mΩ Max (without wire type)
- Insulation Resistance (at 500VDC):100mΩ Min
- Vibration Durability:10~55Hz, move 0.75mm(p-p)
- Dielectric strength:500VAC (50″60Hz)
- Operating Temperature:-40° C”+85° C
- Operating Humidity:85%RHMax
- Life Expectancy
Electrical:Min. 100,000 cycles(Depend on model NO.)
Mechanical:Min. 500, 000 cycles

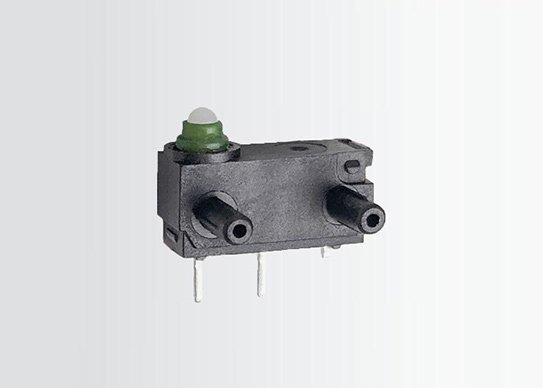

G303 Mini Waterproof Micro Switch is a perfect match with automotive vehicles. People usually find G303 at engine cover lock, door lock systems, central control lock system, tailgate latch, seat belt buckle latch, glove box, reading lamp indicator, and shifting system, etc. Up to our customers’ increasing projects, more and more new applications have been discovered in electric tools, communication devices, toys, bicycles, and more possibility is awaiting people to develop in new industries.
