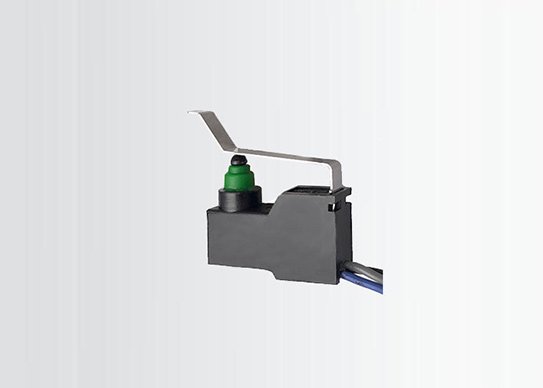

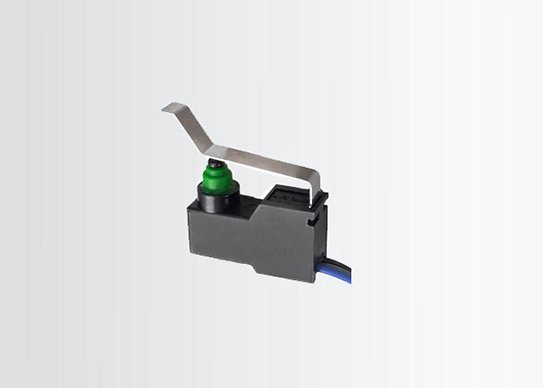

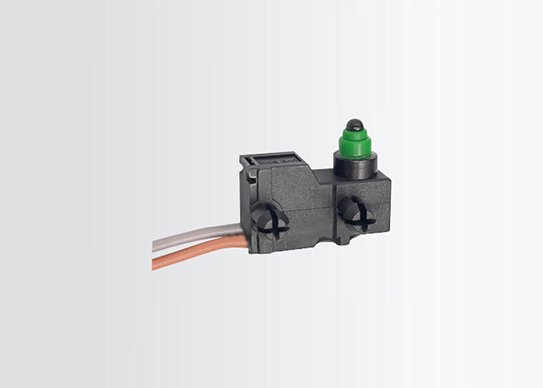

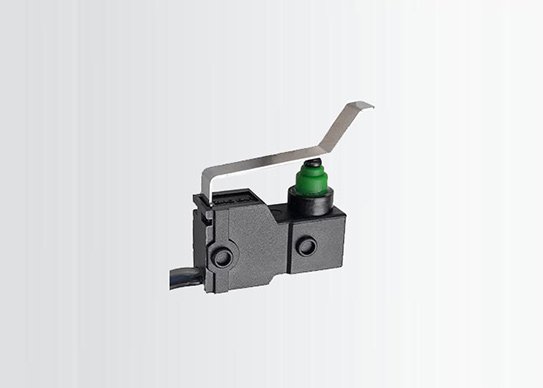

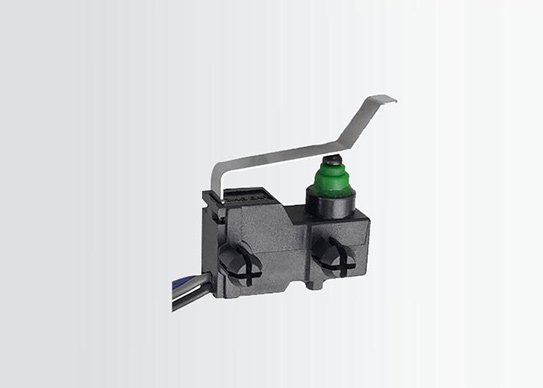

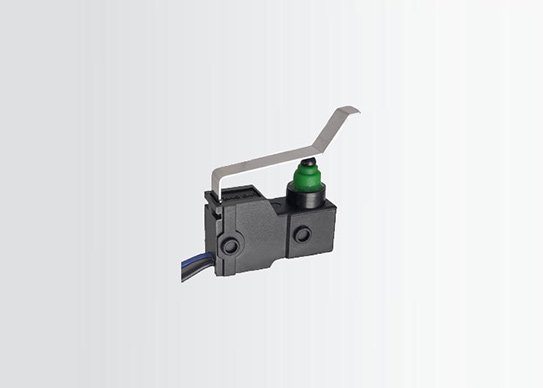

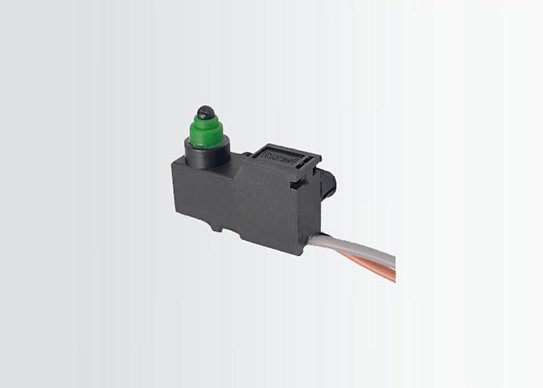

Mini Waterproof 24 Volt Micro Switch G305

  • Designed for water and dust tight (IP67)

  • Small compact size

  • Long life and high reliability

  • Widely used in automotive electronics, appliances, industrial control, etc.

Inquiry
PDF download

Mini Sealed 24 Volt Micro Switch G305 Specifications

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:G305

  • Max Operating Force (at pin plunger):130gf

  • Terminal Type:Mold Lead Wires on Right Side

  • Lever Type:No Lever/#13 Special Lever

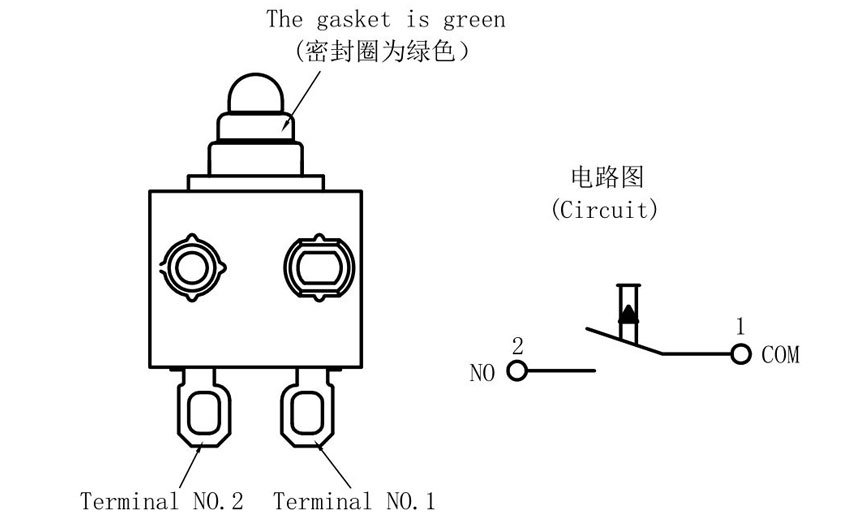

  • Circuit Code:SPDT/SPST-NO/SPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Rating:2A 24VDC; 4A 12VDC μ 40T85 10E4
  • Operating Frequency
    Electrical:0.1A 120cycles/min; 4A 10~30 cycles/min
    Mechanical:120 cycles/min
  • Insulation Resistance:≥100MΩ
  • Vibration Durability:10~55Hz, move 0.75mm (p-p)
  • Dielectric Strength:500VAC (50~60Hz)
  • Operating Temperature:-40～+85°C
  • Operating Humidity:85%RHMax
  • Service Life
    Electrical:100, 000cycles
    Mechanical:min 500,000cycles

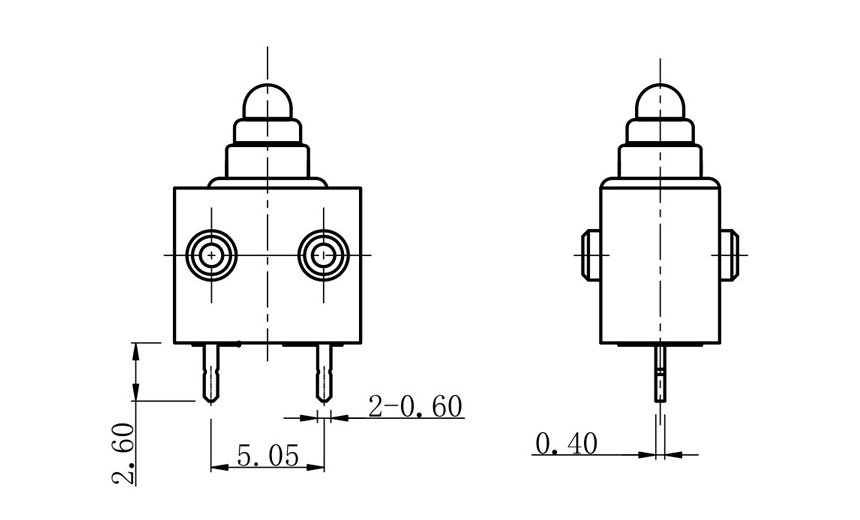

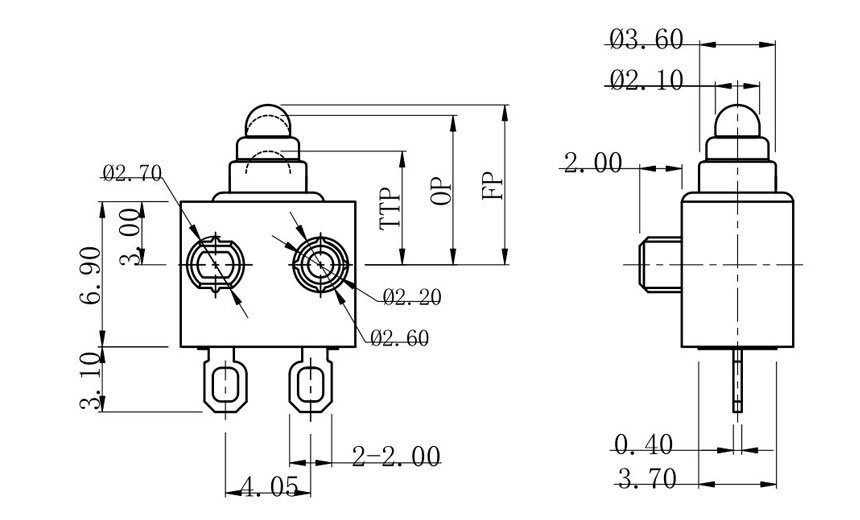

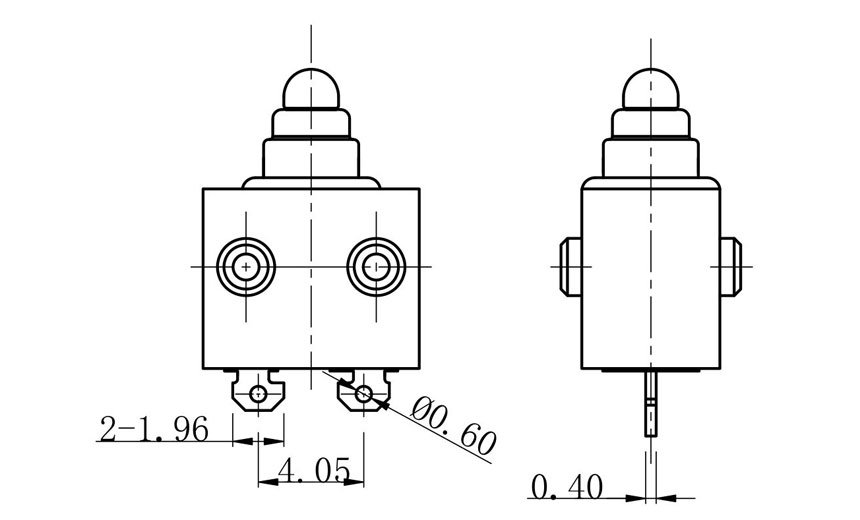

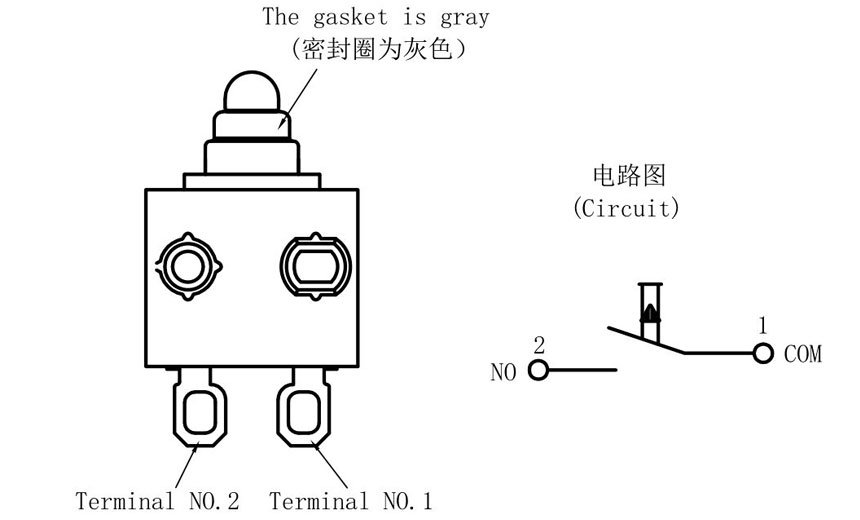

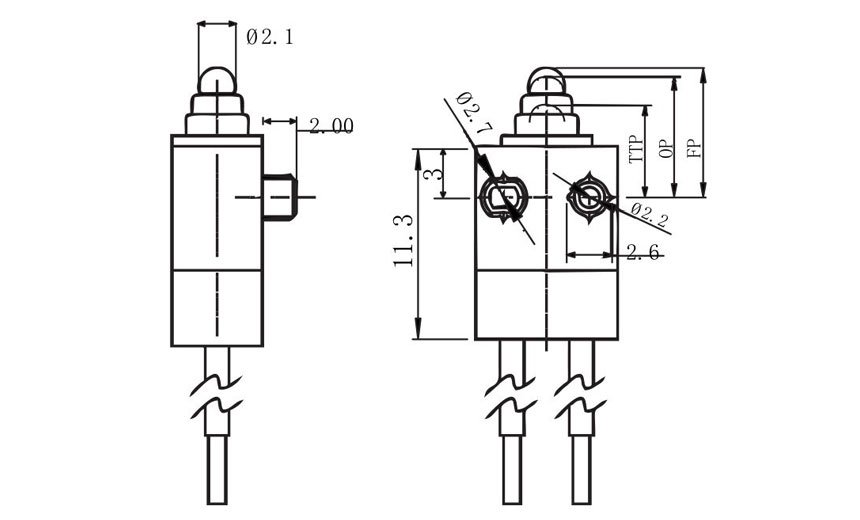

Mini Waterproof 24 Volt Micro Switch G305 Drawings
