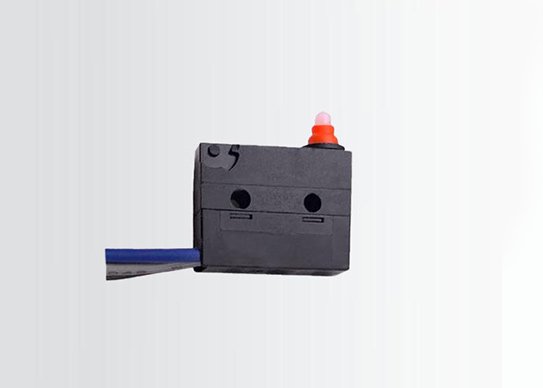

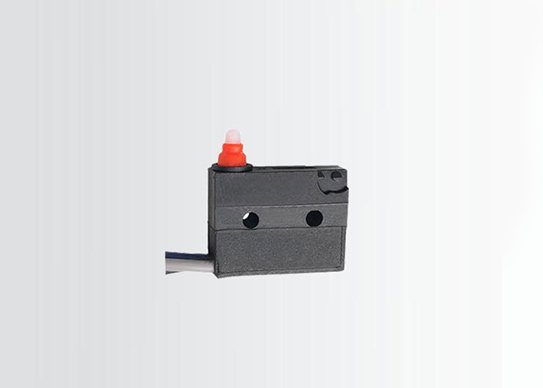

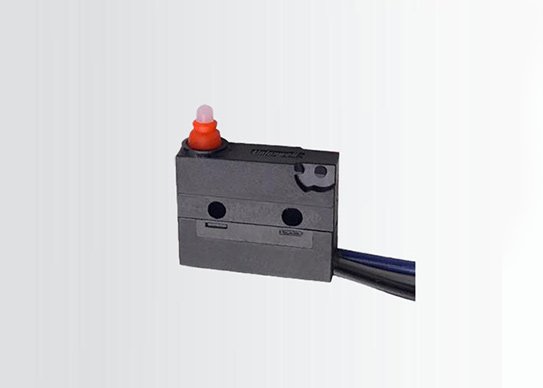

Mini Micro Switch G9A/B

G9A (IP67) waterproof/G9B (dustproof) (IP40)

  • compact size, small
  • High reliability and durability
  • different types of terminals and levers
  • Widely used in auto control, appliances, industrial control, etc.
  • Long overtravel of at least 2. 2mm
Inquiry
PDF download

Specifications of Mini Micro Switch G9A/B

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell
  • Model Number: G9A/G9B Series

  • Max Operating Force (at pin plunger):200gf Max

  • Terminal Type:Mold Lead Wires/Solder/PCB

  • Lever Type:No Lever/Others

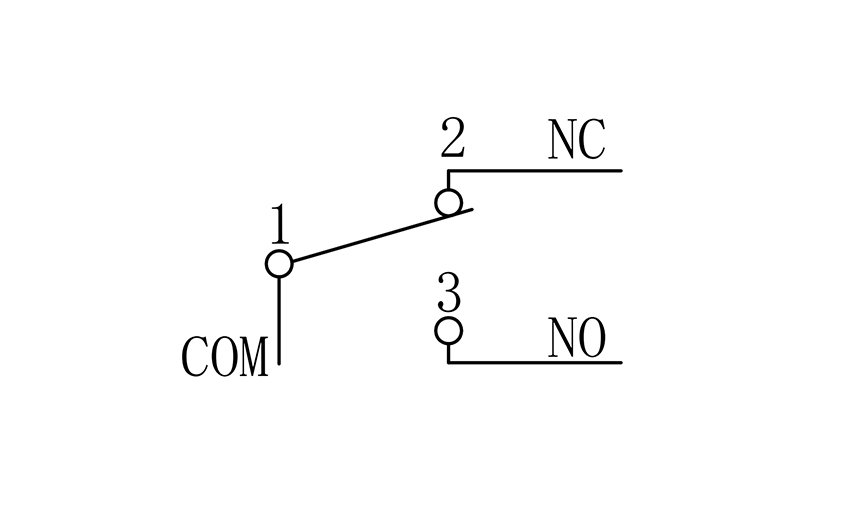

  • Circuit Code:SPDT/SPST-NO/SPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Rating
    P1:0.1A 125/250VAC, 0.1A 30VDC
    05:5(2)A 125/250VAC,5A 30VDC
  • Operating Frequency
    Electrical:10~30 cycles/minute
    Mechanical:120 cycles/minute
  • Contact Resistance(Initiative)
    With terminals type:≤100mΩ
    With wire type:≤200mΩ （500mm） ß 3 ß: VD
  • Insulation Resistance (at 500VDC):≤100MΩ(DC500V)
  • Voltage Resistance
    Between terminals:AC, 500V, 50/60HZ, 1 min
    Between terminals and uncharged metal parts:AC, 1000V, 50/60HZ, 1 min
  • Service Life
    Electrical:50,000 cycles
    Mechanical:200,000 cycles(IP67) 2000,000 cycles(IP40)
  • Storage Temperature:”-40℃-+85℃
  • Storage Humidity:95%RH Max

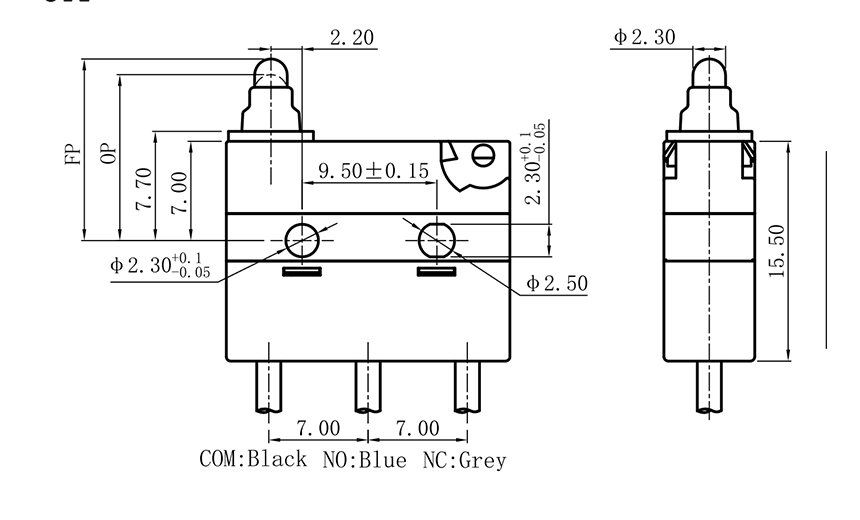

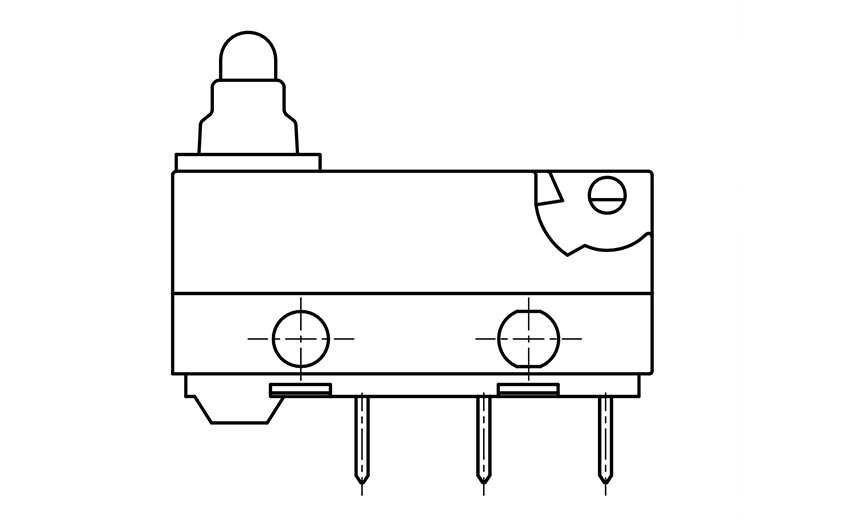

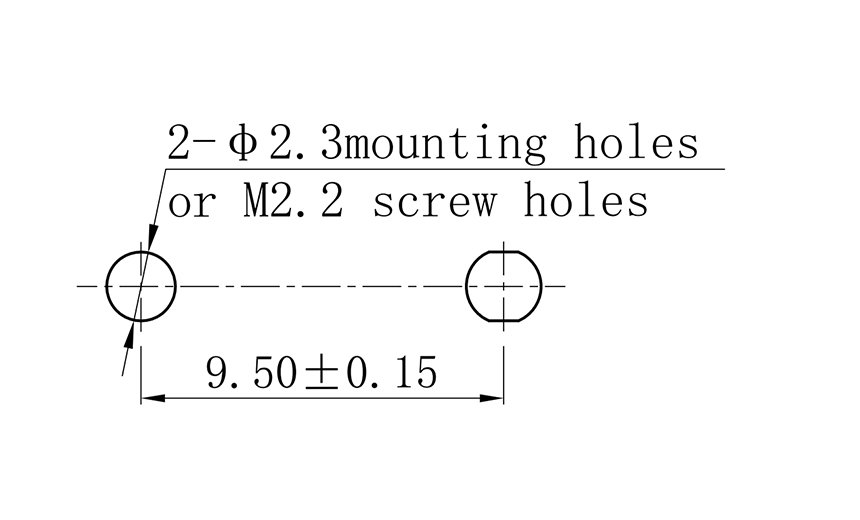

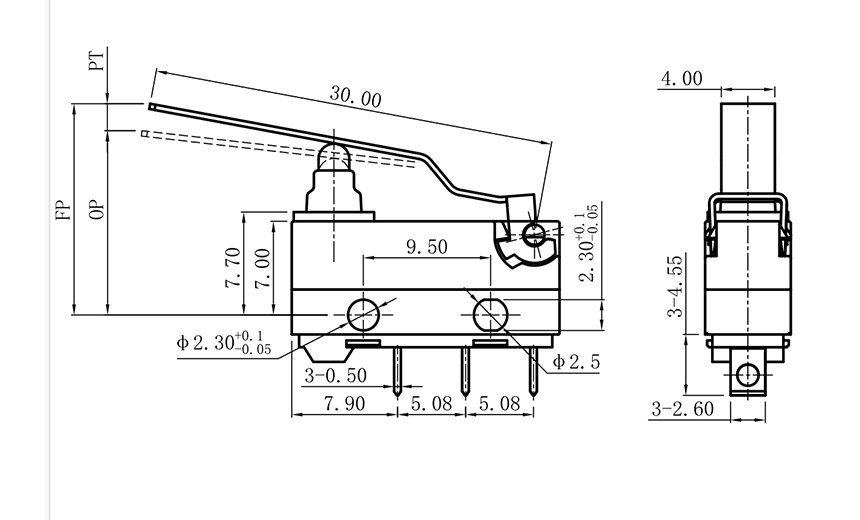

Product Drawing of Mini Micro Switch G9A/B
