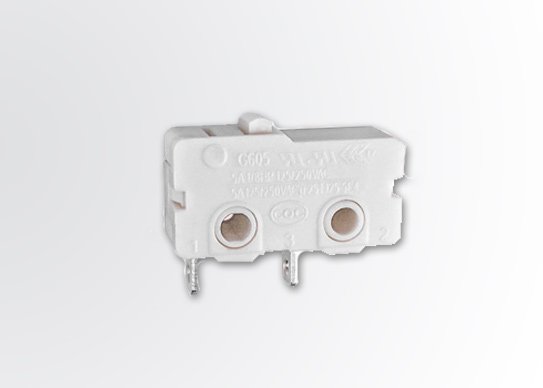

Mini Micro Switch G6
With much smaller dimensions compared to that of normal switches, Unionwell G6 Series mini micro switches are featured with several innovations in construction design– the adoption of thermoplastic atuating button and case, stainless spring, copper alloy blade, and optional silver or gold crosspoint contacts. The rating current load can vary from 0.1 A up to 12A. It is obviously the best choice for applications in kitchen appliances, automobile, and also valve control.
Place of Origin:Guangdong, China (Mainland)
- Brand Name:Unionwell
Model Number:G6 Series
- Operation Force:50gf/100gf/150gf/250gf/350gf
- Terminal Type:Solder/PCB/Quick Connect
- Lever Type:No Lever/Hinge/Simulated Roller/Roller
- Circuit Code:SPDT/SPST-NO/SPST-NC
- Certifications:ENEC, UL/cUL, CQC
OEM/ODM:Available
Rating
P1/P11/P12:ENEC: 0.1A,125/250V 48VDC 5EA
UL: 0.1A,125/250V 48VDC
Gold Plated Contact Optional
05/051/052:ENEC: 5A,125/250VAC
UL: 5A, 1/8HP 125/250VAC
10/101:ENEC: 10(2)A,125/250VAC μ 25T125
UL: 10.1A, 1/4HP 125/250VAC
Note: Only with ”OF”over ”250gf”
12:ENEC: 12(6) A,125/250VAC μ 40T125
UL: 12A, 125/250VAC
Note: Only with 350gf OF- Operating Frequency
Electrical:10-30 cycles/minute
Mechanical:120 cycles/minute - Contact Resistance(Initiative ):100mΩ Max (without wire type)
- Insulation Resistance (at 500VDC):100mΩ Min
- Dielectric strength:AC, 1,000RMS(50-60HZ)
- Operating Temperature:-25°C~+125°C
- Storage Humidity:85% RH Max
- Life Expectancy
Electrical:10,000-50,000 cycles (depending on specific model selection)
Mechanical:1,000,000 cycles
