Mechanical Keyboard Switch GT04

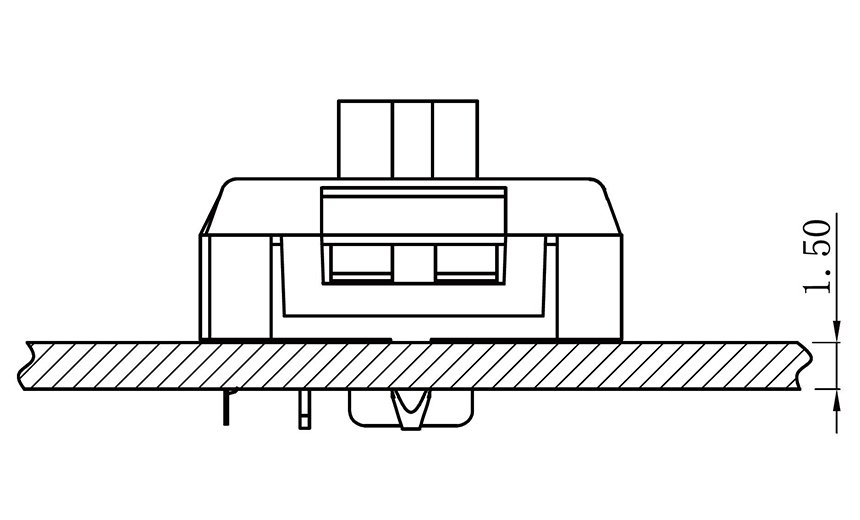

  • Ultra-thin profile, 0. 31 inches (7. 8mm) measuring from PCB (no keycap)
  • Choices of touch textures: Linear, Soft tactile
  • PCB pin
  • Long life to 20 Million operation cycles
  • 12VAC/DC Maximum
  • Current Rating: lOmA
  • Insulation Resistance<100MQ Under 100VDC
Inquiry
PDF download

Specifications of Mechanical Keyboard Switch GT04

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:GT04

  • Electrical
    Characteristics Rating:12V DC/AC Max.10mA AC/DC Max.
    Contact Resistance:200mΩMax. (25mΩtypical) (Initial Value)
    Insulation Resistance:100MΩ Min.
    Voltage Resistance:AC 100V (50/60Hz) 1Minute
    Electrical life Over:20,000,000 Cycles (Load)
    Bounce Time:5msec Operation speed at ＜400mm/sec
  • Parameters
    Operating Force:See Detailing Spec
    Pre-travel:1.5±0.4mm
    Total Travel:2.5±0.4mm
    Mechanical Life Over:20,000,000cycles (No Load)
    Operating Temperature Range:-40°C~+80°C
    Ambient Humidity:≤85%RH

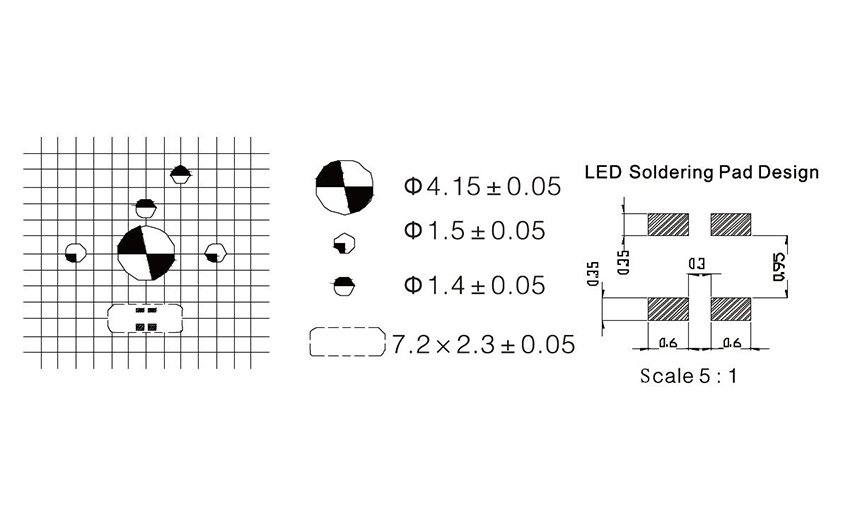

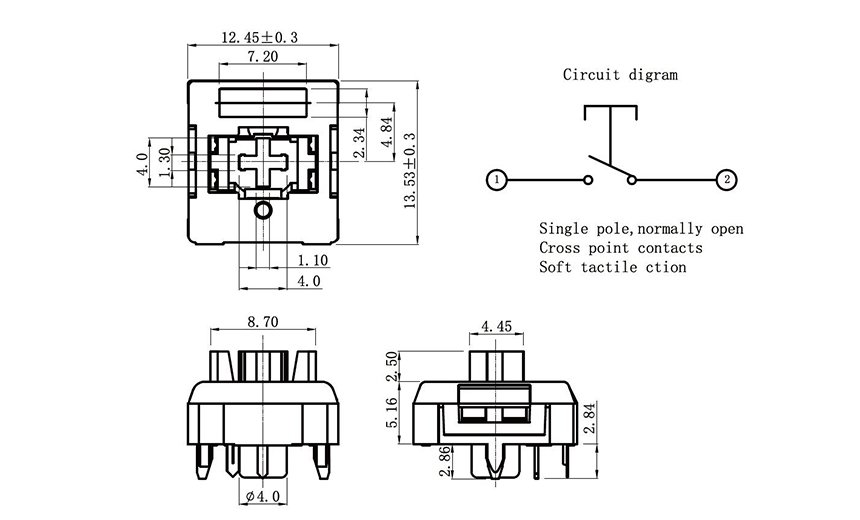

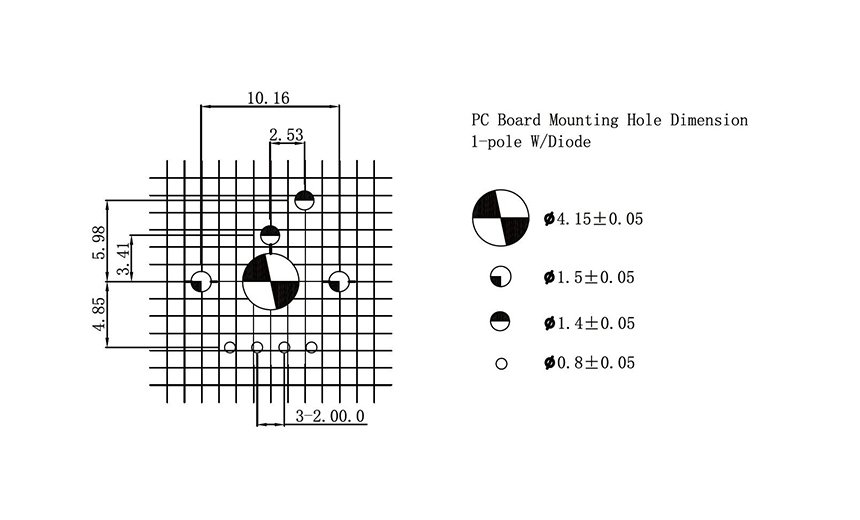

Product Drawing of Mechanical Keyboard Switch GT04
