Mechanical Keyboard Switch GT02

  • Desktop profile, 0.60 inches (15. 2mm) from PCB (no keycap)
  • Choices of touch textures: linear, soft tactile, click tactile

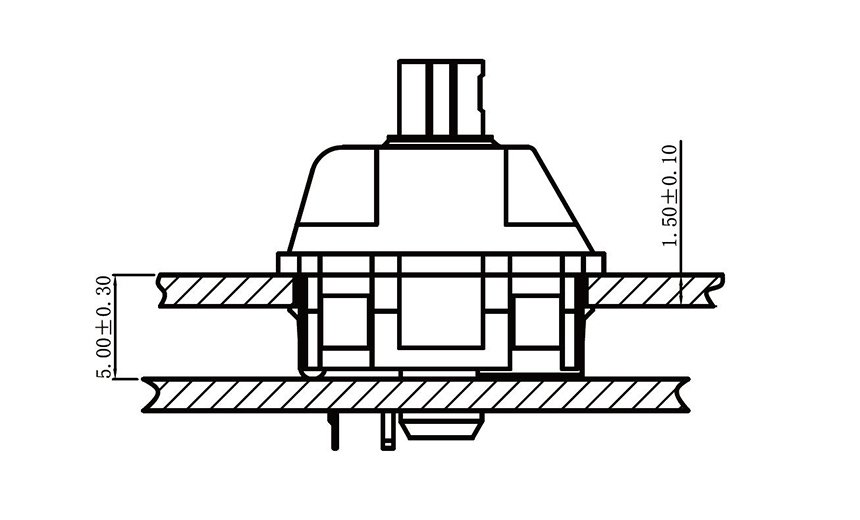

  • PCB or frame mount
  • Long life to 80 million operation cycles

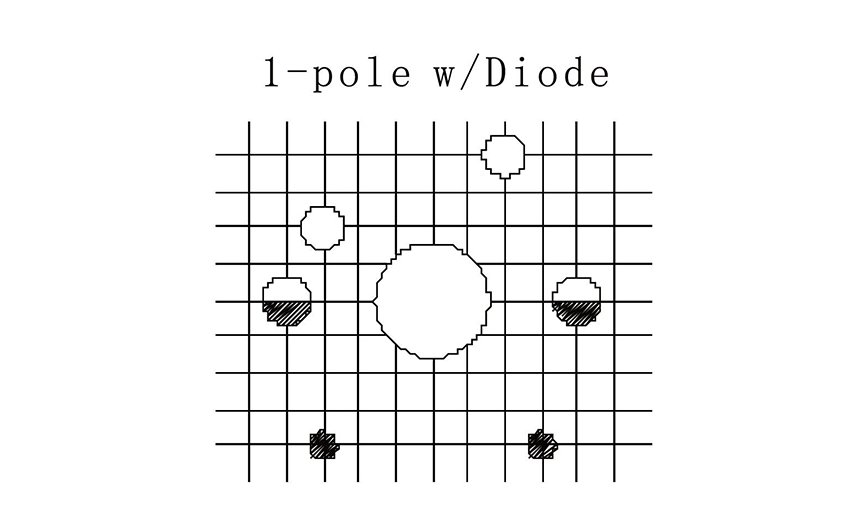

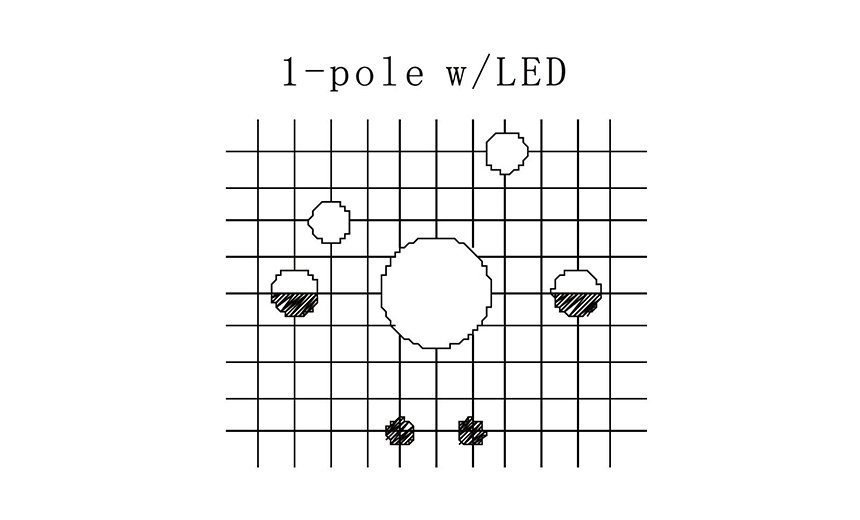

  • LED, diode, or jumper option
  • 12V AC/DC maximum
  • Current Rating: lOmA
  • Insulation Resistance:<100MQ under 100VDC
Inquiry
PDF download

Specifications of Mechanical Keyboard Switch GT02

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:GT02

  • Electrical
    Characteristics Rating:12 VDC/AC max.10mA AC/DC max
    contact Resistance:200mΩMax（25mΩtypical) (Initial Value)
    Insulation Resistance:100MΩMin
    Voltage Resistance:AC 500V (50/60Hz) 1Minute
    Electrical life Over:80,000,000cycles (Load)
    Bounce Time:5msec Operation speed at ＜400mm/sec

  • Terminal Type:Solder/PCB

  • Parameters
    Operating Force:See Detailing Spec
    Pre-travel:2.0±0.6mm
    Total Travel:4.0±0.4mm
    Mechanical Life Over:80,000,000cycles (No Load)
    Operating Temperature Range:-40°C~+80°C
    Ambient Humidity:≤85%RH

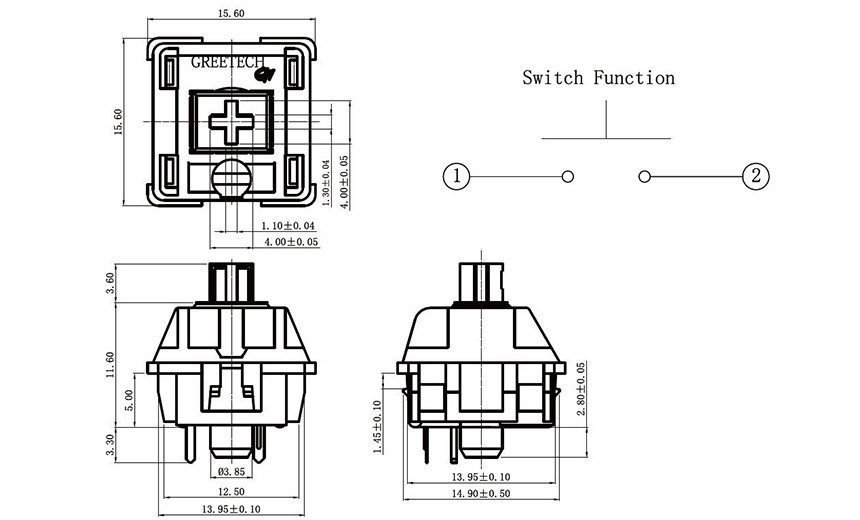

Product Drawing of Mechanical Keyboard Switch GT02
