Place of Origin:Guangdong, China (Mainland)

Brand Name:Unionwell

Model Number:G12 Series

Operating Force ( at pin plunger ):70gf/120gf/100gf/170gf/105gf/140gf/150gf/180gf/230gf/250gf/ 370gf/430gf/620gf

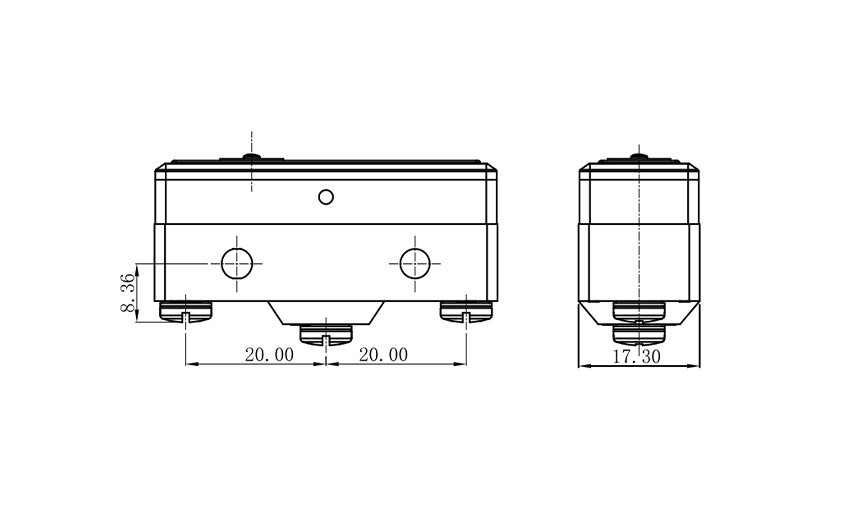

Terminal Type:Screw terminals/Solder terminals/other

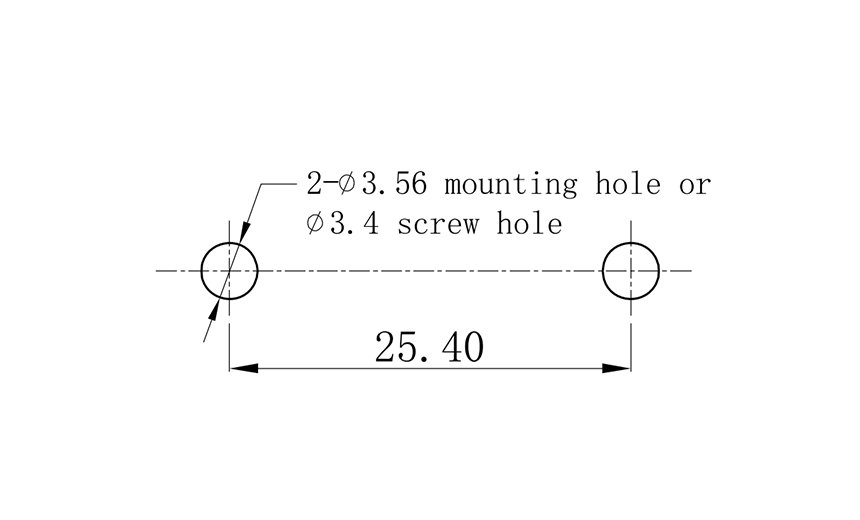

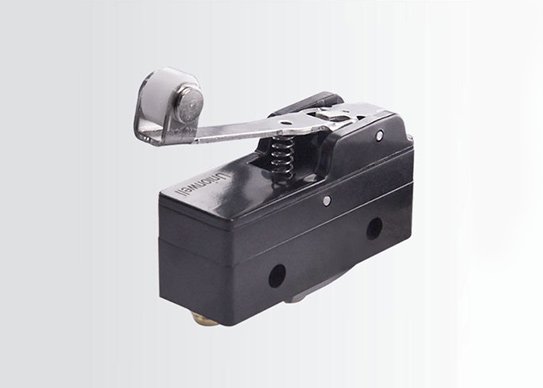

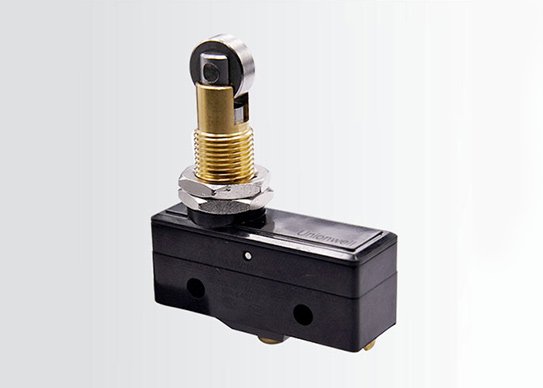

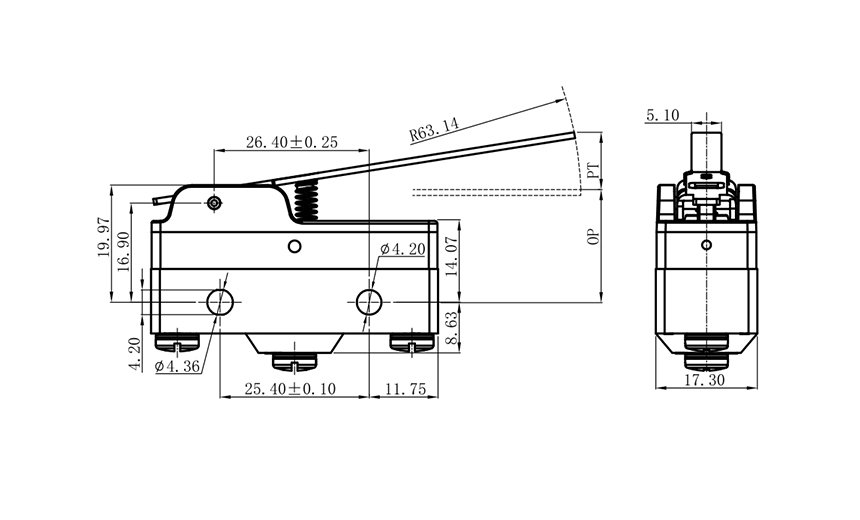

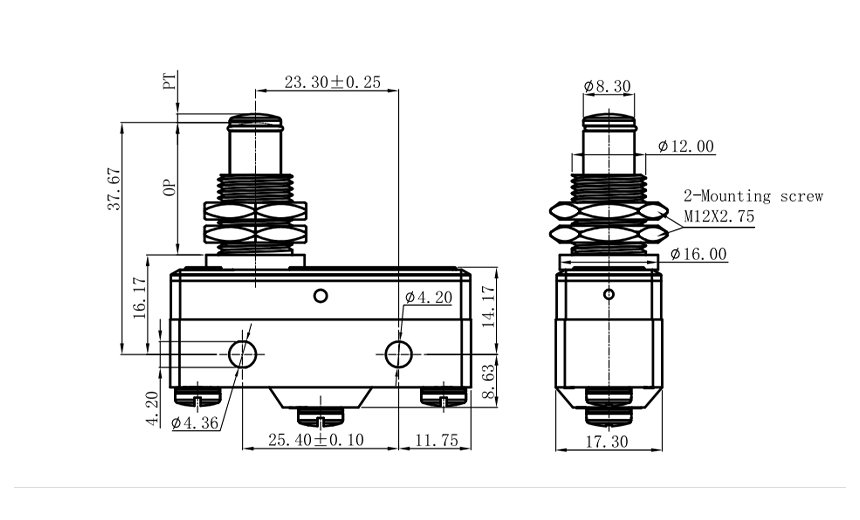

Lever Type:Pin plunger/Spring pin plunger/Panel mounting plunger/Panel mounting roller plunger/Panel mounting cross roller plunger/Swing lever/short swing lever/Roller swing lever/short swing lever/Spring straight lever/Spring roller lever/other

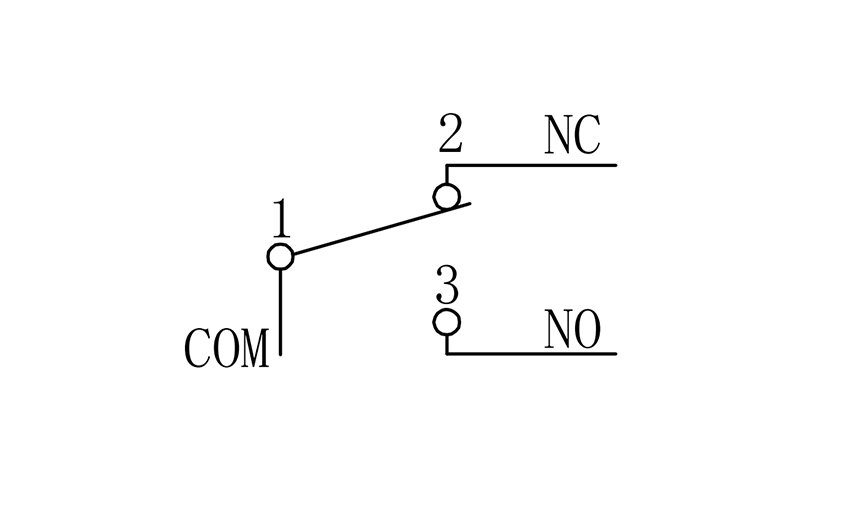

Circuit Code:SPDT/SPST-NC/SPST-NO

Certifications:ENEC, UL/cUL, CQC

OEM/ODM:Available

Rating
16A:
ENEC/CQC
16A 125/250 or 480VAC 1/8HP 125VAC 1/4HP 250VAC 0. 5A 125VDC 0. 25A 250VDC
UL/ cUL
16A 125/250VAC 5E4 µ 40T85

22A:
ENEC/CQC
22A 125/250 or 480VAC 1/4HP 125VAC 1/2HP 250VAC 0. 5A 125VDC 0. 25A 250VDC
UL/cUL
22A 125/250VAC 5E4 µ 40T85

26A:
ENEC/CQC
26A 125/250 or 480VAC 1/4HP 125VAC 1/2HP 250VAC 0. 5A 125VDC 0. 25A 250VDC
UL/ cUL
26A 125/250VAC 5E4 µ 40T85

Operating Frequency
Electrical:10～30 cycles/min
Mechanical:240 cycles/min

Contact Resistance (Initiative Value):50mΩ Max

Insulation Resistance (at 500VDC):100MQ Min (at500VDC)

Dielectric strength
Between Terminals:1500VAC 50/60Hz 1min

Between Terminals and Housing:2500VAC 50/60Hz 1min

Storage Temperature:-40° C”+85° C

Storage Humidity:85%RHMax

Life Expectancy
Electrical:50, 000 cycles or 100, 000 cyclesDepends on part No.
Mechanical:10, 000, 000 cycles

Unit Net Weight:Approx60g (Drip-proof panel mounting type)
