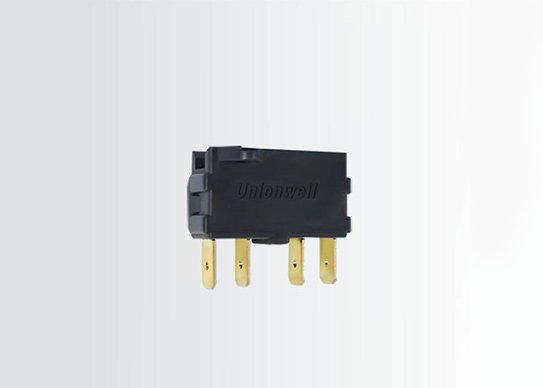

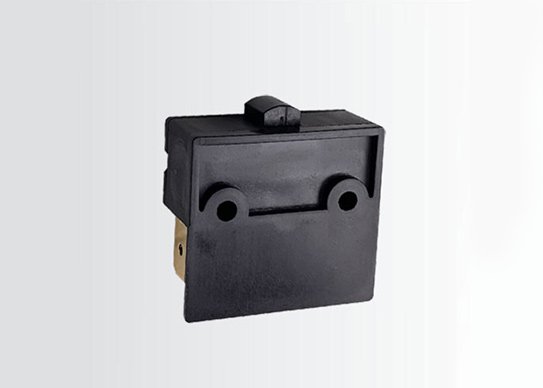

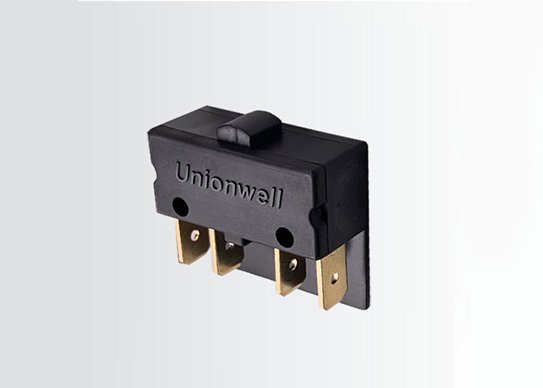

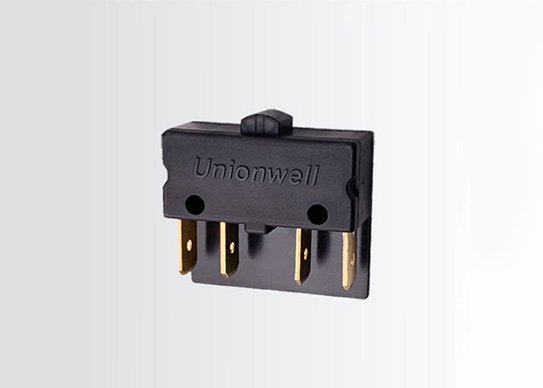

DPDT Micro Switch G21

  • Long life and high reliability

  • DPDT double-break circuit

  • Widely used in industry control

Inquiry
PDF download

Specifications of DPDT Micro Switch G21

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:G21

  • Max Operating Force (at pin plunger):250gf

  • Terminal Type:Solder/PCB

  • Lever Type:No Lever/Others

  • Circuit Code:SPST-NO/SPST-NC

  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Rating DC14: 6A 12VDC; 2A 24VDC 0.6A 55VDC
  • Operating Frequency
    Electrical:60 cycles/minute
    Mechanical:180 cycles/minute
  • Contact Resistance(Initiative):100mΩMax
  • Insulation Resistance (at500VDC):100MΩ Min
  • Service Life
    Electrical:1000,000 cycles
    Mechanical：3000,000 cycles
  • Storage Temperature:-30°C 〜+85°C
  • Storage Humidity:95%RH Max
  • Operating Temperature Range:-30°C 〜+65°C

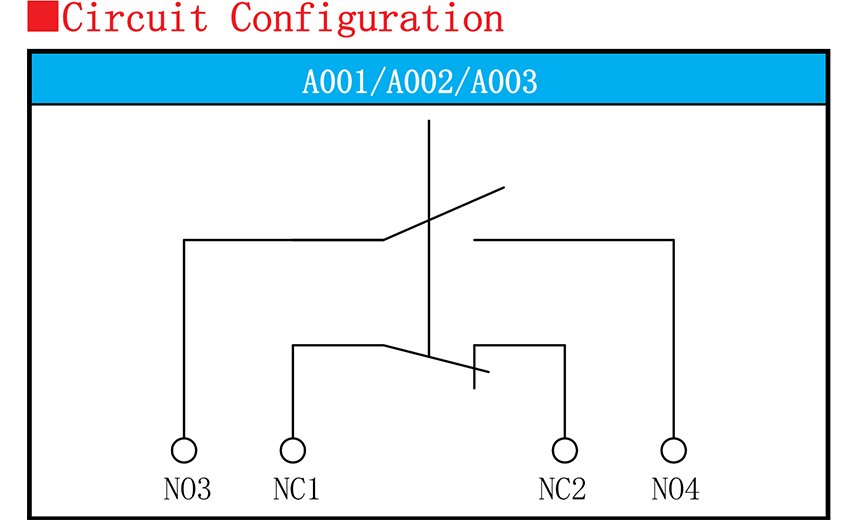

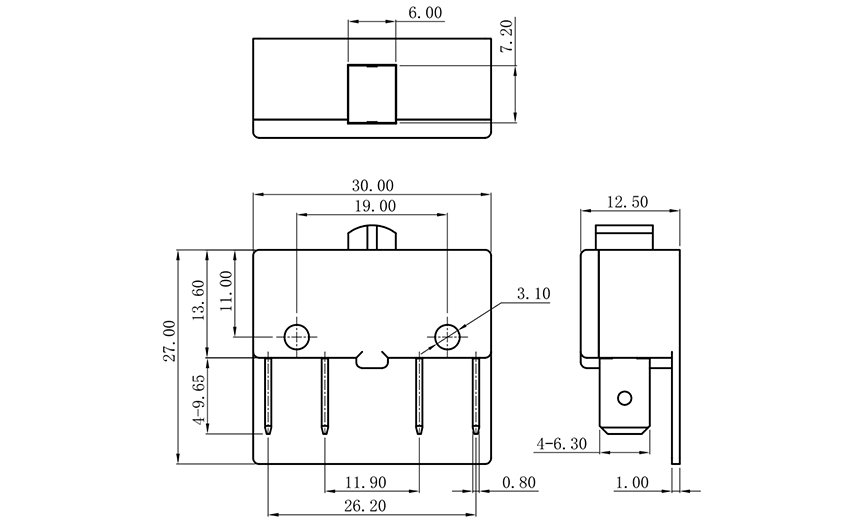

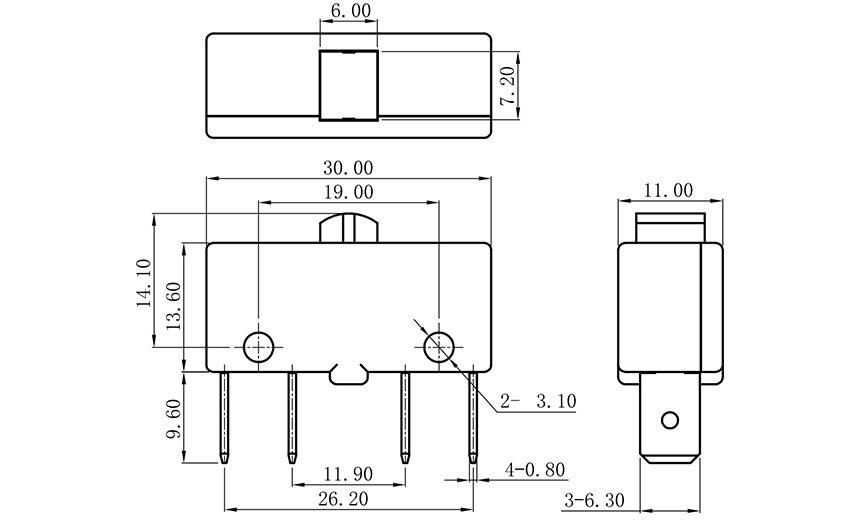

Product Drawing of DPDT Micro Switch G21
