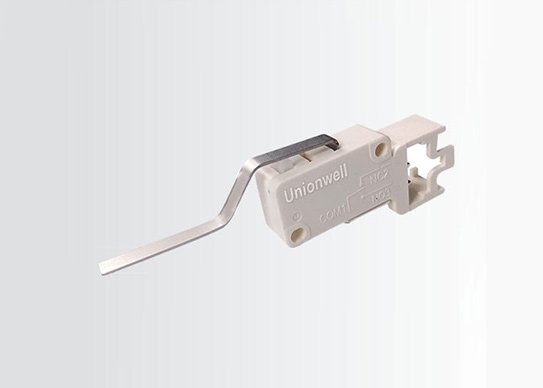

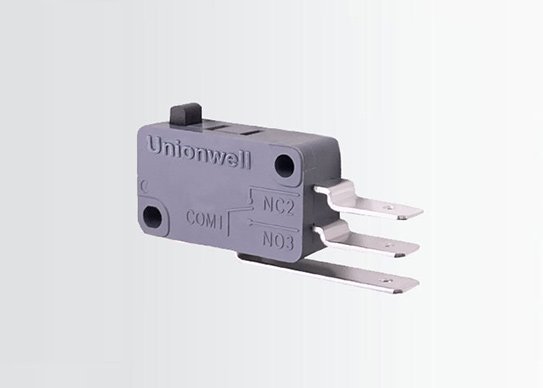

Dishwasher Micro Switch G5T16

  • Exclusive design for dishwasher door status sensing and float valve water level detecting.
  • Compact structure, small contact gap, snap action mechanism, high sensitivity, and short operating travel
  • Durable electrical and mechanical life and high reliability
  • Global safety certifications granted
  • Variety of terminals and levers
  • Multiple choices of operating force 100gf~400gf
  • Wide range of operating temperatures (-25° C~+125° C)
  • With PTI grades (175V, 250V, 600V) for selection
Inquiry

Dishwasher Micro G5T16 Switch Specifications

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell
  • Model Number:G5T16
  • Max Operating Force (at pin plunger): 200gf
  • Terminal Type: Mold Lead Wires/Solder/PCB/Fork Shape
  • Lever Type: No Lever/Hinge/Leaf/Simulated Roller/Roller/Special Design

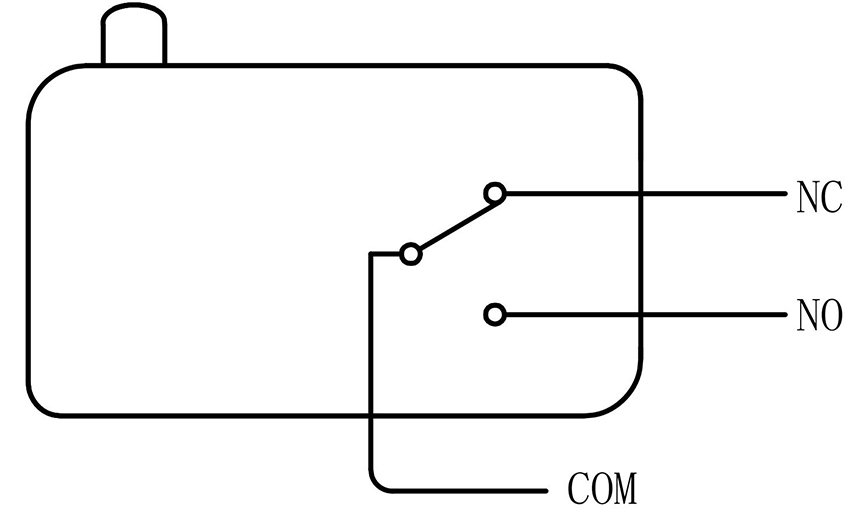

  • Circuit Code: SPDT/SPST-NO/SPST-NC
  • Certifications:ENEC, UL/cUL, CQC

  • OEM/ODM:Available

  • Operating speed: 0.1imn -1m/s(Related with actuator forms)
  • Operating frequency:Mechanical 60 cycles/min; Electrical 15 cycles/min.
  • Insulation Resistance: ≥100MΩ（500 VDC）
  • Contact Resistance (Initial Value): ≤100mΩ
  • Voltage Resistance
    between terminals: AC1000V,50/60Hz,1min.
    Between electrified metal parts and housing, and between terminals and unelectrified metal parts: AC1500V,50/60Hz,1min.
  • Vibration Durability: 10-55Hz Double amplitude 1.5mm
  • Shock Resistance
    Destruction: OF＞1.0N: 1000m/s2 (approx. 100G) max.
    OF≤1.0N: 400m/s2 (approx. 40G) max.
    Destruction: OF＞1.0N: 200m/s2 (approx. 20G) max.
    OF≤1.0N: 100m/s2 (approx. 10G) max.
  • Service Life
    Mechanical: ≥ 10,000,000 cycles or 1,000,000 cycles
    Electrical: ≥50,000 cycles or 100,000 cycles
  • Unit Net Weight:Approx. 6.2g (No Lever)

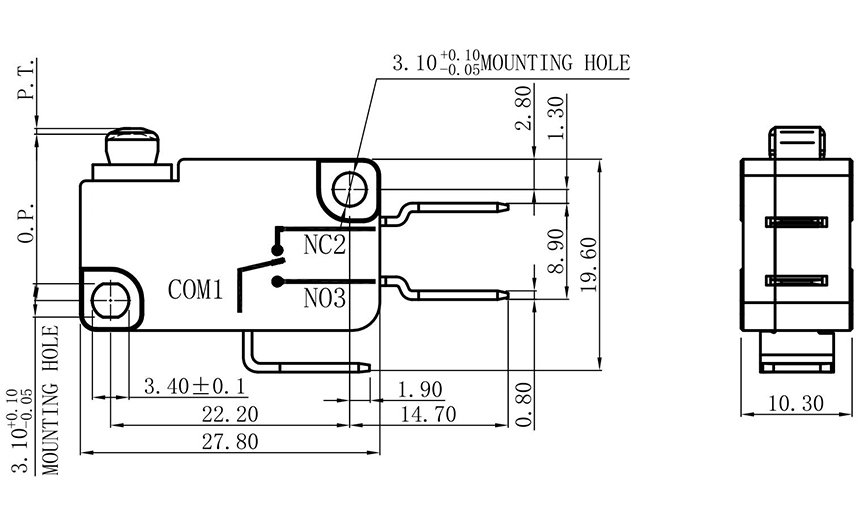

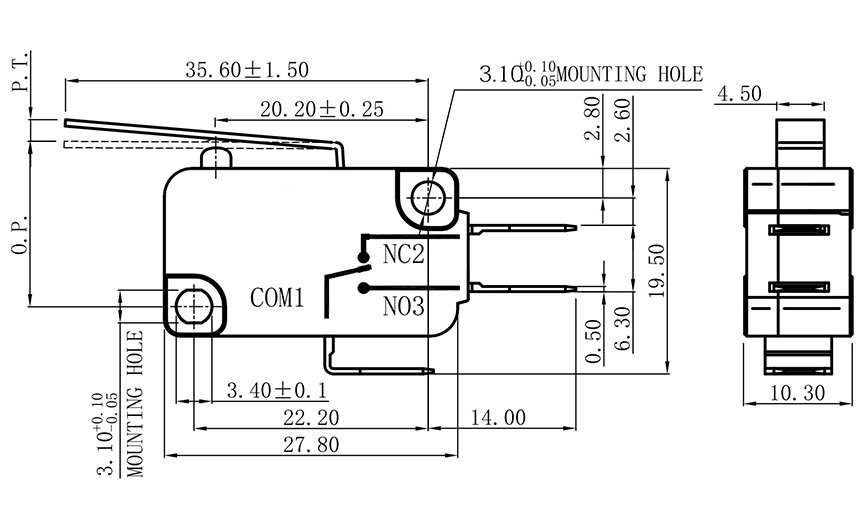

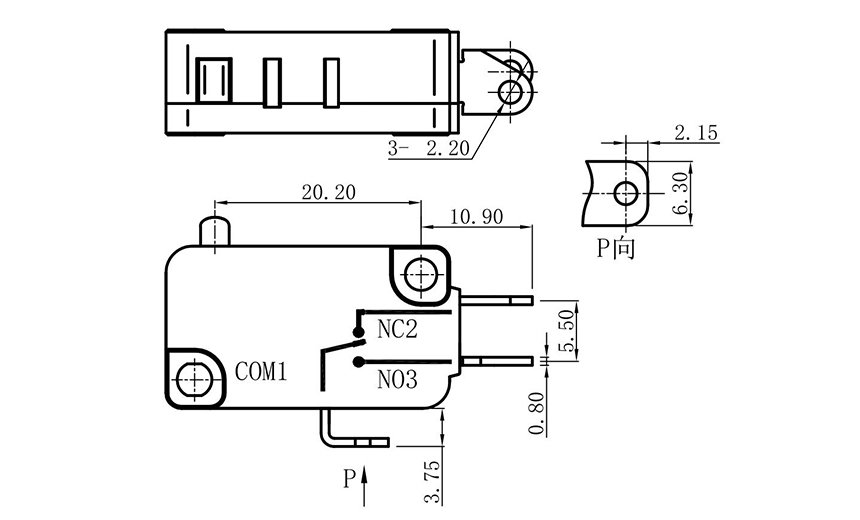

Dishwasher Micro G5T16 Switch Drawing

Dishwasher Micro G5T16 Switch Related Applications

The micro G5T16 switch is commonly used in dishwasher machines and other home appliances. It is a type of snap-action switch that is designed to quickly turn the dishwasher on or off when the door is opened or closed.

The micro G5T16 switch is a reliable and durable component that is capable of withstanding the high demands of a dishwasher machine. It is known for its long service life and is commonly used in a wide range of other home appliances as well. Welcome to Unionwell’s preferred micro switch factory to know more.
