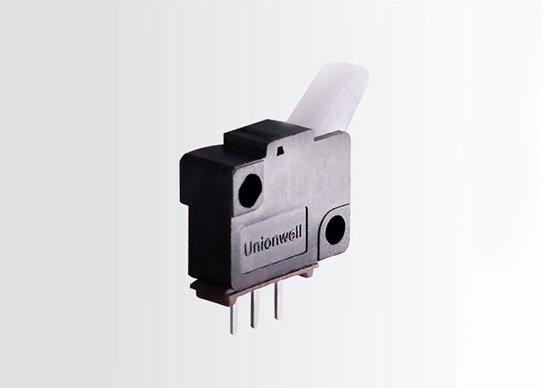

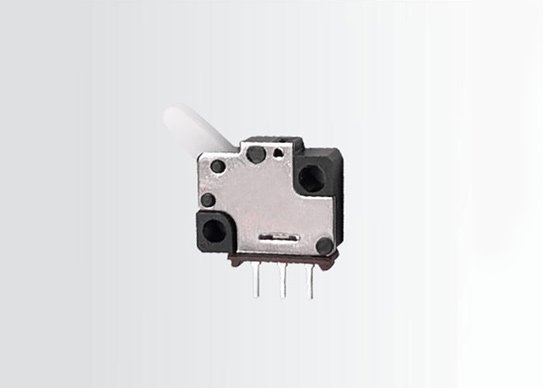

Detector Micro Switch GT01

  • Small size and compact configuration

  • High durability and excellent reliability

  • Precise movement mechanism with a lightweight

  • Optional different levels of operating force

Inquiry
PDF download

Specifications of Detector Micro Switch GT01

  • Place of Origin:Guangdong, China (Mainland)

  • Brand Name:Unionwell

  • Model Number:GT01

  • Electrical
    Characteristics Rating:0.1A 12VC; 50μΑ
    Contact Resistance:100 mΩ Max. (Initial Value)
    Insulation Resistance:50MΩ Min.
    Voltage Resistance:100VAC (50/60Hz) 1Minute
    Electrical life:10,000 Cycles (Min)
  • Parameters
    Operating Force:See Detailing Spec
    Mechanical Life:100,000 Cycles (Min)
    Operating Temperature Range:-25°C~+80°C
    Operating Humidity:≤85%RH
    Solder Ability:260°C ± 5 °C 3s ± 1s

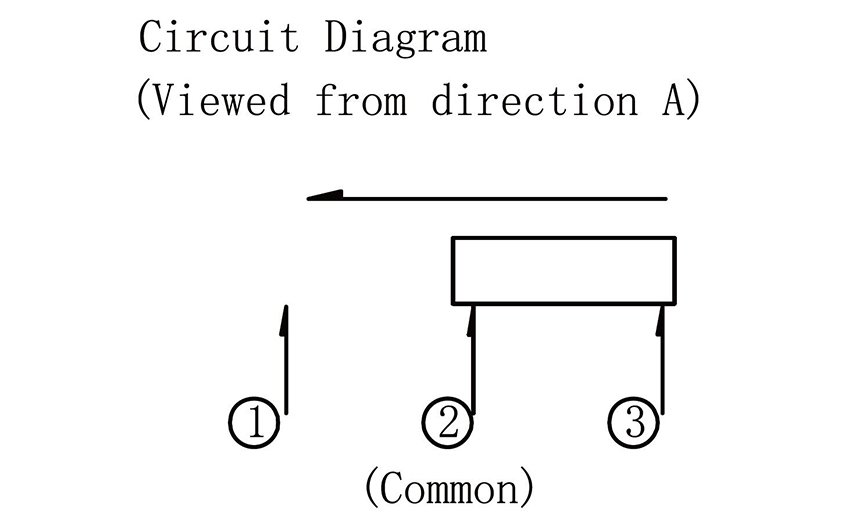

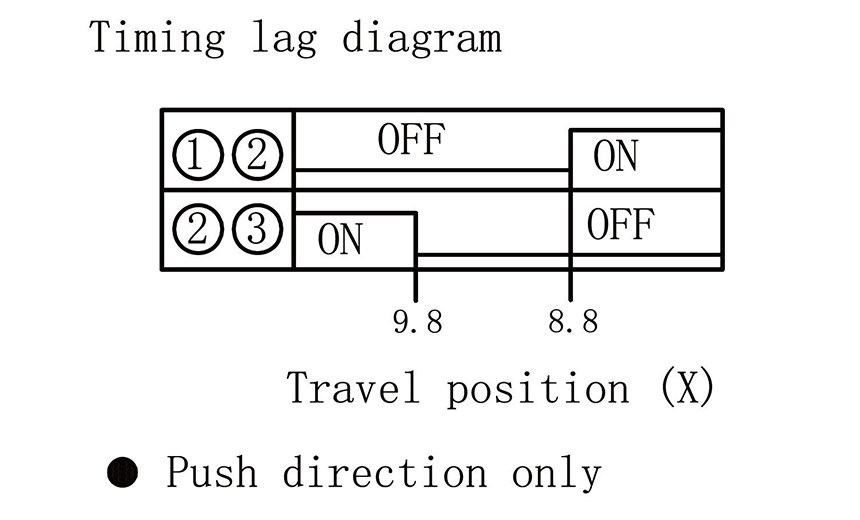

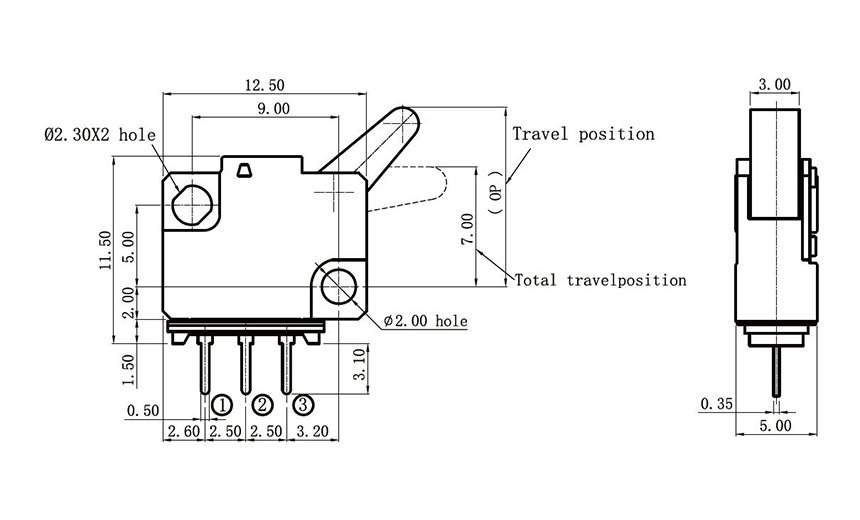

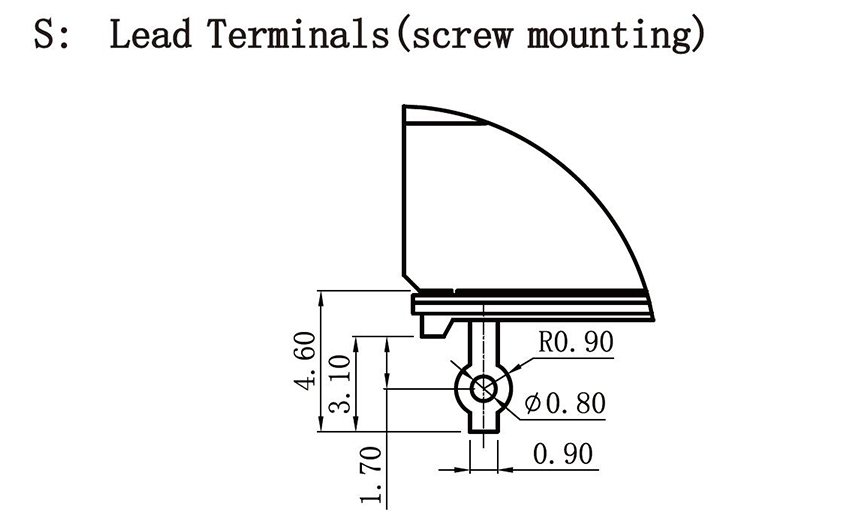

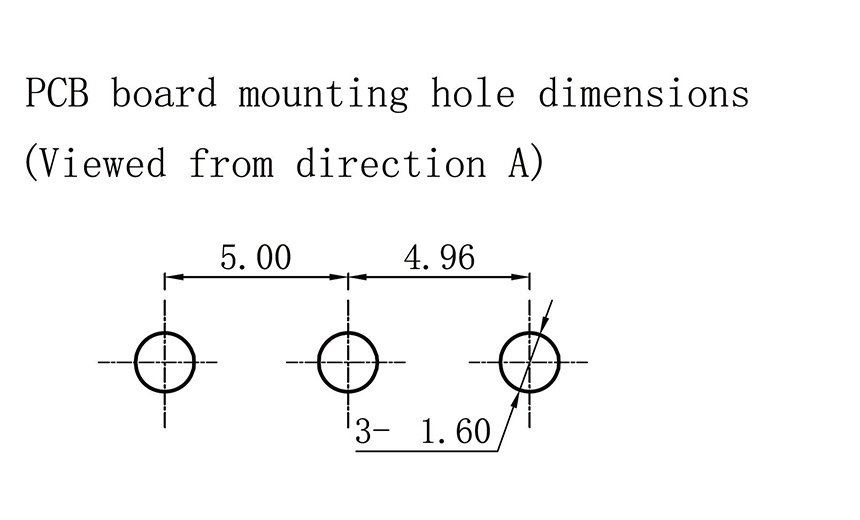

Product Drawing of Detector Micro Switch GT01
