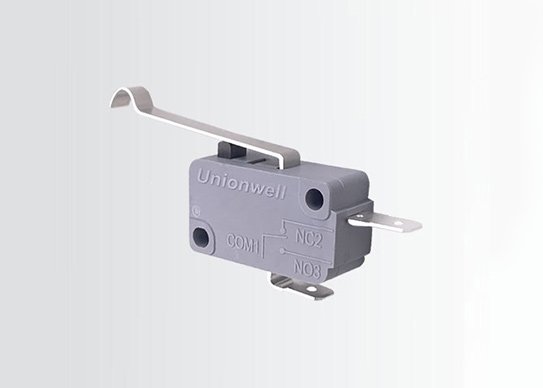

Basic Micro Switch G5T16
- Tight structure of the case, small contact clearance, snap action, high sensitivity, and small operating travel
- Durable electrical and mechanical life and high reliability
- Global safety certifications granted
- Variety of terminals and levers
- Multiple choices of operating force 100gf~400gf
- Wide range of operating temperatures (-25° C~+125° C)
- With PTI grades (175V, 250V, 600V) for selection
- Widely used in appliances, electronic equipment, automatic machines, communication equipment, car electronics, apparatus and instruments, power tools, etc.
Place of Origin:Guangdong, China (Mainland)
- Brand Name:Unionwell
- Model Number:G5T16
- Max Operating Force (at pin plunger)：100gf/200gf/300gf/400gf
- Operating Temperature：-25°C~+125°C
- Terminal Type：Quick Connect/PCB/Solder/Screw/Rast-5/Rast-2.5
- Lever Type：No Lever/Hinge/Simulated Roller/Roller/Special
- Circuit Code：SPDT/SPST-NO/SPST-NC
Certifications:ENEC, UL/cUL, CQC
OEM/ODM:Available
- Operating Linear Speed：0.1~1m/s (up to the actuating method)
- Operating Frequency：Mechanical 60 cycles/min; Electrical 15 cycles/min
- Insulation Resistance： ≥100MΩ（500 VDC）
- Contact Resistance (Initial Value)： ≤100mΩ
- Voltage Resistance
between terminals：AC1000V,50/60Hz,1min.
Between electrified metal parts and housing, and between terminals and unelectrified metal parts：AC1500V,50/60Hz,1min. Vibration Durability：10-55Hz Double amplitude 1.5mm
- Shock Resistance
Destruction: OF＞1.0N: 1000m/s2 (approx. 100G) max.
OF≤1.0N: 400m/s2 (approx. 40G) max.
Destruction: OF＞1.0N: 200m/s2 (approx. 20G) max.
OF≤1.0N: 100m/s2 (approx. 10G) max. - Service Life
Mechanical：≥ 10,000,000 cycles or 1,000,000 cycles
Electrical：≥50,000 cycles or 100,000 cycles - Unit Net Weight：Approx. 6.2g (No Lever)
