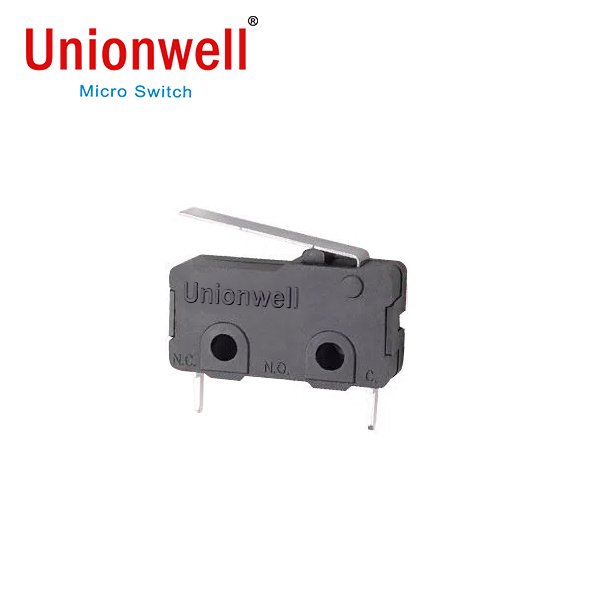

G6 Miniature Micro Switch Description
The G6 Miniature Micro Switch series is small in size and high quality, widely used in household appliances and auto parts such as Timmer, Pump, Computer, Air conditioners, humidifiers, pushrods, Tubular moto, and so on. Because the G6 series are wide applications on the market, they have many different kinds of parameters for customer choice. For example, there are 0.1A, 5A, 10A, and 12A for the current options. Besides, silver contact and gold contacts are also available too. As well as the terminals, levers, operating force, and circuit code.
This product not only has global safety approvals to make sure quality but can provide a customized design for buyer requirements as well.
G6 Miniature Micro Switch Parameters
| Rating | P1/P11/P12 | ENEC:0.1A,125/250V 48VDC 5EA |
| UL:0.1A,125/250V 48VDC | ||
| Gold Plated Contact Optional | ||
| 05/051/052 | ENEC:5A,125/250VAC 5(3)A 125/250VAC 5A 30VDC | |
| UL:5A, 1/8HP 125/250VAC | ||
| 10/101 | ENEC:10(2)A,125/250VAC μ 25T125 | |
| UL:10.1A, 1/4HP 125/250VAC | ||
| Note:250gf/Only With “OF “over “250gf” | ||
| 12 | ENEC:12(6)A,125/250VAC μ 40T125 | |
| UL:12A,125/250VAC Note:350gf/Only With 350gf OF |
||
| Operating Frequency | Electrical | 10-30 cycles/minute |
| Mechanical | 120 cycles/minute | |
| Contact Resistance(Initiative ) | 100mΩ Max | |
| Insulation Resistance (at 500VDC) | 100MΩ Min | |
| Dielectric Strength | AC 1,000V RMS(50-60HZ) | |
| Storage Temperature | -25℃~+125℃ | |
| Storage Humidity | 85% RH Max | |
| Service Life | Electrical | 10,000-50,000 /cycles(Depend on part No.) |
| Mechanical | 1,000,000/cycles | |
